2,977 in stock
#C53953985
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.54 | ₹133.54 |
| 10+ | ₹108.02 | ₹1,080.20 |
| 30+ | ₹95.15 | ₹2,854.50 |
| 100+ | ₹82.49 | ₹8,249.00 |
| 500+ | ₹74.90 | ₹37,450.00 |
| 1,000+ | ₹71.10 | ₹71,100.00 |
1 × ₹133.54
₹133.54
excl. GST
₹157.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

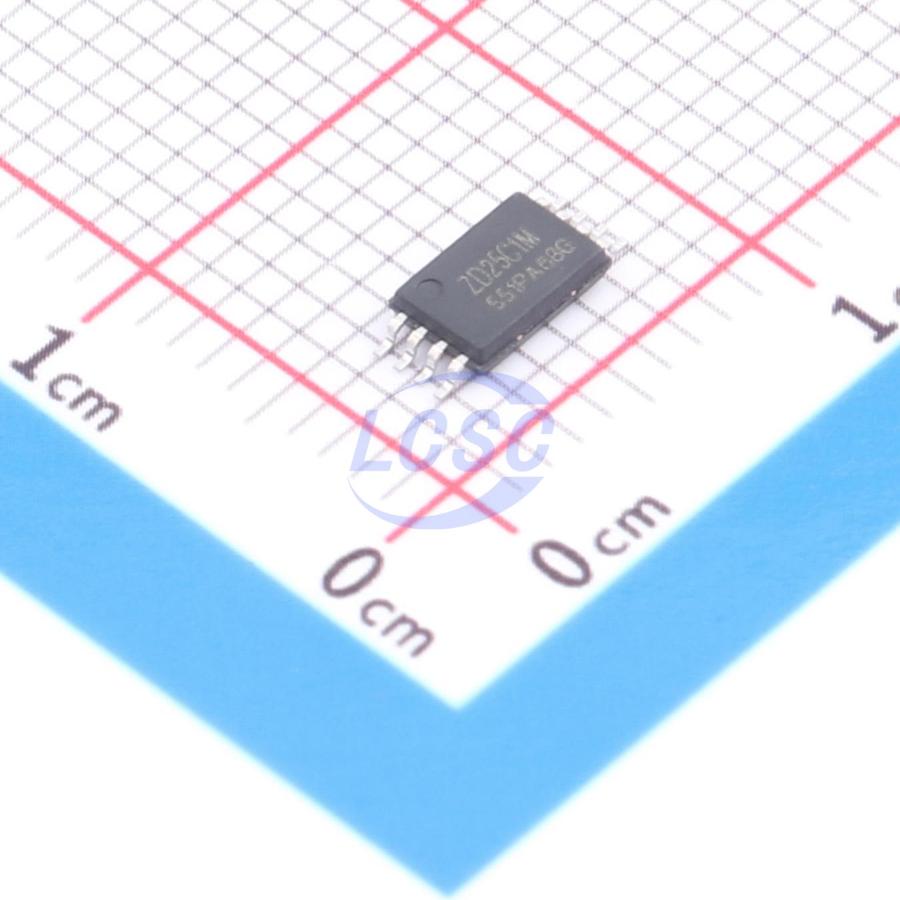

ZD25C1MA-XGMT
₹133.54 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Memory Size
- 1Mbit
- Voltage - Supply
- 1.7V~5.5V;10mA
- Clock Frequency
- 20MHz
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 3ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 2,000,000 Cycles
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
ZD25C1MA is a serial EEPROM device accessed via SPI bus. The device is designed to operate over a supply voltage range of 1.7V to 5.5V, with a maximum transfer rate of 20MHz. The operating temperature range is -40°C to +105°C. The serial EEPROM memory is organized as 512 pages of 256 bytes each, totaling 131072×8 bits. The device provides users with an additional 256-byte identification page for storing sensitive application parameters. Once application data has been written to the identification page, the page can be permanently locked in read-only mode. The device also features a separate memory block containing a factory-programmed 128-bit unique ID. This block is read-only and can be accessed by issuing a specific read command. ZD25C1MA is available in lead-free green packages: SOP, TSSOP, UDFN, and WLCSP.
Key features
- SPI-compatible
- Supply voltage range: 1.7V to 5.5V
- High-speed clock: 20MHz
- Byte and page (up to 256 bytes) write modes
- Self-timed write cycle (3ms max)
- Block write protection
- Additional 256-byte writable lockable page and 128-bit unique ID
- Endurance: 2,000,000 write cycles; data retention: 200 years; ESD protection (HBM): 6000V
- Operating temperature range: -40°C to +105°C
