Zetta

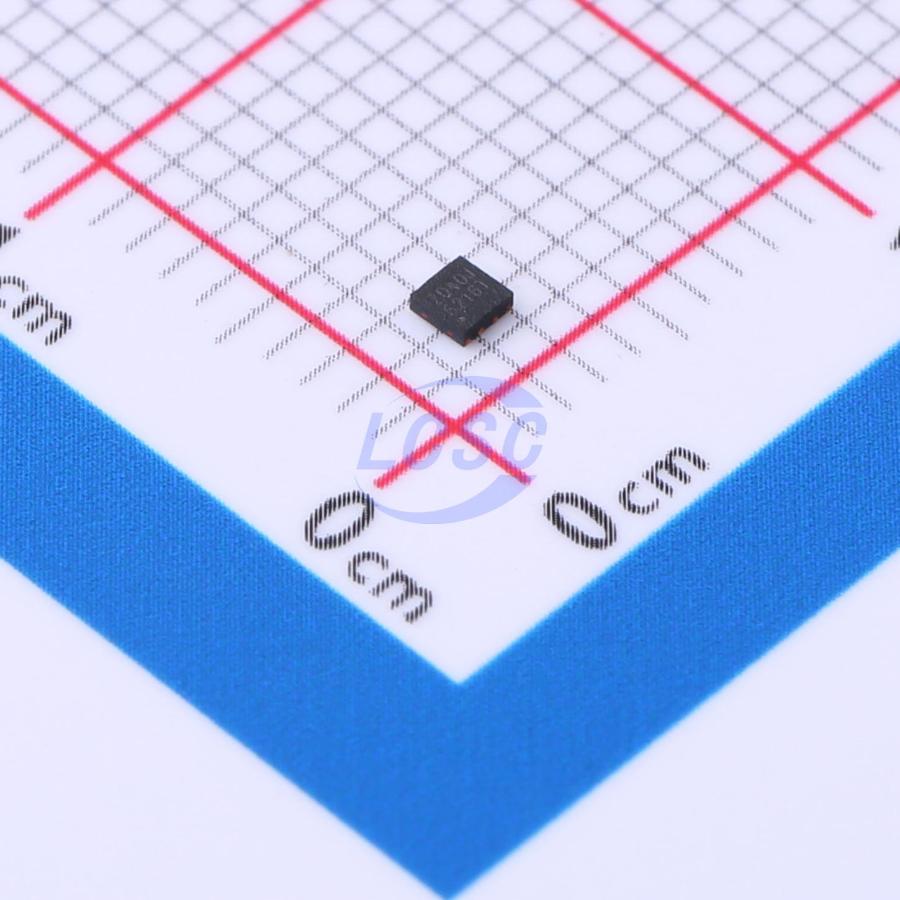

ZD25D40CNJGR
4Mbit 2.7V~3.6V 104MHz SPI USON-8-EP(1.5x1.5) Memory RoHS
USON-8-EP(1.5x1.5)ROHS CompliantActive
Ultra Low Power, 4M-bit Serial Multi I/O Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C3646778
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.55 | ₹107.75 |
| 50+ | ₹17.41 | ₹870.50 |
| 150+ | ₹15.33 | ₹2,299.50 |
| 500+ | ₹13.79 | ₹6,895.00 |
| 3,000+ | ₹11.85 | ₹35,550.00 |
| 6,000+ | ₹11.23 | ₹67,380.00 |
5 × ₹21.55
₹107.75
excl. GST
₹127.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD25D40CNJGR
₹107.75 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 4Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 2.6ms
- Page Programming Time (Tpp)
- 1.1ms
- Standby Supply Current
- 8uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The ZD25D40C (4M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), WP#. The Dual I/O data is transferred with speed of 208Mbits/s.
Key features
- 4M-bit Serial Flash
- 512K-Byte
- 256 Bytes per programmable page
- Standard, Dual SPI
- Standard SPI: SCLK, CS#, SI, SO, WP#
- Dual SPI: SCLK, CS#, IO0, IO1, WP#
- High Speed Clock Frequency
- 104MHz for fast read with 30PF load
- Dual I/O Data transfer up to 208Mbits/s
- Software/Hardware Write Protection
- Write protect all/portion of memory via software
- Enable/Disable protection with WP# Pin
- Top/Bottom Block protection
- Minimum 100,000 Program/Erase Cycles
- 20-year data retention typical
- Fast Program/Erase Speed
- Page Program time: 1.1ms typical
- Sector Erase time: 2.6ms typical
- Block Erase time: 2.6ms typical
- Chip Erase time: 5.2ms typical
- Flexible Architecture
- Uniform Sector of 4K-Byte
- Uniform Block of 32/64K-Byte
- Low Power Consumption
- 0.65uA typical deep power down current
- 8uA typical standby current
- Advanced Security Features
- 128-Bit Unique ID for each device
- 3x512-Byte security registers with OTP locks
- Discoverable parameters (SFDP) register
- Single Power Supply Voltage
- Full voltage range: 2.7~3.6V
- Package Information
- SOP8 (150mil)
- SOP8 (208mil)
- TSSOP8 (173mil)
- USON8 (2*3mm)
