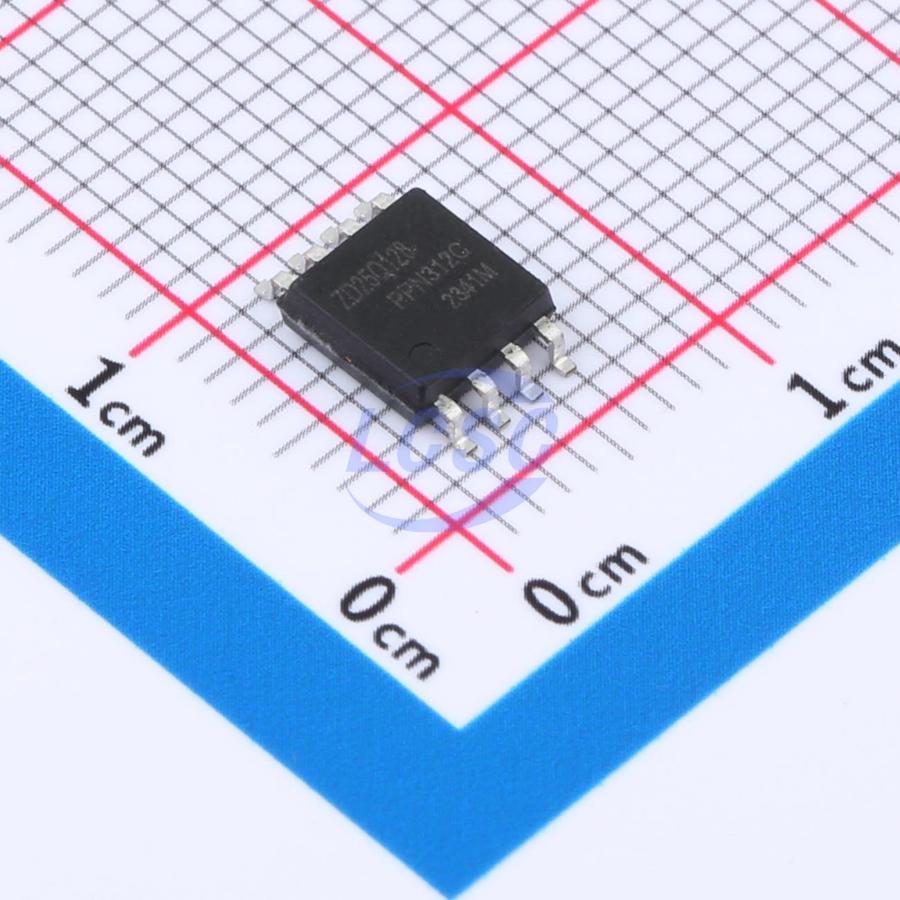

ZD25Q128CSIGT
128Mbit 2.7V~3.6V 133MHz SPI SOP-8-208mil Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,540 in stock
#C19626875
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.92 | ₹149.92 |
| 10+ | ₹122.30 | ₹1,223.00 |
| 30+ | ₹108.58 | ₹3,257.40 |
| 96+ | ₹88.79 | ₹8,523.84 |
| 480+ | ₹80.73 | ₹38,750.40 |
| 960+ | ₹76.38 | ₹73,324.80 |
1 × ₹149.92
₹149.92
excl. GST
₹176.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 96 per tube
ZD25Q128CSIGT
₹149.92 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 128Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 500us
- Standby Supply Current
- 15uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 96 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.248 g
Overview
The ZD25Q128C (128Mb) serial flash memory supports standard SPI and Dual/Quad SPI and QPI modes, with an interface comprising serial clock, chip select, serial data I/O pins I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/RESET#). Dual I/O and dual output data transfer rates reach up to 266Mbps, while quad I/O and quad output data transfer rates reach up to 532Mbps. The device features a flexible code and data storage architecture supporting 4KB sector erase and 64KB block erase, with 1 to 256 bytes programmable per page, offering a minimum of 100,000 program/erase cycles and more than 20 years of data retention. The operating voltage range is 2.7V to 3.6V with low-power characteristics, featuring a typical standby current of 15μA and a deep power-down current of 1μA. Program and erase speeds are fast, with a page program time of 0.5ms, 4KB sector erase time of 43ms, 64KB block erase time of 0.23s, and chip erase time of 48s. Additionally, the device incorporates advanced security features, including a 128-bit unique ID per device, three 1024-byte security registers with OTP lock, and a Serial Flash Discoverable Parameters (SFDP) register.
Key features
- SPI Flash support: Standard SPI (SCLK, CS#, SI, SO); Dual SPI (SCLK, CS#, IO0, IO1); Quad SPI (SCLK, CS#, IO0, IO1, IO2, IO3); QPI (SCLK, CS#, IO0, IO1, IO2, IO3); SPI/QPI Double Transfer Rate read
- High-performance serial Flash: Single I/O fast read frequency 133MHz; Dual I/O data transfer rate up to 266Mbps; Quad I/O data transfer rate up to 532Mbps; QPI mode data transfer rate up to 532Mbps
- Flexible code and data storage architecture: Uniform 4KB sector erase; Uniform 64KB block erase; 1 to 256 bytes programmable per page; Minimum 100,000 program/erase cycles; Over 20-year data retention
- Package options: SOP8 208mil; WSON8 (6×5mm); SOP16 300mil
- Power supply and low power: Single supply 2.7V to 3.6V; Standby current 15μA; Typical deep power-down current 1μA
- Fast program and erase speed: Page program time 0.5ms; 4KB sector erase time 43ms; 64KB block erase time 0.23s; Chip erase time 48s
- Advanced security features: 128-bit unique ID per device; Three 1024-byte security registers with OTP lock; SFDP register
