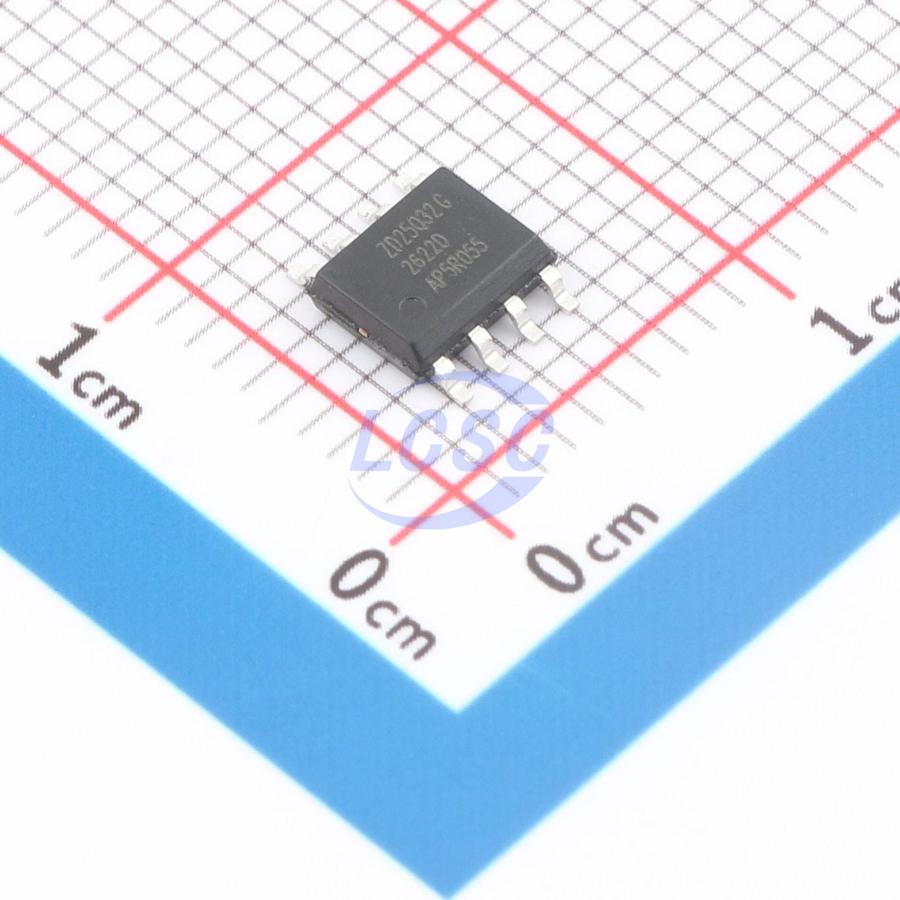

ZD25Q32DTIGT
32Mbit 2.7V~3.6V 104MHz SPI SOP-8-150mil Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,693 in stock
#C54442526
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.62 | ₹65.62 |
| 10+ | ₹51.93 | ₹519.30 |
| 30+ | ₹46.07 | ₹1,382.10 |
| 100+ | ₹38.68 | ₹3,868.00 |
| 500+ | ₹35.21 | ₹17,605.00 |
| 1,000+ | ₹33.25 | ₹33,250.00 |
1 × ₹65.62
₹65.62
excl. GST
₹77.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
ZD25Q32DTIGT
₹65.62 for 1 + GST
Specifications
- Memory Size
- 32Mbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 400us
- Interface
- SPI
- Standby Supply Current
- 15uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.298 g
Overview
ZD25Q32D (32Mbit) serial flash supports standard SPI, as well as Dual/Quad SPI and QPI: serial clock, chip select, serial data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#/RESET#). Dual I/O and dual output data transfer rate is 266Mbit/s; quad I/O and quad output data transfer rate is 532Mbit/s. The device is designed for use across a wide range of systems, supporting read, program, and erase operations over a wide supply voltage range of 2.7V to 3.6V. No separate voltage is required for programming and erasing.
Key features
- 32Mbit density support
- Standard SPI: SCLK, CS#, SI, SO; Dual SPI: SCLK, CS#, IO0, IO1; Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3; QPI: SCLK, CS#, IO0, IO1, IO2, IO3; SPI/QPI DTR (Double Transfer Rate) read support
- Fast read speed up to 133MHz
- Dual I/O data transfer rate up to 266Mbit/s, Quad I/O data transfer rate up to 532Mbit/s
- QPI mode data transfer rate up to 532Mbit/s
- Minimum 100,000 program/erase cycles, data retention exceeding 20 years
- Single 2.7V to 3.6V power supply
- Standby current 15μA, typical deep power-down current 1μA
- Uniform 4K-byte sector erase, uniform 32/64K-byte block erase
- 1 to 256 bytes programmable per page
- Page program time 0.4ms, 4K-byte sector erase time 40ms
- 32K/64K-byte block erase time 0.15s/0.25s, chip erase time 10s
- 128-bit unique ID per device
- 3×1024-byte security registers with OTP lock
- Serial Flash Discoverable Parameters (SFDP) register
- Available packages: SOP8 208mil, SOP8 150mil, TSSOP-8 (173MIL), USON8 (6x8mm), USON8 (5x6mm), USON8 (2x3mm)
