Zetta

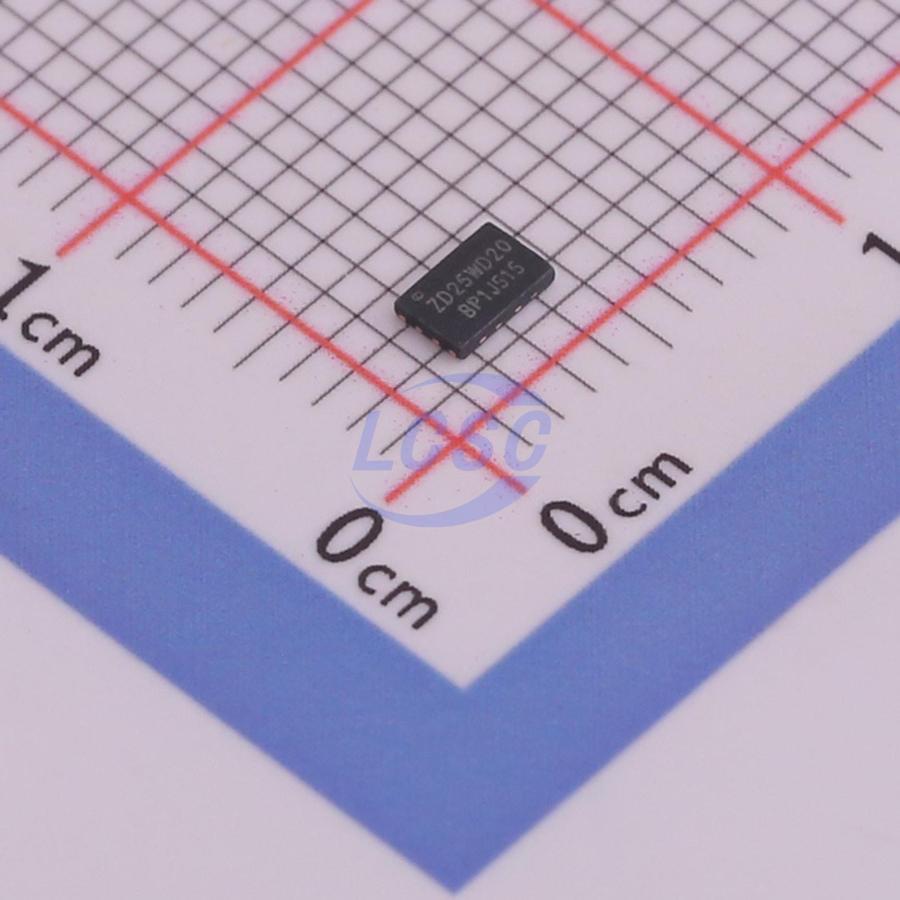

ZD25WD20CEIGR

2Mbit 1.65V~3.6V 104MHz SPI USON-8(2x3) Memory RoHS

USON-8(2x3)ROHS CompliantActive

Ultra Low Power 2M-bit Serial Multi I/O Flash Memory

Manufacturer: Zetta
Manufacturer part #: ZD25WD20CEIGR
Store part #: C7462744
Package / case: USON-8(2x3)
Category: Memory
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,815 in stock

#C7462744

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.81	₹94.05
50+	₹15.17	₹758.50
150+	₹13.35	₹2,002.50
500+	₹11.99	₹5,995.00
3,000+	₹10.41	₹31,230.00
6,000+	₹9.87	₹59,220.00

Quantity (min 5, multiples of 5)

5 × ₹18.81

₹94.05

excl. GST

₹110.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZD25WD20CEIGR

₹94.05 for 5 + GST

Specifications

Features: Write enable latch;Power-on reset;Software write protection
Memory Size: 2Mbit
Voltage - Supply: 1.65V~3.6V
Program / Erase Cycles: 100,000 cycles
Clock Frequency: 104MHz
Data Retention - TDR (Year): 20 Years
Block Erase Time(tBE): 13ms
Page Programming Time (Tpp): 2ms
Standby Supply Current: 0.5uA
Interface: SPI

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

The ZD25WD20C serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2. The Dual I/O & Dual output data is transferred with Maximum speed of 208Mbits/s.

Key features

Wide supply range from 1.65V to 3.6V for Read, Erase and Program
Ultra-Low Power consumption for Read, Erase and Program
x1, x2 Multi I/O Support
High reliability with 100K cycling endurance and 20-year data retention
Page/Sector/Block Erase
Single and Dual IO mode – Standard SPI: SCLK, /CS, SI, SO – Dual SPI: SCLK, /CS, IO0, IO1
Highest Performance Speed – 1 IO 104MHz for fast read – 2 IO Dual I/O Data transfer up to 208Mbits/s
Power Supply and Low Power Consumption – Single 1.65V to 3.6V supply – 0.5μA standby current, 0.3μA deep power down current – 1.3mA active read current at 33MHz, 3.2mA active program or erase current
Flexible Architecture for Code and Data Storage – Uniform 256-byte Page Erase, Uniform 4K-byte Sector Erase – Uniform 32/64K-byte Block Erase, Program 1 to 256 byte per programmable page – Minimum 100,000 Program/Erase Cycles, More than 20-year data retention
Fast Program and Erase Speed – 2ms page program time, 13ms page erase time – 13ms 4K-byte sector erase time, 13ms 32K/64K-byte block erase time
Advanced Security Features – 128-Bit Unique ID for each device
Package Options – SOP8 – TSSOP8 – USON8 (2x3x0.45 mm) – USON6(1.2x1.2x0.40mm) – USON6(1.0x0.72x0.45mm) – USON6(1.225x0.725x0.45mm) – KGD
