Zetta

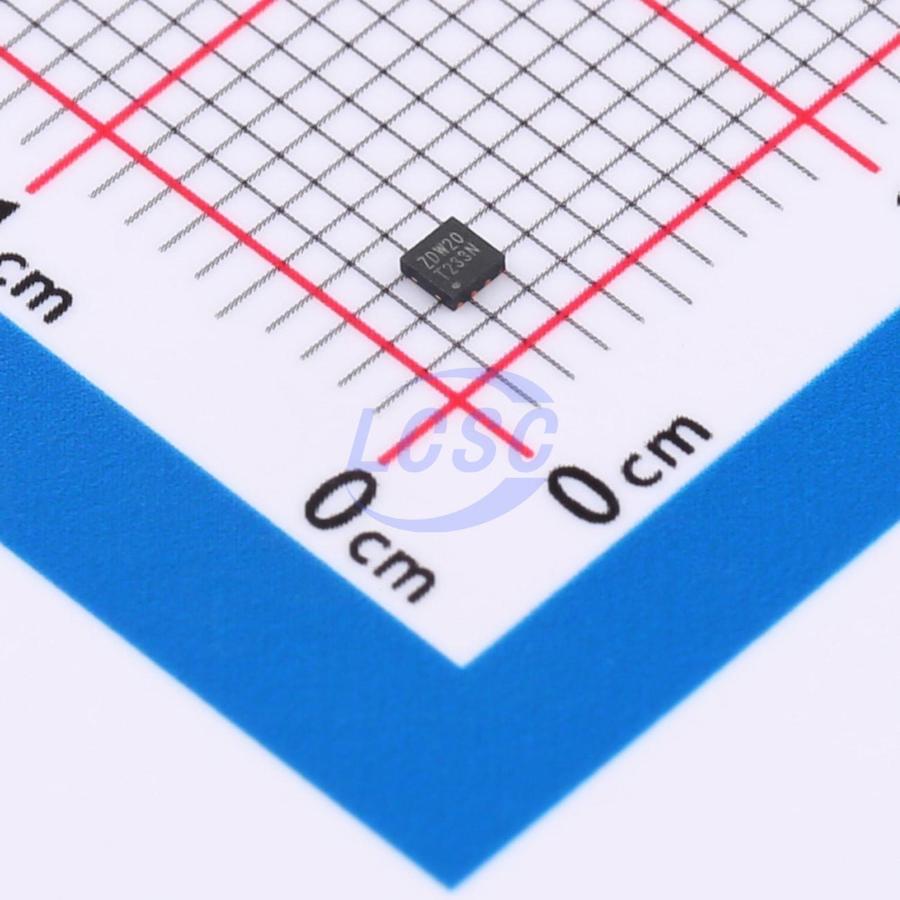

ZD25WD20CNIGR
2Mbit 1.65V~3.6V 104MHz SPI USON-8-EP(1.5x1.5) Memory RoHS
USON-8-EP(1.5x1.5)ROHS CompliantActive
Ultra Low Power, 2M-bit Serial Multi I/O Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26,935 in stock
#C25687183
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.45 | ₹107.25 |
| 50+ | ₹17.07 | ₹853.50 |
| 150+ | ₹15.19 | ₹2,278.50 |
| 500+ | ₹12.86 | ₹6,430.00 |
| 3,000+ | ₹11.05 | ₹33,150.00 |
| 6,000+ | ₹10.41 | ₹62,460.00 |
5 × ₹21.45
₹107.25
excl. GST
₹126.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZD25WD20CNIGR
₹107.25 for 5 + GST
Specifications
- Features
- Write enable latch;Power-on reset;Software write protection
- Memory Size
- 2Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 13ms@(64KB)
- Page Programming Time (Tpp)
- 2ms
- Standby Supply Current
- 0.5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The ZD25WD20C serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2. The Dual I/O & Dual output data is transferred with Maximum speed of 208Mbits/s.
Key features
- Wide supply range from 1.65V to 3.6V for Read, Erase and Program
- Ultra-Low Power consumption for Read, Erase and Program
- x1, x2 Multi I/O Support
- High reliability with 100K cycling endurance and 20-year data retention
- Page/Sector/Block Erase
- Single and Dual IO mode – Standard SPI: SCLK, /CS, SI, SO – Dual SPI: SCLK, /CS, IO0, IO1
- Highest Performance Speed – 1 IO 104MHz for fast read – 2 IO Dual I/O Data transfer up to 208Mbits/s
- Power Supply and Low Power Consumption – Single 1.65V to 3.6V supply – 0.5μA standby current, 0.3μA deep power down current – 1.3mA active read current at 33MHz, 3.2mA active program or erase current
- Flexible Architecture for Code and Data Storage – Uniform 256-byte Page Erase, Uniform 4K-byte Sector Erase – Uniform 32/64K-byte Block Erase, Program 1 to 256 byte per programmable page – Minimum 100,000 Program/Erase Cycles, More than 20-year data retention
- Fast Program and Erase Speed – 2ms page program time, 13ms page erase time – 13ms 4K-byte sector erase time, 13ms 32K/64K-byte block erase time
- Advanced Security Features – 128-Bit Unique ID for each device
- Package Options – SOP8 – TSSOP8 – USON8 – DFN6 – KGD
