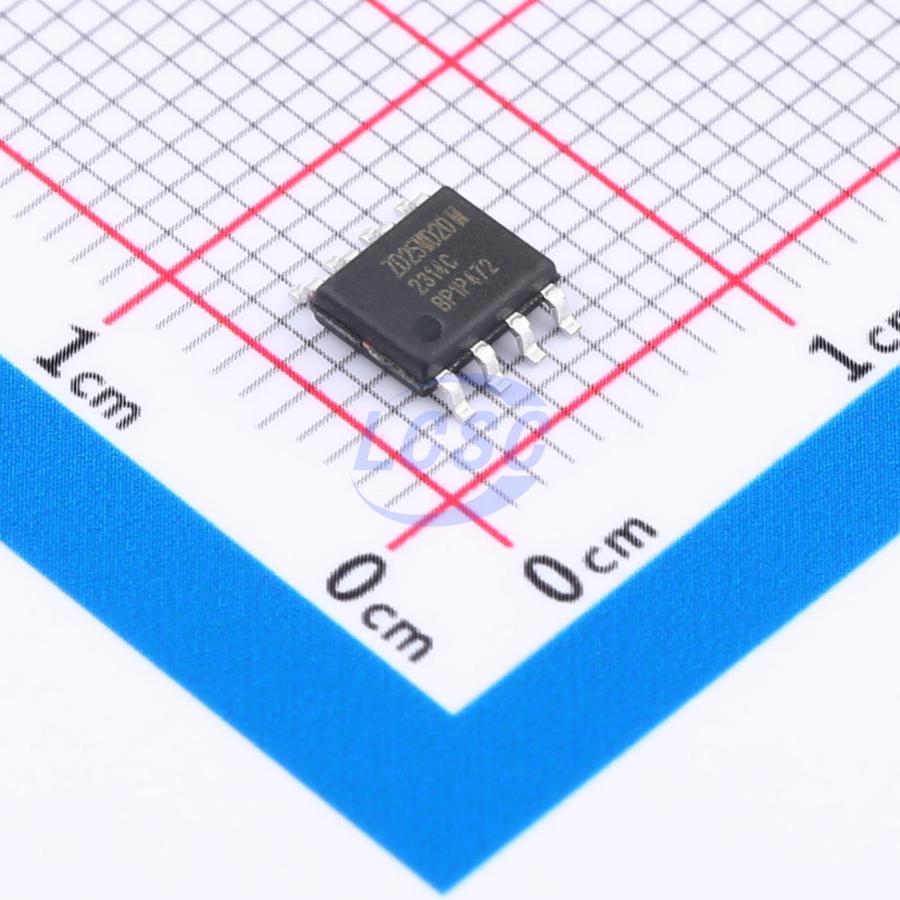

Zetta
ZD25WD20CTIGT
2Mbit 1.65V~3.6V 104MHz SPI SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
Ultra Low Power 2M-bit Serial Multi I/O Flash Memory
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,280 in stock
#C5555028
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.86 | ₹74.30 |
| 50+ | ₹11.72 | ₹586.00 |
| 200+ | ₹10.16 | ₹2,032.00 |
| 500+ | ₹8.98 | ₹4,490.00 |
| 2,500+ | ₹8.04 | ₹20,100.00 |
| 5,000+ | ₹7.58 | ₹37,900.00 |
5 × ₹14.86
₹74.30
excl. GST
₹87.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
ZD25WD20CTIGT
₹74.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Memory Size
- 2Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 13ms
- Page Programming Time (Tpp)
- 2ms
- Standby Supply Current
- 0.5uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.47 g
Overview
The ZD25WD20C serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2. The Dual I/O & Dual output data is transferred with Maximum speed of 208Mbits/s.
Key features
- Wide supply range from 1.65V to 3.6V for Read, Erase and Program
- Ultra-Low Power consumption for Read, Erase and Program
- x1, x2 Multi I/O Support
- High reliability with 100K cycling endurance and 20-year data retention
- Page/Sector/Block Erase
- Single and Dual IO mode – Standard SPI: SCLK, /CS, SI, SO – Dual SPI: SCLK, /CS, IO0, IO1
- Highest Performance Speed – 1 IO 104MHz for fast read – 2 IO Dual I/O Data transfer up to 208Mbits/s
- Power Supply and Low Power Consumption – Single 1.65V to 3.6V supply – 0.5μA standby current, 0.3μA deep power down current – 1.3mA active read current at 33MHz, 3.2mA active program or erase current
- Flexible Architecture for Code and Data Storage – Uniform 256-byte Page Erase, Uniform 4K-byte Sector Erase – Uniform 32/64K-byte Block Erase, Program 1 to 256 byte per programmable page – Minimum 100,000 Program/Erase Cycles, More than 20-year data retention
- Fast Program and Erase Speed – 2ms page program time, 13ms page erase time – 13ms 4K-byte sector erase time, 13ms 32K/64K-byte block erase time
- Advanced Security Features – 128-Bit Unique ID for each device
- Package Options – SOP8 – TSSOP8 – USON8 (2x3x0.45 mm) – USON6(1.2x1.2x0.40mm) – USON6(1.0x0.72x0.45mm) – USON6(1.225x0.725x0.45mm) – KGD
