Zetta

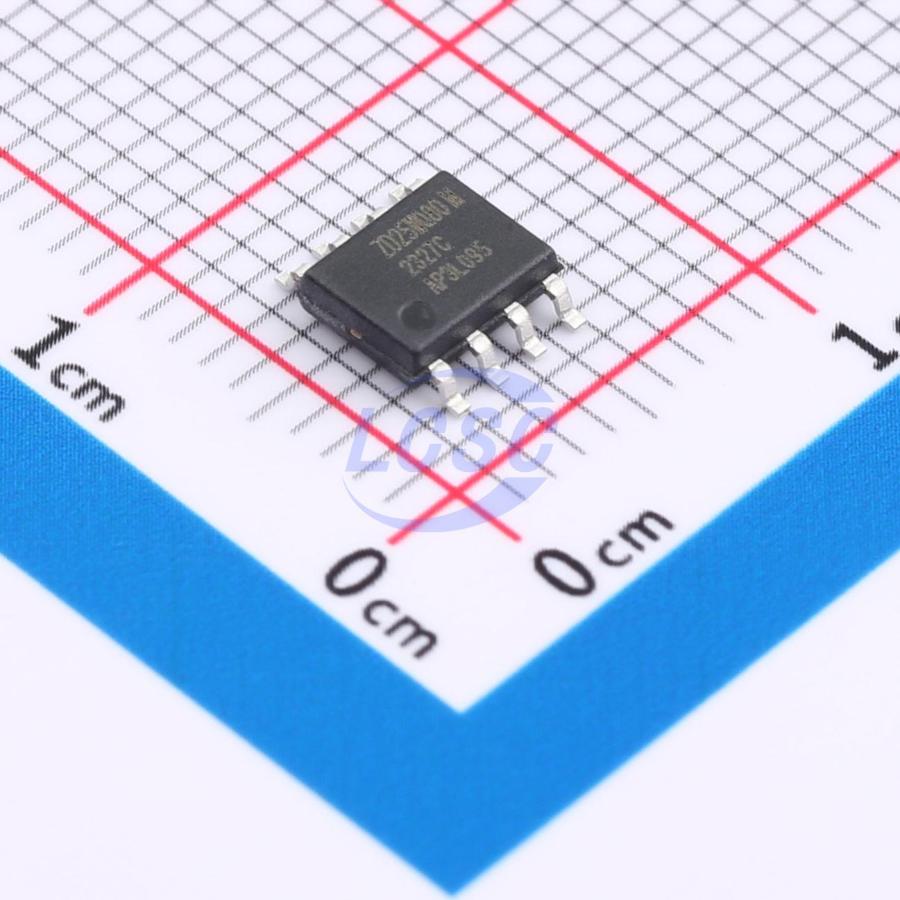

ZD25WQ80CTIGT
8Mbit 1.65V~3.6V 104MHz SPI SOP-8 Memory RoHS
SOP-8ROHS CompliantActive
Ultra Low Power, 8M-BIT Serial Flash Memory with Dual, Quad SPI
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,410 in stock
#C7525143
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.15 | ₹125.75 |
| 50+ | ₹20.22 | ₹1,011.00 |
| 200+ | ₹16.59 | ₹3,318.00 |
| 500+ | ₹13.96 | ₹6,980.00 |
| 2,500+ | ₹12.78 | ₹31,950.00 |
| 5,000+ | ₹12.08 | ₹60,400.00 |
5 × ₹25.15
₹125.75
excl. GST
₹148.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 100 per tube
ZD25WQ80CTIGT
₹125.75 for 5 + GST
Specifications
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 8Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 1.5ms
- Standby Supply Current
- 1.3uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 100 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.111 g
Overview
The ZD25WQ80C (8M-Bit) serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O & Dual output data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s.
Key features
- Wide supply range from 1.65V to 3.6V for Read, Erase and Program
- Ultra-Low Power consumption for Read, Erase and Program
- x1, x2 and x4 Multi I/O Support
- High reliability with 100K cycling endurance and 20-year data retention
- Page/Sector/Block Erase
- Fast Chip Erase time 25ms
- Single, Dual and Quad IO mode – Standard SPI: SCLK, /CS, SI, SO – Dual SPI: SCLK, /CS, IO0, IO1 – Quad SPI: SCLK, /CS, IO0, IO1, IO2, IO3
- 1 IO 104MHz for fast read
- 2 IO Dual I/O Data transfer up to 208Mbits/s
- 4 IO Quad I/O Data transfer up to 416Mbits/s
- Single 1.65V to 3.6V supply
- 1.3μA standby current, 0.5μA deep power down current
- 3.5mA active read current at 33MHz, 4.5mA active program or erase current
- Uniform 256-byte Page Erase, Uniform 4K-byte Sector Erase
- Uniform 32/64K-byte Block Erase, Program 1 to 256 byte per programmable page
- Minimum 100,000 Program/Erase Cycles, More than 20-year data retention
- 1.5ms page program time, 15ms page erase time
- 15ms 4K-byte sector erase time, 15ms 32K/64K-byte block erase time
- 128-Bit Unique ID for each device
- 3*256 -Byte Security Registers with OTP Locks
- Discoverable parameters (SFDP) register
