DIODESDatasheet (PDF)

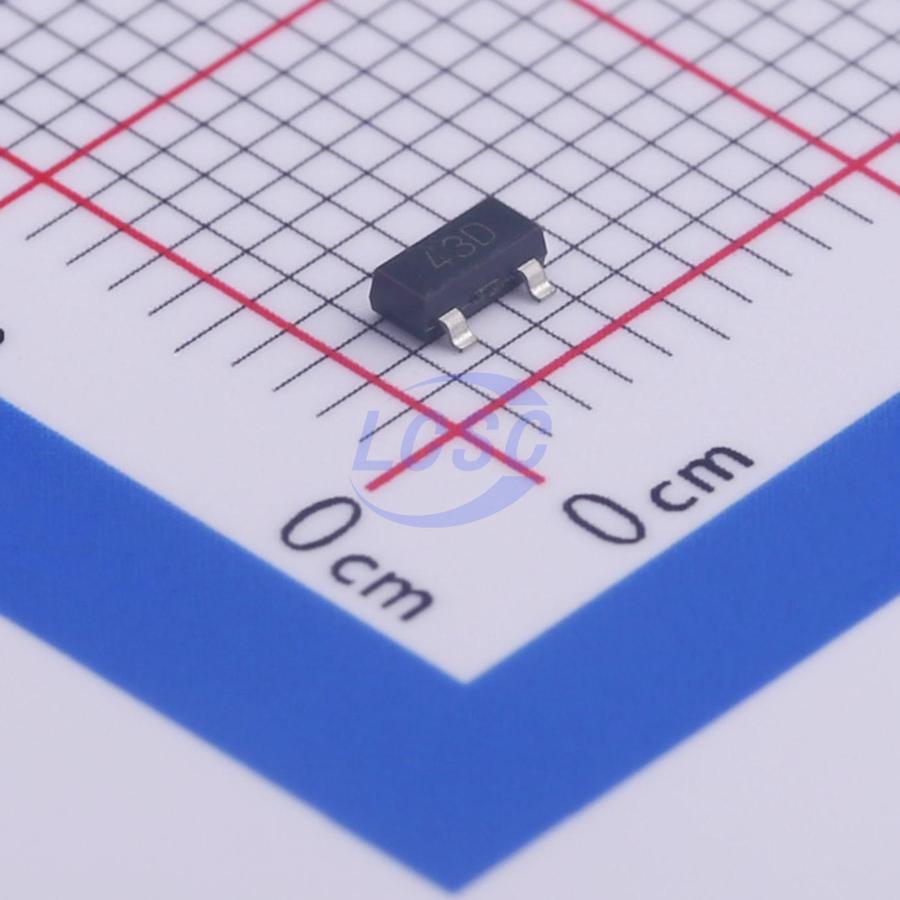

ZHT431F02TA
2.5V~20V ±2% 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
ADJUSTABLE PRECISION ZENER SHUNT REGULATOR
- Manufacturer
- DIODES
- Manufacturer part #
- ZHT431F02TA
- Store part #
- C460616
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,789 in stock
#C460616
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.63 | ₹79.63 |
| 10+ | ₹71.38 | ₹713.80 |
| 30+ | ₹67.47 | ₹2,024.10 |
| 100+ | ₹63.36 | ₹6,336.00 |
| 500+ | ₹60.96 | ₹30,480.00 |
| 1,000+ | ₹59.67 | ₹59,670.00 |
1 × ₹79.63
₹79.63
excl. GST
₹93.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZHT431F02TA
₹79.63 for 1 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Tolerance
- ±2%
- Minimum Cathode Current for Regulation
- 35uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -55℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The ZHT431 is a three terminal adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 100 mA. The device offers extended operating temperature range working from -55 to +125°C. The output voltage may be set to any chosen voltage between 2.5 and 20 volts by selection of two external divider resistors. The devices can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance.
Applications
- Series and Shunt Regulator
- Voltage Monitor
- Over Voltage / Under Voltage Protection
- Switch Mode Power Supplies
Key features
- Surface Mount SOT23 (Type DN) Package
- 0.5%, 1% and 2% Tolerance
- Maximum Temperature Coefficient 67 ppm/°C
- Temperature Compensated for Operation Over the Full Temperature Range
- Programmable Output Voltage
- 50 μA to 100 mA Current Sink Capability
- Low Output Noise
- Wide Temperature Range -55 to +125°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431IDBZR-TP#C42407101TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 2,690 | ₹8.23 · 2,690 in stock | View |
 | TPNCP431AVSNT1G#C47117631TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,605 | ₹10.03 · 2,605 in stock | View |
