DIODESDatasheet (PDF)

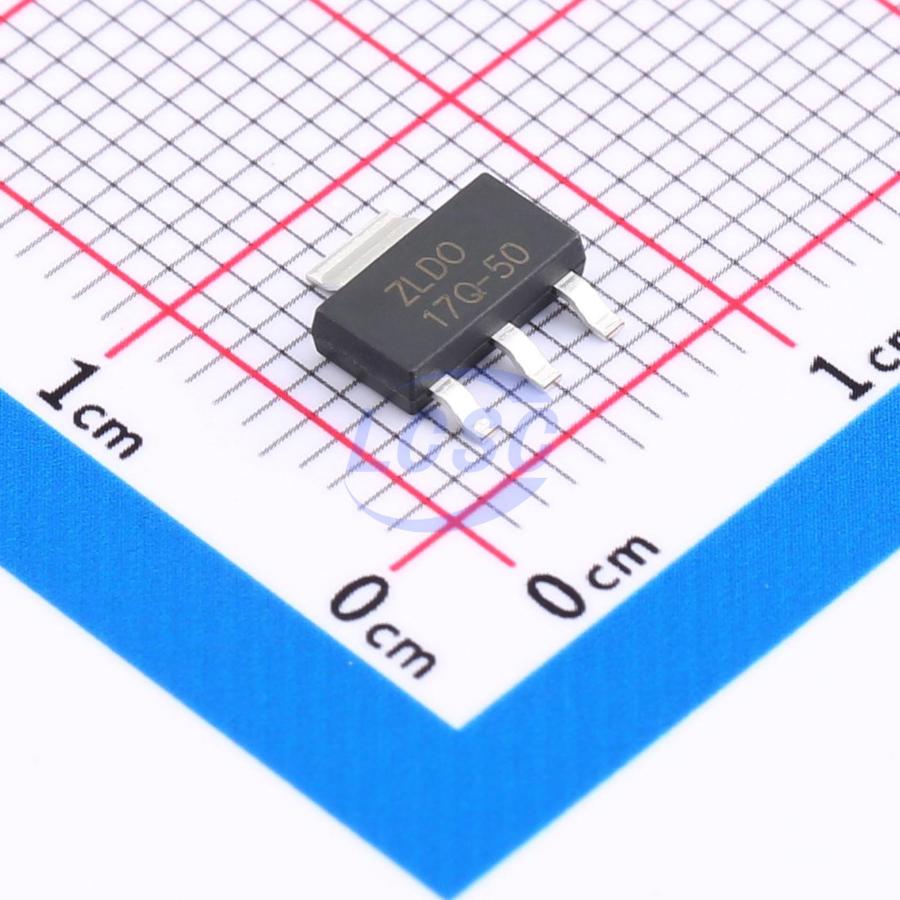

ZLDO1117QG50TA
5V Positive Fixed SOT-223-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-4ROHS3 CompliantActive
1A Low Dropout Positive Voltage Regulator, Fixed and Adjustable Outputs
- Manufacturer
- DIODES
- Manufacturer part #
- ZLDO1117QG50TA
- Store part #
- C526778
- Package / case
- SOT-223-4
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,350 in stock
#C526778
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.05 | ₹175.25 |
| 50+ | ₹30.94 | ₹1,547.00 |
| 150+ | ₹29.19 | ₹4,378.50 |
| 1,000+ | ₹26.99 | ₹26,990.00 |
| 2,000+ | ₹26.01 | ₹52,020.00 |
| 5,000+ | ₹25.43 | ₹1,27,150.00 |
5 × ₹35.05
₹175.25
excl. GST
₹206.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ZLDO1117QG50TA
₹175.25 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The ZLDO1117Q is a low-dropout positive adjustable or fixed-mode regulator with 1A output current capability. The ZLDO1117Q has a 2% tolerance across the industrial temperature range and is guaranteed to have lower than 1.2V dropout at full load current making it ideal to provide well-regulated outputs of 1.2V to 5.0V with input supply voltages up to 18V. The ZLDO1117Q is ideally suited to provide well-regulated supplies for low-voltage IC applications such as high-speed bus termination and low-current 3.3V logic supply across the whole industrial temperature range. The ZLDO1117Q has been qualified to AEC-Q100 Grade 2 and is automotive compliant supporting PPAPs.
Applications
- 1A I/O – 1.8V Core Regulator
Key features
- 1.2V Maximum Dropout at Full Load Current
- 2% Tolerance Overtemperature, Line and Load Variations
- Fast Transient Response
- Output Current Limiting
- Built-in Thermal Shutdown
- Good Noise Rejection
- Suitable for Use with MLCC Capacitors
- -40°C to +105°C Ambient Temperature Range
- Available in TO252 (DPAK) and SOT223 with “Green” Molding Compound (No Br, Sb)
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV1117ST50T3G#C156196onsemi · SOT-223 | onsemi | SOT-223 | 4,345 | ₹48.77 · 4,345 in stock | View |
 | NCP1117ST50T3G#C17314onsemi · SOT-223 | onsemi | SOT-223 | 11,435 | ₹38.66 · 11,435 in stock | View |
 | SL1117-5.0#C33962561Slkor · SOT-223-3L | Slkor | SOT-223-3L | 3,230 | ₹6.63 · 3,230 in stock | View |
 | LD1117-5.0#C347230UMW · SOT-223 | UMW | SOT-223 | 1,71,970 | ₹7.34 · 1,71,970 in stock | View |
 | LM2940IMPX-5.0/NOPB#C2859859TI · SOT-223-4 | TI | SOT-223-4 | 1,950 | ₹160.81 · 1,950 in stock | View |
