DIODESDatasheet (PDF)

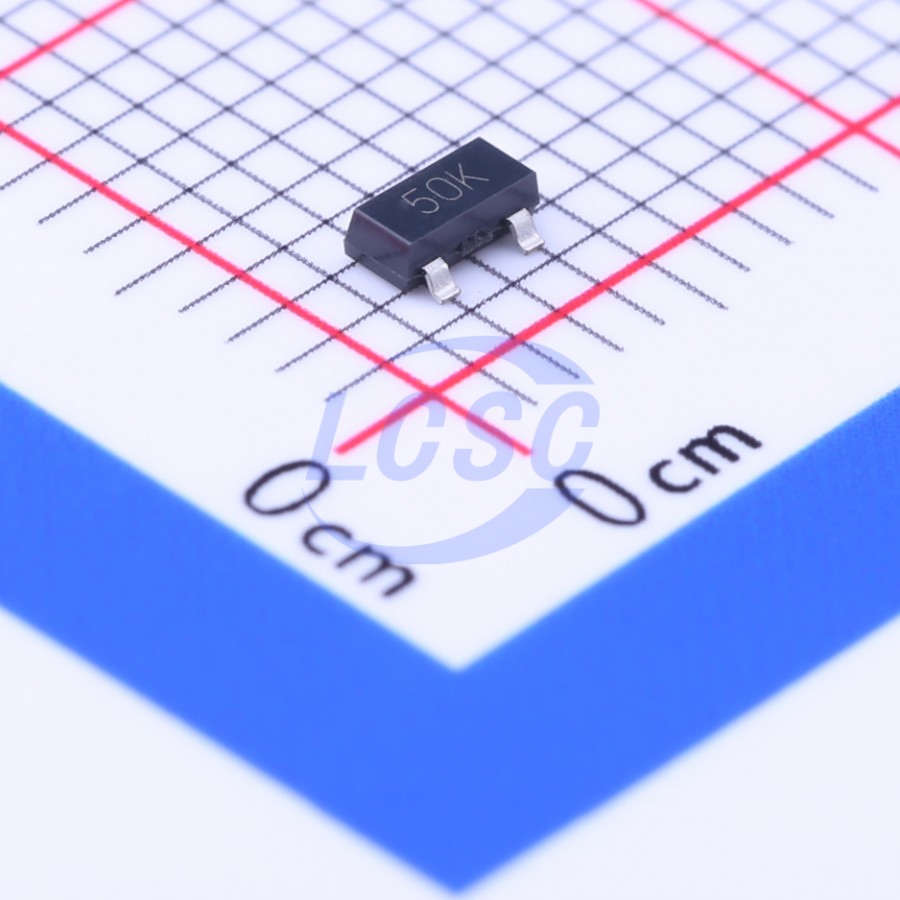

ZMR500FTA
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23ROHS CompliantActive
Input 25V Output 5V 50mA
- Manufacturer
- DIODES
- Manufacturer part #
- ZMR500FTA
- Store part #
- C154745
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,044 in stock
#C154745
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.14 | ₹59.14 |
| 10+ | ₹45.94 | ₹459.40 |
| 30+ | ₹40.15 | ₹1,204.50 |
| 100+ | ₹32.92 | ₹3,292.00 |
| 500+ | ₹29.84 | ₹14,920.00 |
| 1,000+ | ₹27.85 | ₹27,850.00 |
1 × ₹59.14
₹59.14
excl. GST
₹69.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZMR500FTA
₹59.14 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -55℃~+125℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 50mA
- Operating Voltage
- 25V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The ZMR series of three terminal fixed positive voltage regulators feature internal current limit and will shut down under thermal overload conditions making the devices difficult to destroy. The circuit design offers an exceptionally low quiescent current, only 30μA for the 2.5V device, ideal for low power applications. The initial devices in the series regulate to 2.5 or 5V with a drive capability up to 50mA. The device is designed with space saving in mind and is available in the small outline SOT23 package. The ZMR250 has expanded its input voltage range to 22.5V and the ZMR500 has expanded its input voltage range to 25V; equaling that of the ZMR25H and ZMR50H respectively. The ZMR330 provides a 3.3V output over an input range of 5V to 24V.
Applications
- Consumer Electronics
- DVD/Blu-Ray Player, CD-ROM, Set Top Box
- TV, Monitor, Security System
- Supply for Low Power Microcontroller
- Local Low Current Supply within Larger Systems
Key features
- Small Outline SOT23 Package
- 2.5V, 3.3V and 5V Output
- Output Current up to 50mA
- Very Low Quiescent Current (30μA)
- Unconditionally Stable
- Internal Short Circuit Current Limit
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMR500QFTA#C6623200DIODES · SOT-23-3 | DIODES | SOT-23-3 | 3 | ₹79.88 · 3 in stock | View |
 | LW6550A23D#C51953183Lewa Micro · SOT-23-3L | Lewa Micro | SOT-23-3L | 2,850 | ₹5.57 · 2,850 in stock | View |
 | MCP1792T-5002H/CB#C625398MICROCHIP · SOT-23A-3 | MICROCHIP | SOT-23A-3 | 92 | ₹124.31 · 92 in stock | View |
 | LR8341A-T50#C2829466LR · SOT-23-3L | LR | SOT-23-3L | 10,210 | ₹6.63 · 10,210 in stock | View |
 | MG78L05T3#C22396244Megain · SOT-23-3 | Megain | SOT-23-3 | 88,500 | ₹2.33 · 88,500 in stock | View |
