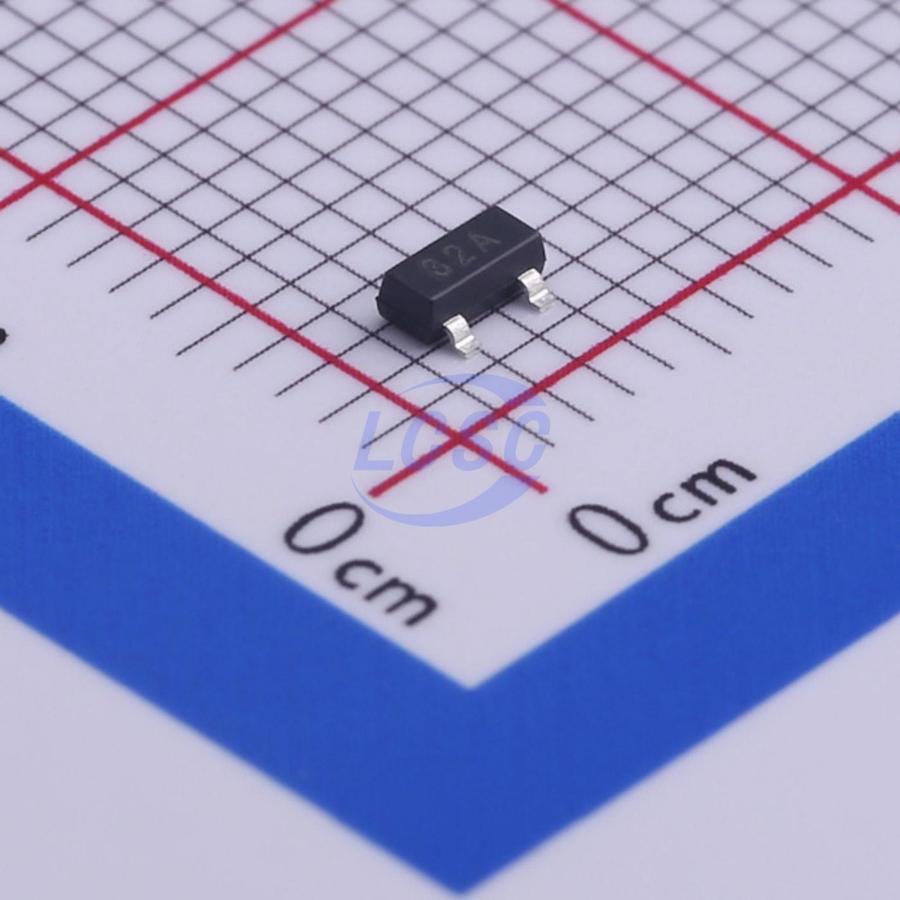

ZTL432AQFTA
2.5V~20V ±1% 2.5V~20V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
Automotive Compliant Adjustable Precision Shunt Regulator
- Manufacturer
- DIODES
- Manufacturer part #
- ZTL432AQFTA
- Store part #
- C460117
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,240 in stock
#C460117
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.71 | ₹153.55 |
| 50+ | ₹27.70 | ₹1,385.00 |
| 150+ | ₹26.42 | ₹3,963.00 |
| 500+ | ₹24.81 | ₹12,405.00 |
| 3,000+ | ₹24.09 | ₹72,270.00 |
| 6,000+ | ₹23.66 | ₹1,41,960.00 |
5 × ₹30.71
₹153.55
excl. GST
₹181.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZTL432AQFTA
₹153.55 for 5 + GST
Specifications
- Output Voltage
- 2.5V~20V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~20V
- Minimum Cathode Current for Regulation
- 600uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
The ZTL431AQ, ZTL431BQ, ZTL432AQ, and ZTL432BQ are three terminal adjustable shunt regulators that offer excellent temperature stability and output current handling capability up to 100mA. The output voltage can be set to any chosen voltage between 2.5V and 20V by the selection of two external divider resistors. The ZTL432AQ, ZTL432BQ has the same electrical specifications as the ZTL431AQ, ZTL431BQ but has a different pin out in SOT23 (F-suffix). The ZTL431AQ, ZTL431BQ, ZTL432AQ, and ZTL432BQ are available in two grades with initial tolerances of 1% and 0.5% for the A and B grades respectively. These devices are functionally equivalent to the TL431/TL432 except for maximum operation voltage, and they have an ambient temperature range of -40°C to +125°C as standard.
Applications
- Opto-Coupler Linearization
- Linear Regulators
- Improved Zener Variable Reference
Key features
- Temperature Range: -40°C to +125°C
- Reference Voltage Tolerance at +25°C:
- 0.5% : B Grade
- 1% : A Grade
- 0.2Ω Typical Output Impedance
- Sink Current Capability: 1mA to 100mA
- Adjustable Output Voltage: VREF to 20V
- Green Molding in SOT23 and SOT25
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control and are AEC-Q100 qualified, have a grade 1 temperature rating, are PPAP capable, and are manufactured in IATF16949:2016 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZTL431AFTA#C460622DIODES · SOT-23 | DIODES | SOT-23 | 755 | ₹28.09 · 755 in stock | View |
 | TP431R250S3-1#C47117584TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹7.25 · 1,000 in stock | View |
 | ZR431F01TA#C107250DIODES · SOT-23 | DIODES | SOT-23 | 155 | ₹52.91 · 155 in stock | View |
 | ZTL431BFTA#C460624DIODES · SOT-23 | DIODES | SOT-23 | 210 | ₹34.69 · 210 in stock | View |
 | ZR431F005TA#C141325DIODES · SOT-23 | DIODES | SOT-23 | 1,390 | ₹51.76 · 1,390 in stock | View |
