ZILLTEKDatasheet (PDF)

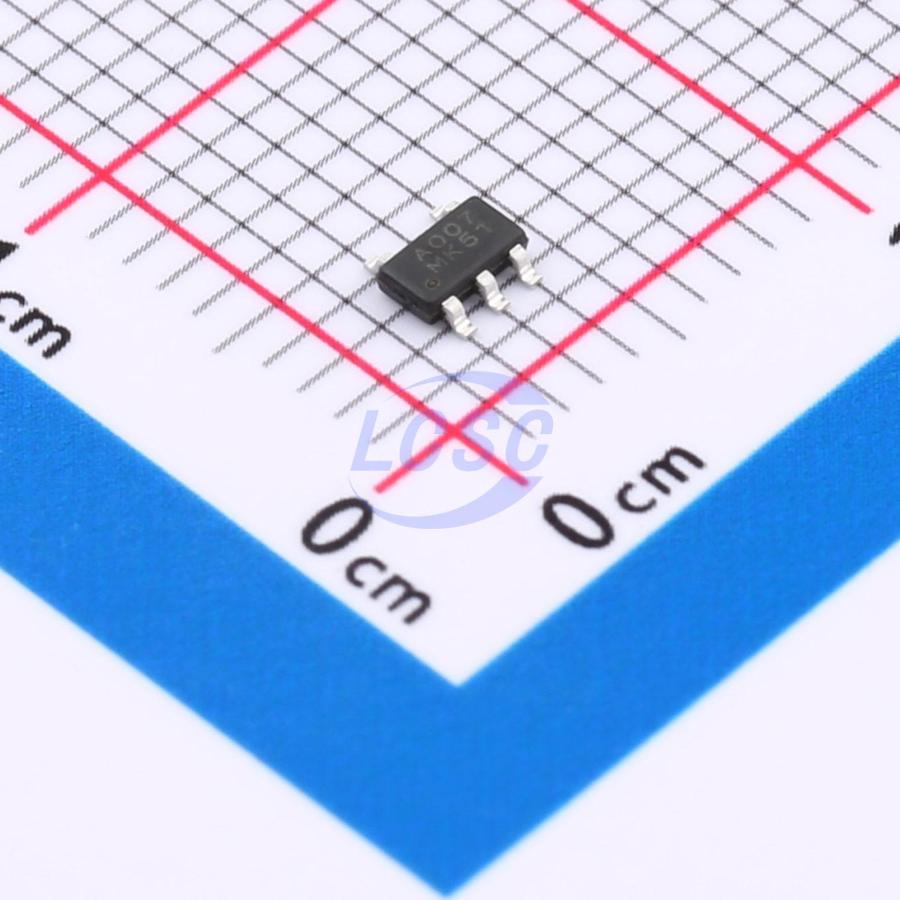

ZTP7001T-00
Positive Adjustable TSOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5LROHS CompliantActive
High PSRR, 600mA LDO Regulator
- Manufacturer
- ZILLTEK
- Manufacturer part #
- ZTP7001T-00
- Store part #
- C33129641
- Package / case
- TSOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C33129641
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.96 | ₹59.80 |
| 50+ | ₹9.46 | ₹473.00 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.28 | ₹3,640.00 |
| 3,000+ | ₹6.48 | ₹19,440.00 |
| 6,000+ | ₹6.11 | ₹36,660.00 |
5 × ₹11.96
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZTP7001T-00
₹59.80 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 600mA
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Over Current Protection;Thermal shutdown;Input under-voltage protection;Output discharge
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The ZTP7001 is a high performance LDO regulator specifically designed to deliver adjustable output voltage with high PSRR and fast transient response. Internal 700mohm PMOS pass transistor yields typical 360mV dropout voltage at 600mA output current. Typical quiescent current is only 50uA. A logic low on the enable input, EN, shuts down the output and reduces the supply current to less than 1uA. The ZTP7001 works stably with as low as 1uF ceramic output capacitor, minimizing board space requirement. Other features include soft start, high output accuracy, output current limiting, and thermal protection. The ZTP7001 is available in the TSOT23-5L and TDFN 12x2-6L package.
Applications
- Battery-Powered Equipment’s
- Hand-Held Electrical Appliances
- Portable Communication Equipment’s
Key features
- Wide Input Voltage Range, 1.65V to 5.5V
- Available in Adjustable/Fixed Output Voltage
- Fast Transient Response
- Typical 360mV Dropout Voltage at 600mA Output Current
- Small Output Capacitor, 1uF
- Typical 50uA Quiescent Current
- Less Than 1uA Shutdown Current
- Dedicated Chip Enable Pin
- Soft Start 100us
- Over Current Limitation
- Thermal Protection
- RoHS Compliant and Halogen Free
