DIODES

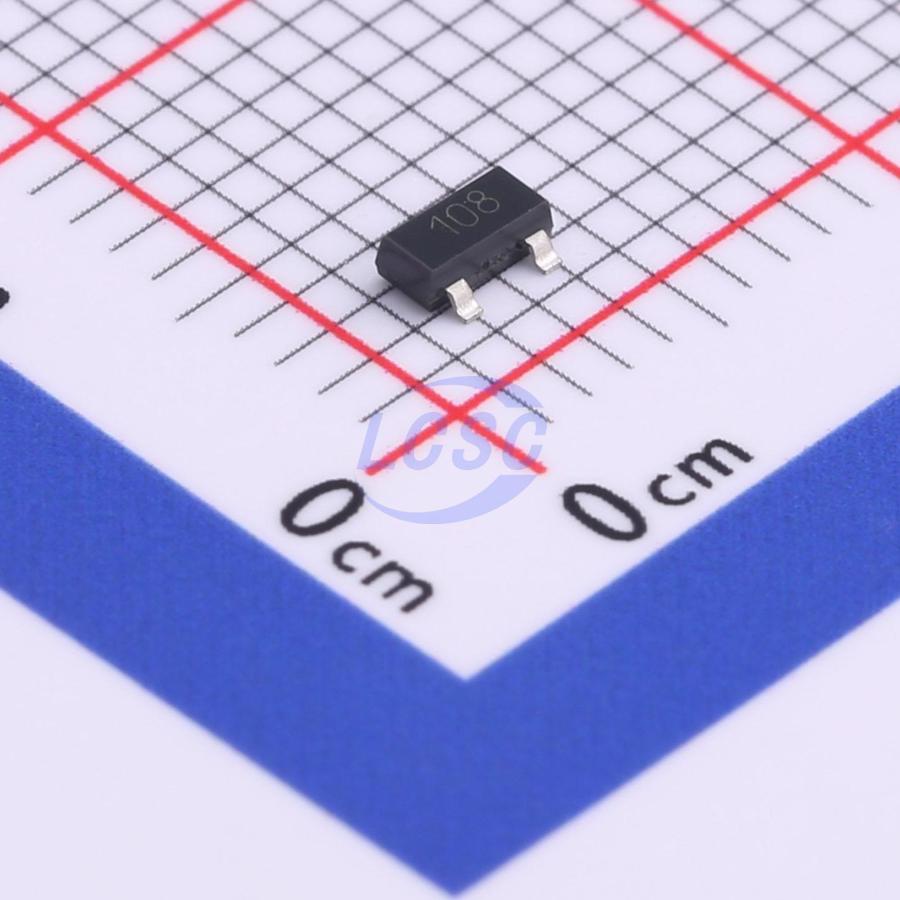

ZXCT1008FTA

5.2V 25mA 300kHz 100nA SOT-23 Current Regulation/Management RoHS

SOT-23ROHS3 CompliantActive

High-Side Current Monitor

Manufacturer: DIODES
Manufacturer part #: ZXCT1008FTA
Store part #: C79466
Package / case: SOT-23
Category: Current Regulation/Management
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,722 in stock

#C79466

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹111.89	₹111.89
10+	₹92.12	₹921.20
30+	₹82.34	₹2,470.20
100+	₹72.57	₹7,257.00
500+	₹51.28	₹25,640.00
1,000+	₹48.45	₹48,450.00

Quantity (min 1)

1 × ₹111.89

₹111.89

excl. GST

₹132.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

ZXCT1008FTA

₹111.89 for 1 + GST

Specifications

Features: High-side detection
Vcm - Common Mode Voltage: 5.2V
Output Current: 25mA
Bandwidth: 300kHz
Input Voltage (Vin): 2.5V~20V
Operating Temperature: -40℃~+125℃
Quiescent Current: 4uA
Ib - Input Bias Current: 100nA
Differential Voltage: ±0.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The ZXCT1008 is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It takes a high side voltage developed across a current shunt resistor and translates it into a proportional output current. A user defined output resistor scales the output current into a ground - referenced voltage. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. The ability to withstand high voltage transients and reverse polarity connection makes this part very suitable for automotive and other transient rich environment.

Applications

Automotive Current Measurement
DC Motor and Solenoid Control
Over Current Monitor
Power Management

Key features

Low Cost, Accurate High - Side Current Sensing
-40 to +125°C Temperature Range
Up to 500mV Sense Voltage
2.5V to 20V Supply Range
4μA Quiescent Current
1% Typical Accuracy
SOT23
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
An Automotive - Compliant Part is Available Under Separate Data Sheet (ZXCT1008Q)
