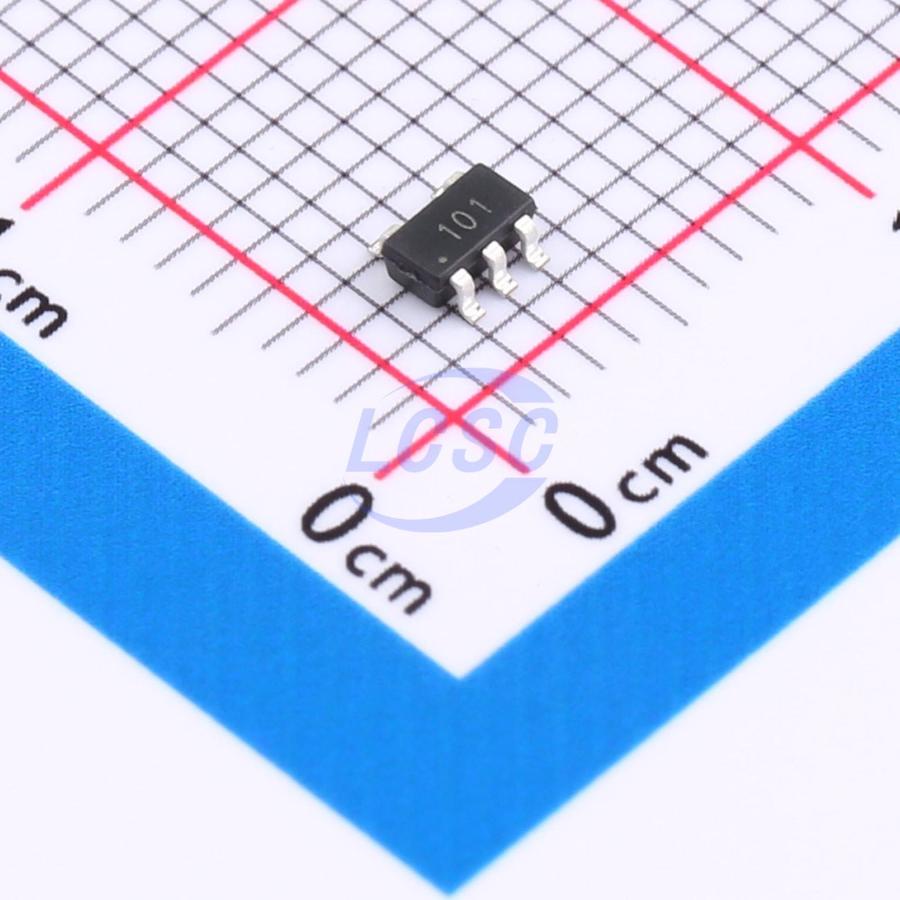

ZXCT1010E5TA
2.5V~20V 25mA 2MHz 1 SOT-25 Current Regulation/Management RoHS
SOT-25ROHS3 CompliantActive
Enhanced High-Side Current Monitor
- Manufacturer
- DIODES
- Manufacturer part #
- ZXCT1010E5TA
- Store part #
- C14151
- Package / case
- SOT-25
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,962 in stock
#C14151
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.73 | ₹114.73 |
| 10+ | ₹91.42 | ₹914.20 |
| 30+ | ₹79.68 | ₹2,390.40 |
| 100+ | ₹68.12 | ₹6,812.00 |
| 500+ | ₹61.07 | ₹30,535.00 |
| 1,000+ | ₹57.64 | ₹57,640.00 |
1 × ₹114.73
₹114.73
excl. GST
₹135.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXCT1010E5TA
₹114.73 for 1 + GST
Specifications
- Features
- High-side detection;Bidirectional detection
- Vcm - Common Mode Voltage
- 2.5V~20V
- Output Current
- 25mA
- Bandwidth
- 2MHz
- Input Voltage (Vin)
- 2.5V~20V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3.5uA
- Number of Channels
- 1
- Differential Voltage
- ±0.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
The ZXCT1010 is a high side current sense monitor. Using this device eliminates the need to disrupt the ground plane when sensing a load current. It is an enhanced version of the ZXCT1009 offering reduced typical output offset and improved accuracy at low sense voltage. The wide input voltage range of 20V down to as low as 2.5V make it suitable for a range of applications. A minimum operating current of just 4μA, combined with its SOT25 package make suitable for portable battery equipment.
Applications
- Battery chargers
- Smart battery packs
- DC motor control
- Over current monitor
- Power management Programmable current source
Key features
- Low cost, accurate high-side current sensing Output voltage scaling
- Up to 2.5V sense voltage
- 2.5V to 20V supply voltage range
- 300nA typical offset current
- 3.5μA quiescent current
- 1% typical accuracy
- SOT25 package
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
