DIODESDatasheet (PDF)

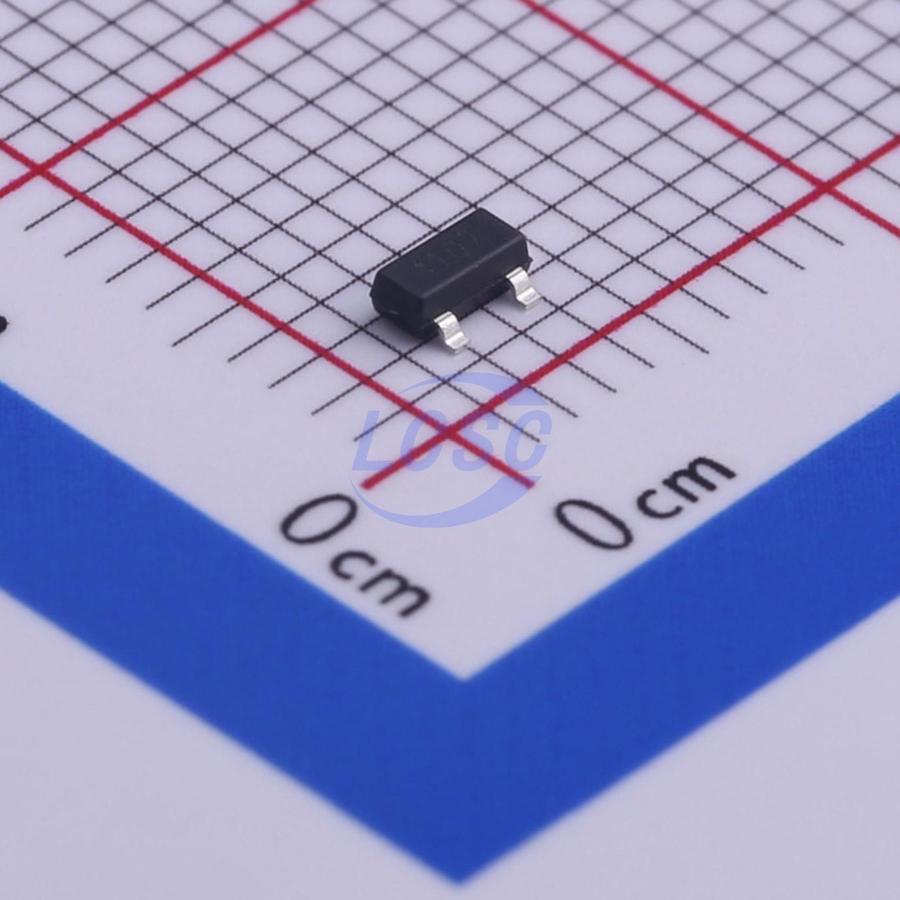

ZXCT1107QSA-7
2.5V~36V 2.015mA 650kHz 19nA SOT-23 Current Regulation/Management RoHS
SOT-23ROHS3 CompliantActive
Automotive Compliant MicroPower Current Monitor
- Manufacturer
- DIODES
- Manufacturer part #
- ZXCT1107QSA-7
- Store part #
- C460631
- Package / case
- SOT-23
- Category
- Current Regulation/Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,856 in stock
#C460631
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.94 | ₹153.94 |
| 10+ | ₹126.85 | ₹1,268.50 |
| 30+ | ₹113.18 | ₹3,395.40 |
| 100+ | ₹99.74 | ₹9,974.00 |
| 500+ | ₹89.33 | ₹44,665.00 |
| 1,000+ | ₹85.21 | ₹85,210.00 |
1 × ₹153.94
₹153.94
excl. GST
₹181.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXCT1107QSA-7
₹153.94 for 1 + GST
Specifications
- Features
- High-side detection;External shunt;Analog output interface
- Vcm - Common Mode Voltage
- 2.5V~36V
- Output Current
- 2.015mA
- Bandwidth
- 650kHz
- Quiescent Current
- 3uA
- Ib - Input Bias Current
- 19nA
- Differential Voltage
- 0V~0.5V
- Input Voltage (Vin)
- 2.5V~36V
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.017 g
Overview
The ZXCT1107Q/09Q/10Q products are high-side unipolar current sense monitors. These devices eliminate the need to disrupt the ground plane when sensing a load current. The wide common-mode input voltage range and low quiescent current, coupled with SOT23 and SOT25 packages, make them suitable for a range of automotive applications. The device is line powered and as such doesn’t need a separate supply rail. Quiescent current is only 3μA, thereby minimizing current sensing error. One external gain setting resistor increases versatility by permitting wide gain ranges. The ZXCT1107Q/09Q/10Q devices have been qualified to AEC-Q100 Grade 1 and are Automotive Compliant supporting PPAPs.
Applications
- Automotive Current Measurement
- Battery Management Over Current Monitor
Key features
- Wide Supply and Common-Mode Voltage Range: 2.5V to 36V
- SOT23 and SOT25 Packages
- 3-Pin ZXCT1107Q/09Q
- 5-Pin ZXCT1110Q
- Low Quiescent Current (3μA)
- Extended Industrial Temperature Range -40 to +125°C
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q100 Standards for High Reliability
- PPAP Capable
