DIODESDatasheet (PDF)

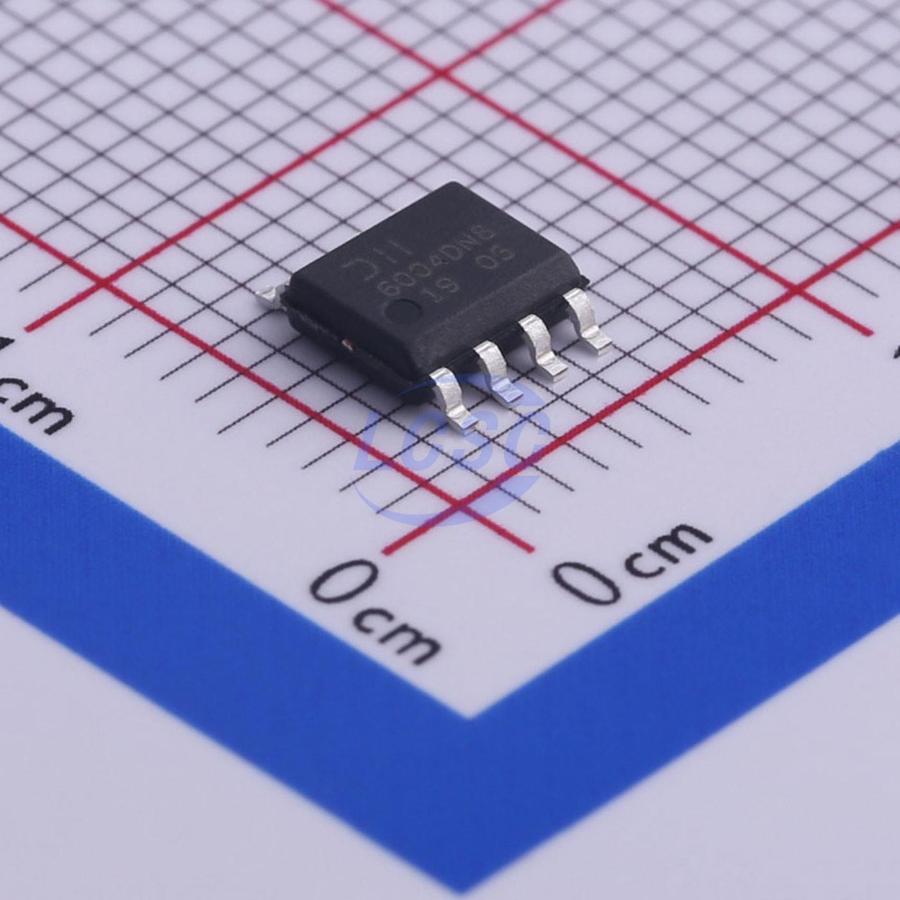

ZXMS6004DN8Q-13
2 Active High 1.2A Low Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive
60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE INTELLIFET MOSFET
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMS6004DN8Q-13
- Store part #
- C460280
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,211 in stock
#C460280
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹646.84 | ₹646.84 |
| 10+ | ₹548.20 | ₹5,482.00 |
| 30+ | ₹489.54 | ₹14,686.20 |
| 100+ | ₹430.21 | ₹43,021.00 |
| 500+ | ₹402.84 | ₹2,01,420.00 |
| 1,000+ | ₹390.46 | ₹3,90,460.00 |
1 × ₹646.84
₹646.84
excl. GST
₹763.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
ZXMS6004DN8Q-13
₹646.84 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 2
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.2A
- RDS(on)
- 500mΩ
- Operating Voltage
- 0V~36V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.112 g
Overview
The ZXMS6004DN8Q is a dual self-protected low-side IntelliFET MOSFET with logic level input. It integrates overtemperature, overcurrent, overvoltage (active clamp) and ESD protected logic level functionality. The ZXMS6004DN8Q is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough.
Applications
- Lamp Driver
- Motor Driver
- Relay Driver
- Solenoid Driver
Key features
- Low Input Current
- Logic Level Input (3.3V and 5V)
- Short Circuit Protection with Auto Restart
- Overvoltage Protection (Active Clamp)
- Thermal Shutdown with Auto Restart
- Overcurrent Protection
- Input Protection (ESD)
- High Continuous Current Rating
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Characterized to AEC-Q101-006 Grade F for Short-Circuit Reliability PPAP Capable
