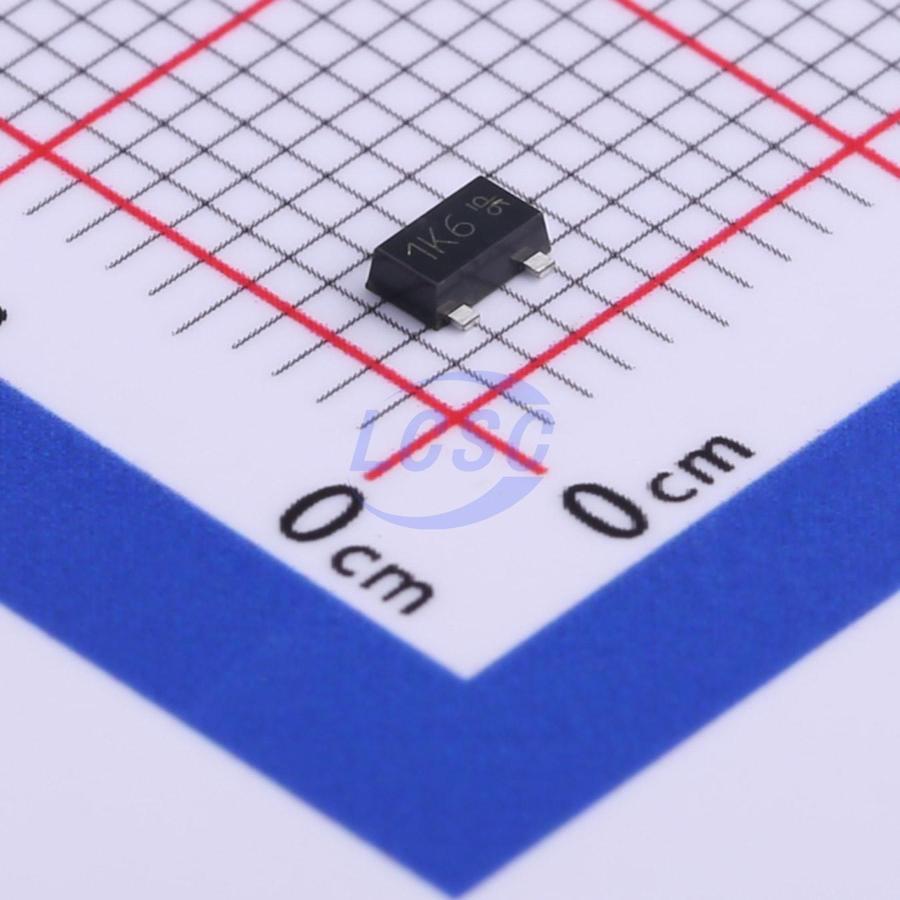

ZXMS6004FFTA
1 Active High 1.3A Low Side Switch SOT-23F Power Distribution Switches, Load Drivers RoHS
SOT-23FROHS3 CompliantActive
60V N-CHANNEL SELF PROTECTED ENHANCEMENT MODE IntelliFET MOSFET
- Manufacturer
- DIODES
- Manufacturer part #
- ZXMS6004FFTA
- Store part #
- C95063
- Package / case
- SOT-23F
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27,219 in stock
#C95063
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.83 | ₹79.83 |
| 10+ | ₹65.48 | ₹654.80 |
| 30+ | ₹58.29 | ₹1,748.70 |
| 100+ | ₹51.12 | ₹5,112.00 |
| 500+ | ₹46.98 | ₹23,490.00 |
| 1,000+ | ₹44.81 | ₹44,810.00 |
1 × ₹79.83
₹79.83
excl. GST
₹94.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMS6004FFTA
₹79.83 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 1.3A
- RDS(on)
- 350mΩ
- Operating Voltage
- 60V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The DIODES™ ZXMS6004FF is a self-protected low side IntelliFET® MOSFET with logic level input. It integrates overtemperature, overcurrent, overvoltage (active clamp) and ESD protected logic level functionality. The ZXMS6004FF is ideal as a general purpose switch driven from 3.3V or 5V microcontrollers in harsh environments where standard MOSFETs are not rugged enough.
Applications
- Especially suited for loads with a high in-rush current such as lamps and motors
- All types of resistive, inductive and capacitive loads in switching applications
- μc compatible power switches for 12V and 24V DC applications
- Automotive rated
- Replaces electromechanical relays and discrete circuits
Key features
- Compact High Power Dissipation Package
- Low Input Current
- Logic Level Input (3.3V and 5V)
- Short Circuit Protection with Auto Restart
- Over Voltage Protection (Active Clamp)
- Thermal Shutdown with Auto Restart
- Overcurrent Protection
- Input Protection (ESD)
- High Continuous Current Rating
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMS6004FFQ-7#C17449053DIODES · SOT-23F | DIODES | SOT-23F | 2,700 | ₹53.30 · 2,700 in stock | View |
| ZXMS6004FF-7#C17650019DIODES · SOT-23F | DIODES | SOT-23F | On request | ₹87.58 · 0 in stock | View | |
