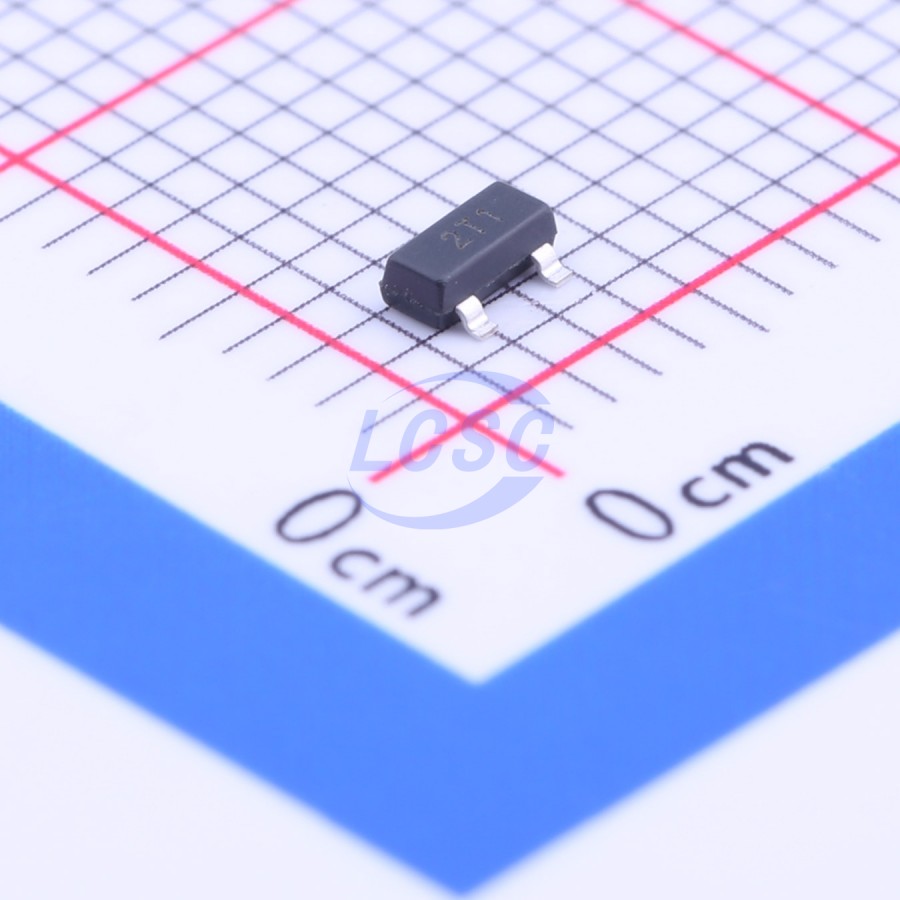

ZXTR2105FQ-7
Linear Voltage Regulator IC Positive Fixed 1 Output 15mA SOT-23
SOT-23ROHS3 CompliantActive
60V input, 5V 15mA voltage-regulating transistor
- Manufacturer
- DIODES
- Manufacturer part #
- ZXTR2105FQ-7
- Store part #
- C211385
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,545 in stock
#C211385
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.68 | ₹263.40 |
| 50+ | ₹43.78 | ₹2,189.00 |
| 150+ | ₹39.97 | ₹5,995.50 |
| 500+ | ₹35.21 | ₹17,605.00 |
| 3,000+ | ₹33.08 | ₹99,240.00 |
| 6,000+ | ₹31.80 | ₹1,90,800.00 |
5 × ₹52.68
₹263.40
excl. GST
₹310.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXTR2105FQ-7
₹263.40 for 5 + GST
Specifications
- Output Voltage
- 4.75V~5.25V
- Number of Outputs
- 1
- Operating Temperature
- -65℃~+150℃@(Tj)
- Supply Current (Iq)
- 800uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 15mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The ZXTR2105FQ monolithically integrates a transistor, zener diode and resistor to function as a linear regulator. The device regulates with a 5V nominal output at 15mA. It is designed for use in high-voltage applications where standard linear regulators cannot be used. This function is fully integrated into a SOT23 package, minimizing PCB area and reducing the number of components when compared with a multi-chip discrete solution. This linear regulator is designed to meet the stringent requirement of automotive applications.
Applications
- Supply voltage regulation for 12V to 5V Rails
- Supply voltage regulation for 24V to 5V Rails
- Supply voltage regulation for Other Customized Input Rails
Key features
- Series Linear Regulator Using Emitter-Follower Stage
- Input Voltage = 7V to 60V (For Regulated Output Voltage)
- Output Voltage = 5V ±5%
- Fully Integrated into a SOT23 Package
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability PPAP Capable
