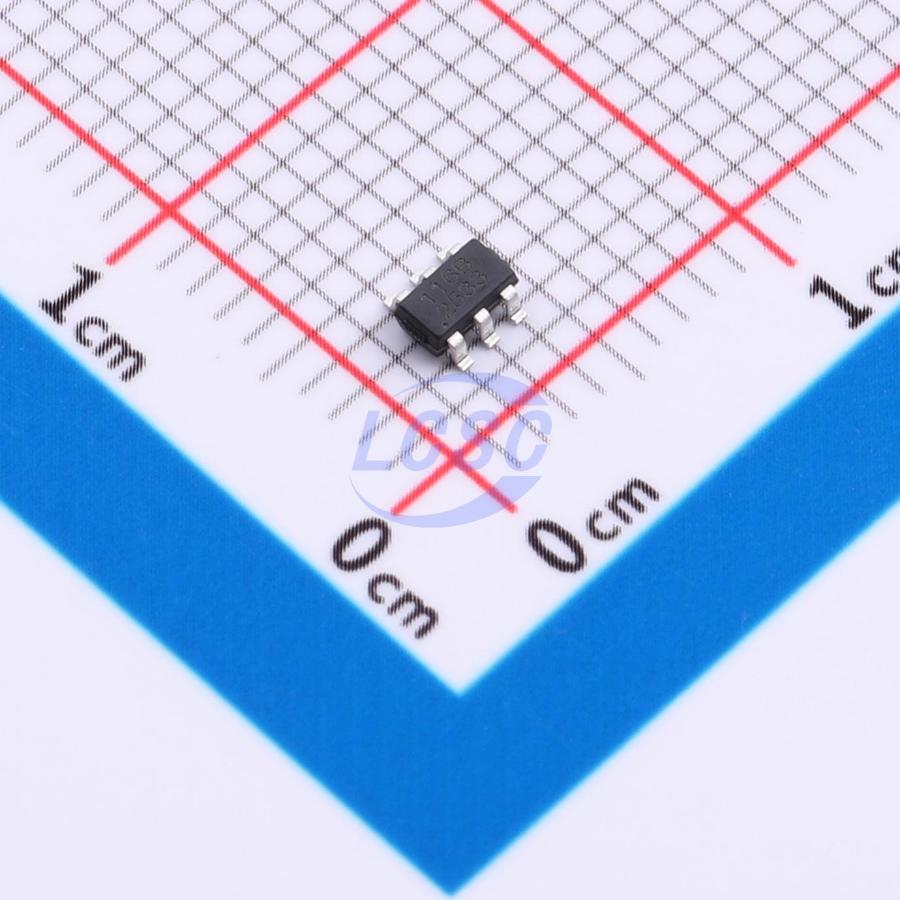

116B
2V~6.5V SOT-23-6L Motor Drivers, Controllers
- Manufacturer
- Lingyang Micro
- Manufacturer part #
- 116B
- Store part #
- C53330308
- Package / case
- SOT-23-6L
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,700 in stock
#C53330308
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.38 | ₹107.60 |
| 200+ | ₹4.22 | ₹844.00 |
| 600+ | ₹3.57 | ₹2,142.00 |
| 3,000+ | ₹3.18 | ₹9,540.00 |
| 9,000+ | ₹2.84 | ₹25,560.00 |
| 21,000+ | ₹2.66 | ₹55,860.00 |
20 × ₹5.38
₹107.60
excl. GST
₹126.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
116B
₹107.60 for 20 + GST
Specifications
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~6.5V
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 100nA
- Output Current
- 800mA
- Peak Current
- 2A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.066 g
Overview
The 116B is a driver IC specifically designed for small brushed DC motor control. It adopts an H-bridge circuit architecture with built-in P/N MOSFET power switches, supporting four control modes: forward, reverse, brake, and standby. The IC operates over a wide voltage range of 2V to 6.5V. At an ambient temperature of 25°C with VDD = 6V, it can deliver a continuous current of up to 1.2A and a peak current of up to 2A to the motor load. The IC integrates an over-temperature protection circuit: when the junction temperature exceeds 150°C (typical), the internal circuit shuts off the power transistors to stop output current; once the junction temperature drops back to the safe level of 130°C, the IC automatically resumes normal operation, preventing damage due to overheating.
Applications
- RC toy aircraft tail motor drive
- RC toy aircraft servo motor drive
- 2–4 cell dry battery toy motor drive
- Single-cell lithium battery motor drive
Key features
- Low standby current: 0.1μA
- Low operating current: 10μA
- Operating voltage range: 2~6.5V
- Maximum continuous current 1.2A, peak current 2A
- Integrated freewheeling diode
- Integrated over-temperature protection
- Package: SOT23-6L
