HLDatasheet (PDF)
1208

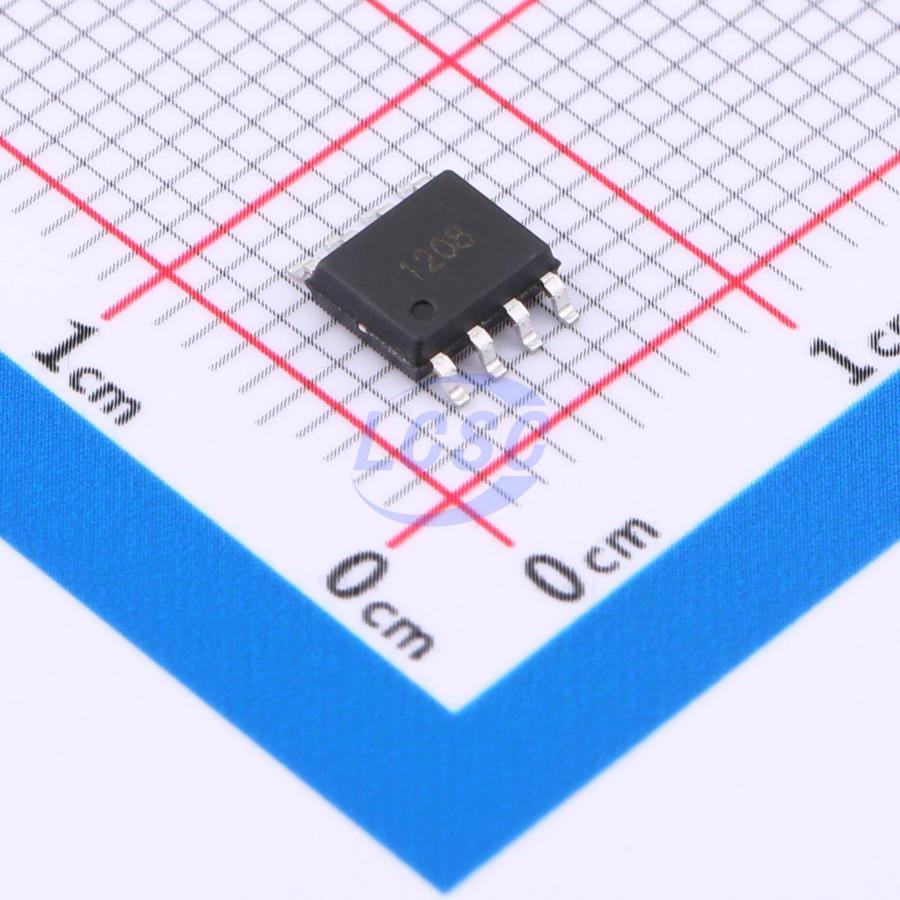

1.8V~8.5V SOP-8 Motor Drivers, Controllers RoHS
SOP-8ROHS CompliantActive
Single-channel DC motor driver
- Manufacturer
- HL
- Manufacturer part #
- 1208
- Store part #
- C7431432
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
990 in stock
#C7431432
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.13 | ₹71.30 |
| 100+ | ₹5.56 | ₹556.00 |
| 300+ | ₹4.78 | ₹1,434.00 |
| 1,000+ | ₹4.19 | ₹4,190.00 |
| 4,000+ | ₹3.92 | ₹15,680.00 |
| 8,000+ | ₹3.69 | ₹29,520.00 |
10 × ₹7.13
₹71.30
excl. GST
₹84.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
1208
₹71.30 for 10 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function
- Voltage - Supply
- 1.8V~8.5V
- Operating Temperature
- -20℃~+60℃
- Supply Current (Iq)
- 100nA
- Peak Current
- 3A
- RDS(on)
- 500mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.189 g
Overview
1208 is a single-channel DC motor driver designed by COMS technology. It integrates H bridge circuit inside. Through different input logic of two signal input terminals, It can realize four functions of motor including positive rotation, reverse rotation, brake and standby. Mainly for toys, electric toothbrush, intelligent lock and other consumer motor applications.
Applications
- toys
- electric toothbrush
- intelligent lock
- other consumer motor applications
Key features
- Wide operation voltage: VDD = 1.8V to 8.5V (2 to 5 AA or AAA batteries)
- Low standby current: 0.1uA (typical) @ VDD = 5V
- Over-temperature protection (OTSD)
- Low on resistance ~ 0.5ohm(SOP8)
- ESD 8KV(HBM)
