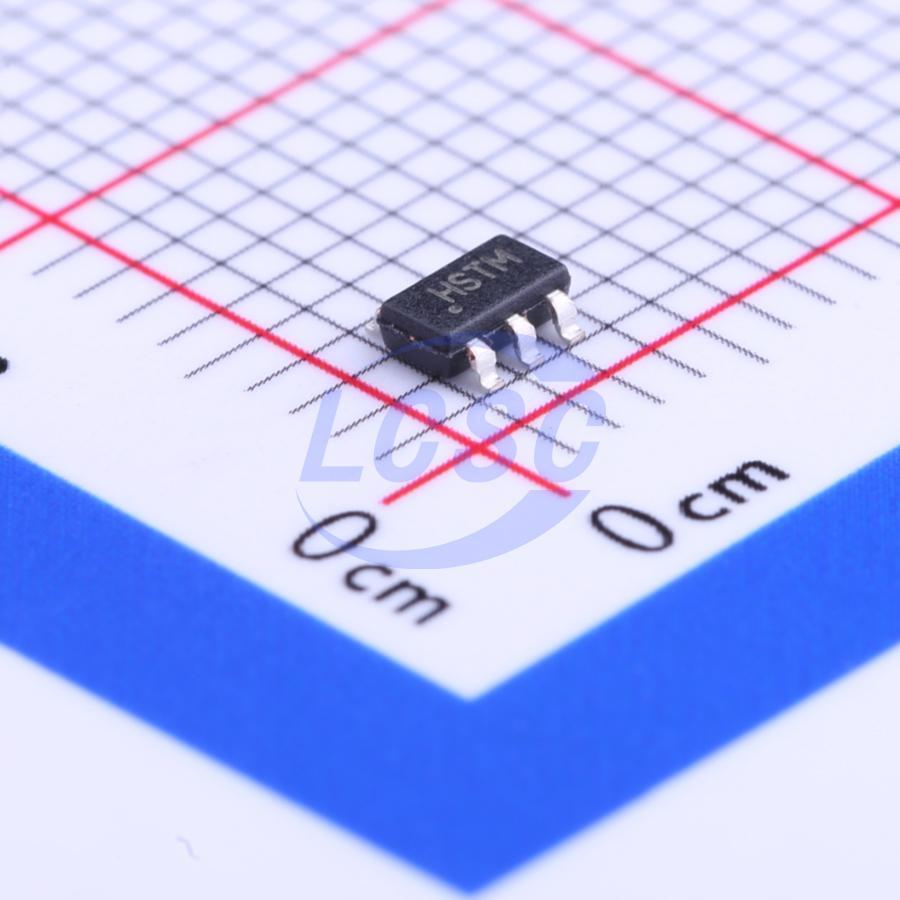

24AA025E48T-I/OT
2Kbit 400kHz I2C SOT-23-6 Memory RoHS
2K I2C Serial EEPROMs with EUI-48 or EUI-64 Node Identity
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,428 in stock
#C129895
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.03 | ₹73.03 |
| 10+ | ₹58.25 | ₹582.50 |
| 30+ | ₹50.87 | ₹1,526.10 |
| 100+ | ₹43.70 | ₹4,370.00 |
| 500+ | ₹39.35 | ₹19,675.00 |
| 1,000+ | ₹36.95 | ₹36,950.00 |
1 × ₹73.03
₹73.03
excl. GST
₹86.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA025E48T-I/OT
₹73.03 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns;3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The 24AA02E48/24AA025E48/24AA02E64/24AA025E64 (24AA02XEXX) is a 2 Kbit Electrically Erasable PROM. The device is organized as two blocks of 128x8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with maximum standby currents of only 1 μA for I-Temp. and 5 μA for E-Temp., as well as a maximum active current of 1 mA. The 24AA02XEXX also has a page write capability for up to eight bytes of data (16 bytes on the 24AA025E48/24AA025E64). The 24AA02XEXX is available in the standard 8-pin SOIC, 5-lead SOT-23, and 6-lead SOT-23 packages.
Key features
- Pre-Programmed Globally Unique, 48-bit or 64-bit Node Address
- Compatible with EUI-48TM and EUI-64TM
- Single Supply with Operation Down to 1.7V
- Low-Power CMOS Technology:
- Read current 1 mA, maximum
- Standby current: 1 μA maximum (I-Temp.), 5 μA maximum (E-Temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 3 ms, typical
- Self-Timed Erase/Write Cycle
- Page Write Buffer:
- 8-byte page (24AA02E48/24AA02E64)
- 16-byte page (24AA025E48/24AA025E64)
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- Available Packages:
- 8-lead SOIC and 5-lead SOT-23 (24AA02E48/24AA02E64)
- 8-lead SOIC and 6-lead SOT-23 (24AA025E48/24AA025E64)
- RoHS Compliant
- Available for Extended Temperature Ranges:
- Industrial (I): -40℃ to +85℃
- Automotive (E): -40℃ to +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA025E64T-I/OT#C616268MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 303 | ₹119.44 · 303 in stock | View |
 | 24AA025T-I/OT#C616269MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 99 | ₹74.60 · 99 in stock | View |
 | 24AA025UIDT-I/OT#C2061498MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 3,361 | ₹120.78 · 3,361 in stock | View |
| 24AA025E48T-E/OT#C2066000MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 2 | ₹109.86 · 2 in stock | View | |
 | 24AA025E64T-E/OT#C616267MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 10 | ₹99.25 · 10 in stock | View |
