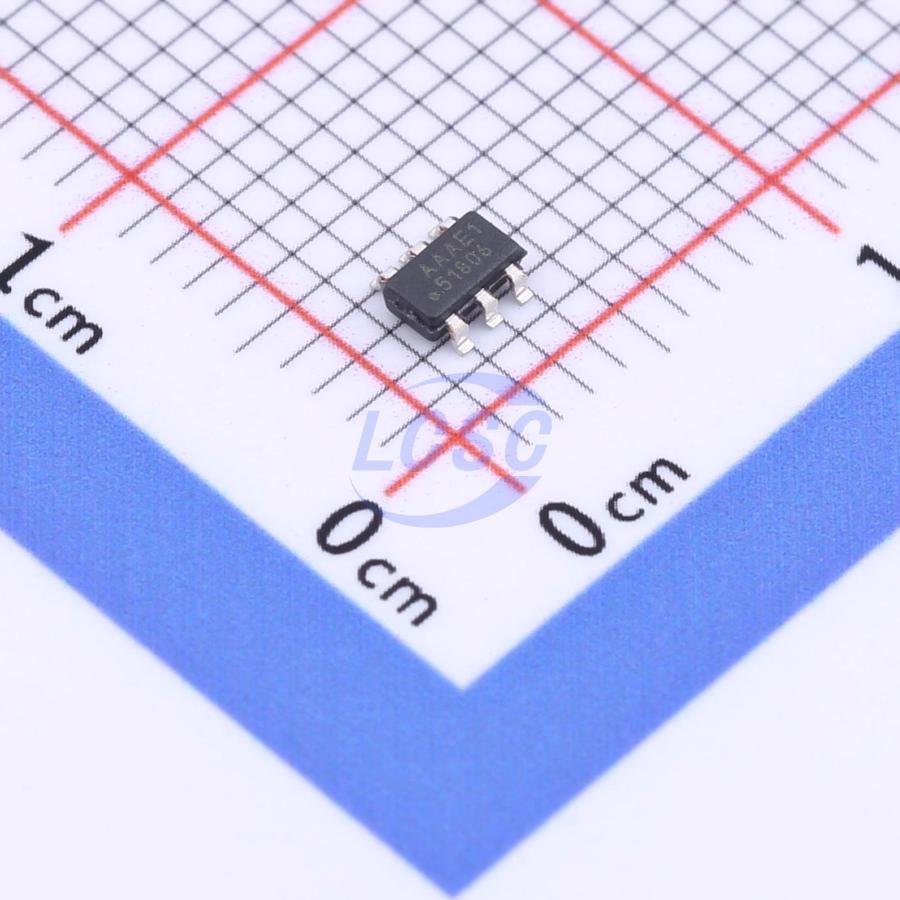

24AA025UIDT-I/OT
2Kbit 400kHz I2C SOT-23-6 Memory RoHS
2K 12C Serial EEPROMs with Unique 32-bit Serial Number
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,361 in stock
#C2061498
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹120.78 | ₹120.78 |
| 10+ | ₹100.18 | ₹1,001.80 |
| 30+ | ₹89.99 | ₹2,699.70 |
| 100+ | ₹79.79 | ₹7,979.00 |
| 500+ | ₹62.67 | ₹31,335.00 |
| 1,000+ | ₹59.63 | ₹59,630.00 |
1 × ₹120.78
₹120.78
excl. GST
₹142.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24AA025UIDT-I/OT
₹120.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function
- Memory Size
- 2Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The 24AA02UID/ 24AA025UID (24AA02XUID*) is a 2 Kbit Electrically Erasable PROM with a preprogrammed, 32-bit unique ID. The device is organized as two blocks of 128 x 8-bit memory with a 2-wire serial interface. Low-voltage design permits operation down to 1.7V, with maximum standby and active currents of only 1 μA and 1 mA, respectively. The 24AA02XUID also has a page write capability for up to eight bytes of data (16 bytes on the 24AA025UID). The 24AA02XUID is available in the standard 8-pin PDIP, 8-pin SOIC, 5-lead SOT-23, and 6-lead SOT-23 packages.
Key features
- Preprogrammed 32-Bit Serial Number:
- Unique across all UID-family EEPROMs
- Scalable to 48-bit, 64-bit, 128-bit, 256-bit, and other lengths
- Single Supply with Operation Down to 1.7V
- Low-Power CMOS Technology:
- Read current 1 mA, max.
- Standby current 1 μA, max.
- 2-Wire Serial Interface, I²C compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz and 400 kHz Clock Compatibility
- Page Write Time 3 ms, typical
- Self-Timed Erase/Write Cycle
- Page Write Buffer:
- 8-byte page (24AA02UID)
- 16-byte page (24AA025UID)
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- Available Packages:
- 8-lead PDIP, 8-lead SOIC, and 5-lead SOT-23 (24AA02UID)
- 8-lead PDIP, 8-lead SOIC, and 6-lead SOT-23 (24AA025UID)
- RoHS Compliant
- Temperature Ranges:
- Industrial (I): -40℃ to +85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24AA025E48T-I/OT#C129895MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 6,428 | ₹73.03 · 6,428 in stock | View |
 | 24AA025E64T-I/OT#C616268MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 303 | ₹119.44 · 303 in stock | View |
 | 24AA025T-I/OT#C616269MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 99 | ₹74.60 · 99 in stock | View |
 | 24AA025E64T-E/OT#C616267MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 10 | ₹99.25 · 10 in stock | View |
| 24AA025E48T-E/OT#C2066000MICROCHIP · SOT-23-6 | MICROCHIP | SOT-23-6 | 2 | ₹109.86 · 2 in stock | View | |
