MICROCHIP

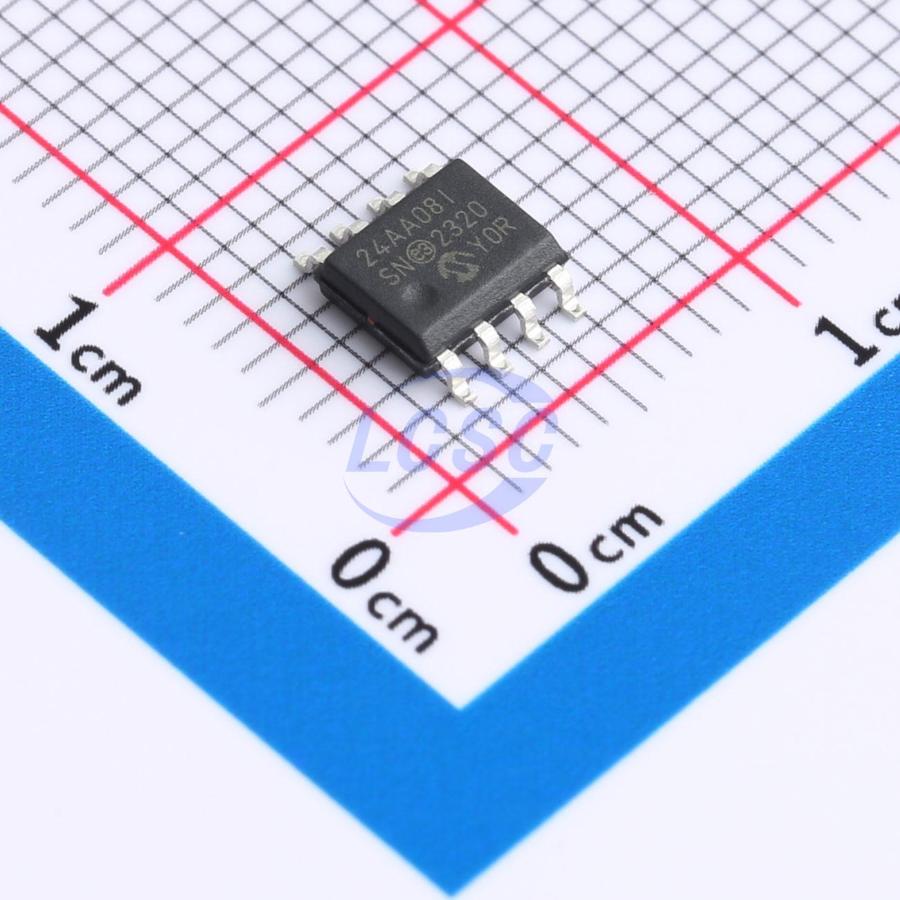

24AA08T-I/SN
8Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS3 CompliantActive
8K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,342 in stock
#C2060935
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.89 | ₹63.89 |
| 10+ | ₹50.86 | ₹508.60 |
| 30+ | ₹45.21 | ₹1,356.30 |
| 100+ | ₹38.04 | ₹3,804.00 |
| 500+ | ₹34.99 | ₹17,495.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹63.89
₹63.89
excl. GST
₹75.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
24AA08T-I/SN
₹63.89 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.7V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns;3500ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The 24xxx08 is an 8-Kbit Electrically Erasable PROM. The device is organized as four blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24xxx08 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA08 and 24FC08 Devices, 2.5V for 24LC08B Devices
- Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 μA, maximum (I-temp.)
- 2-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: - Industrial (I): -40℃ to +85℃ - Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CAT24C08WI-GT3#C80801onsemi · SOIC-8 | onsemi | SOIC-8 | 3,965 | ₹50.15 · 3,965 in stock | View |
 | M24C08-FMN6TP#C322596ST · SOIC-8 | ST | SOIC-8 | 1,445 | ₹40.80 · 1,445 in stock | View |
 | M24C08-RMN6TP#C141777ST · SOIC-8 | ST | SOIC-8 | 18,140 | ₹21.01 · 18,140 in stock | View |
 | BR24T08FJ-WE2#C123061ROHM · SOIC-8 | ROHM | SOIC-8 | 2,490 | ₹33.13 · 2,490 in stock | View |
 | BR24G08FJ-3GTE2#C308608ROHM · SOIC-8 | ROHM | SOIC-8 | 1,705 | ₹29.81 · 1,705 in stock | View |
