ROHM

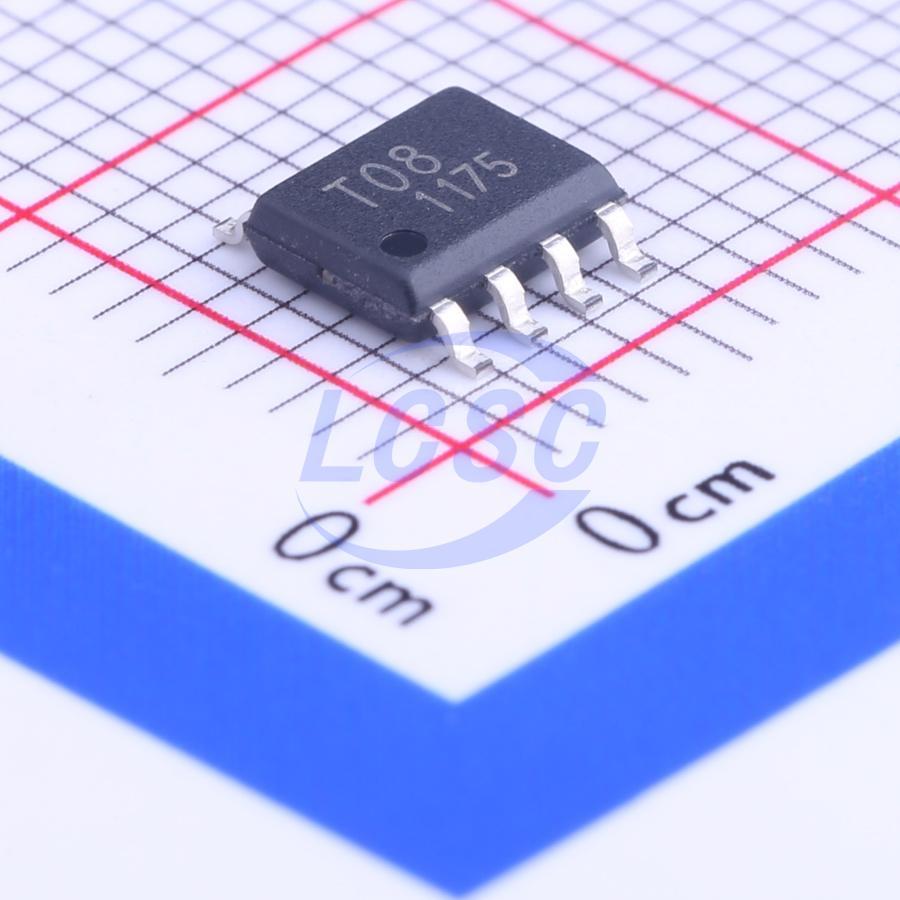

BR24T08FJ-WE2
8Kbit 400kHz I2C SOIC-8 Memory RoHS
SOIC-8ROHS CompliantActive
I²C BUS EEPROM (2-Wire)
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C123061
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.13 | ₹165.65 |
| 50+ | ₹25.68 | ₹1,284.00 |
| 150+ | ₹22.49 | ₹3,373.50 |
| 500+ | ₹18.51 | ₹9,255.00 |
| 2,500+ | ₹16.74 | ₹41,850.00 |
| 5,000+ | ₹15.66 | ₹78,300.00 |
5 × ₹33.13
₹165.65
excl. GST
₹195.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BR24T08FJ-WE2
₹165.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Built-in power-on reset (POR);Noise suppression function
- Memory Size
- 8Kbit
- Voltage - Supply
- 1.6V~5.5V;2mA
- Clock Frequency
- 400kHz
- Data Retention - TDR (Year)
- 40 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 2uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.219 g
Overview
BR24T08-W is a serial EEPROM of I²C BUS Interface Method
Key features
- Completely conforming to the world standard I2C BUS.
- All controls available by 2 ports of serial clock (SCL) and serial data (SDA)
- Other devices than EEPROM can be connected to the same port, saving microcontroller port
- 1.6V to 5.5v Single Power Source Operation most suitable for battery use
- 1.6V to 5.5V wide limit of operating voltage, possible FAST MODE 400kHz operation
- Page Write Mode useful for initial value write at factory shipment
- Self-timed Programming Cycle
- Low current Consumption
- Prevention of Write Mistake Write (Write Protect) Function added
- Prevention of Write Mistake at Low Voltage
- More than 1 million write cycles
- More than 40 years data retention
- Noise filter built in SCL / SDA terminal
- Initial delivery state FFh
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BR24G08FJ-3GTE2#C308608ROHM · SOIC-8 | ROHM | SOIC-8 | 1,705 | ₹29.81 · 1,705 in stock | View |
 | CAT24C08WI-GT3#C80801onsemi · SOIC-8 | onsemi | SOIC-8 | 3,965 | ₹50.15 · 3,965 in stock | View |
 | 24AA08T-I/SN#C2060935MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | 3,342 | ₹63.89 · 3,342 in stock | View |
 | M24C08-FMN6TP#C322596ST · SOIC-8 | ST | SOIC-8 | 1,445 | ₹40.80 · 1,445 in stock | View |
 | M24C08-RMN6TP#C141777ST · SOIC-8 | ST | SOIC-8 | 18,140 | ₹21.01 · 18,140 in stock | View |
