MICROCHIP

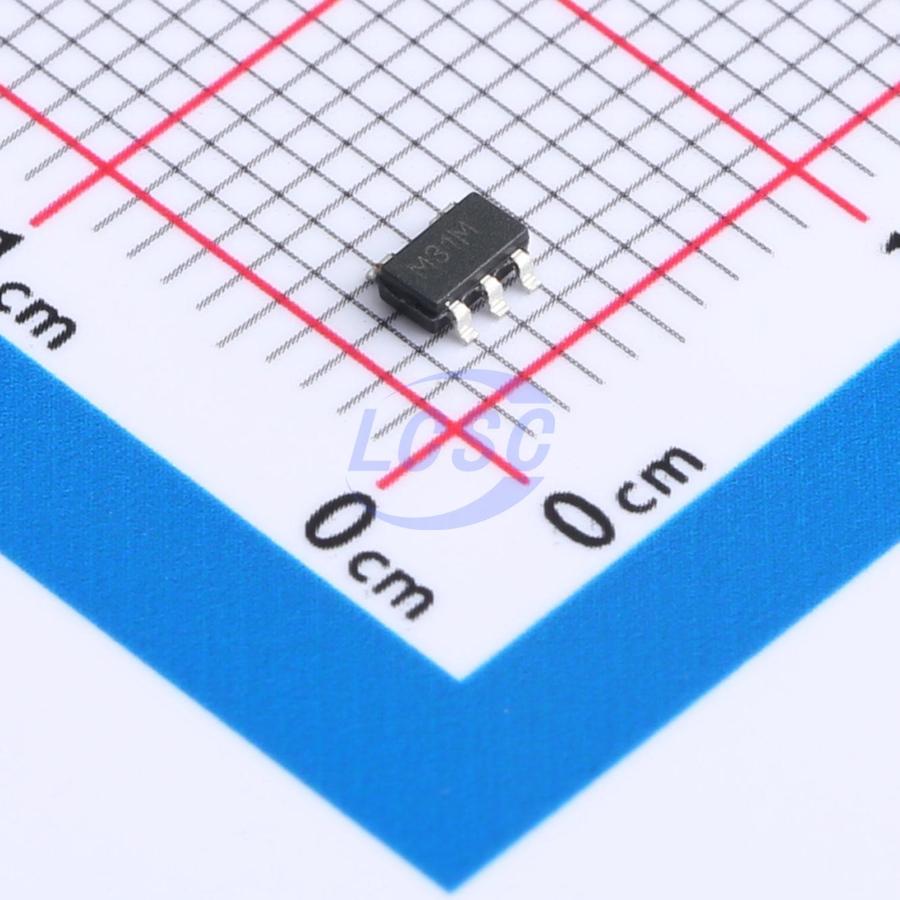

24LC04BT-I/OT
4Kbit 400kHz I2C SOT-23-5 Memory
SOT-23-5RoHSActive
4K I²C Serial EEPROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,625 in stock
#C95791
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.71 | ₹188.55 |
| 50+ | ₹29.61 | ₹1,480.50 |
| 150+ | ₹26.13 | ₹3,919.50 |
| 500+ | ₹21.80 | ₹10,900.00 |
| 3,000+ | ₹19.87 | ₹59,610.00 |
| 6,000+ | ₹18.71 | ₹1,12,260.00 |
5 × ₹37.71
₹188.55
excl. GST
₹222.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
24LC04BT-I/OT
₹188.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Hardware write protection function;Noise suppression function
- Memory Size
- 4Kbit
- Voltage - Supply
- 2.5V~5.5V;3mA
- Clock Frequency
- 400kHz
- Access Time
- 900ns
- Data Retention - TDR (Year)
- 200 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 1uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The 24XX04 is a 4-Kbit Electrically Erasable PROM (EEPROM). The device is organized as two blocks of 256x8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX04 also has a page write capability for up to 16 bytes of data.
Key features
- Single Supply with Operation down to 1.7V for 24AA04 and 24FC04 Devices, 2.5V for 24LC04B Devices
- Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 μA: maximum (l-temp.)
- Two-Wire Serial Interface, I²C Compatible
- Schmitt Trigger Inputs for Noise Suppression
- Output Slope Control to Eliminate Ground Bounce
- 100 kHz, 400 kHz and 1 MHz Compatibility
- Page Write Time: 5 ms, Maximum
- Self-Timed Erase/Write Cycle
- 16-Byte Page Write Buffer
- Hardware Write-Protect
- ESD Protection > 4,000 V
- More than 1 Million Erase/Write Cycles
- Data Retention > 200 Years
- Factory Programming Available
- RoHS Compliant
- Temperature Ranges: - Industrial (l): -40℃ to +85℃ - Extended (E): -40℃ to +125℃
- Automotive AEC-Q100 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 24LC04BHT-I/OT#C616236MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 100 | ₹56.64 · 100 in stock | View |
 | 24LC04BT-E/OT#C2061304MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 1,066 | ₹129.46 · 1,066 in stock | View |
 | 24AA04T-I/OT#C2062002MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 3,725 | ₹66.26 · 3,725 in stock | View |
 | 24AA04HT-I/OT#C616200MICROCHIP · SOT-23-5 | MICROCHIP | SOT-23-5 | 104 | ₹112.67 · 104 in stock | View |
 | HX24LC04BDBVRG#C2987266HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 1,910 | ₹12.81 · 1,910 in stock | View |
