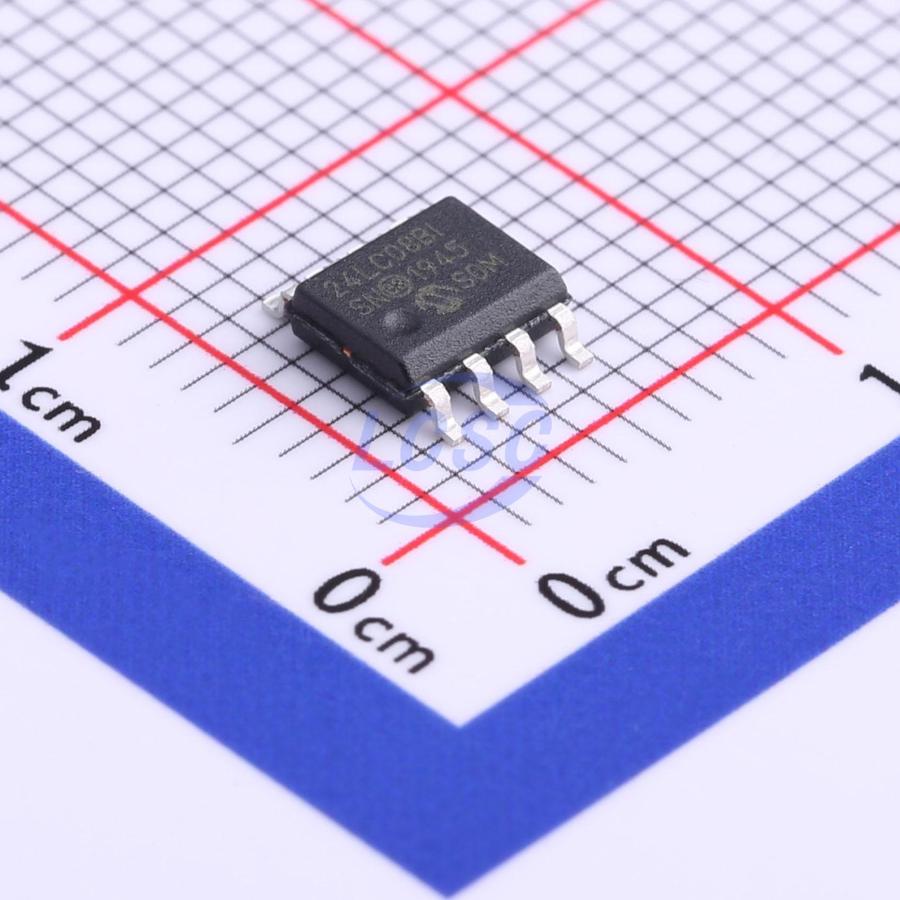

24LC08BT-I/SN

The 24AA08/24LC08B (24xxx08*) is a 8 Kbit Electrically Erasable PROM. The device is organized as four blocks of 256x8 -bit memory with a 2 -wire serial interface. Low voltage design permits operation down to 1.8V, with standby and active currents of only 1 μA and 1 mA, respectively. The 24XX08 also has a page write capability for up to 16 bytes of data. The 24XX08 is available in the standard 8 -pin PDIP, surface mount SOIC, TSSOP, 2x3 DFN and MSOP packages, and is also available in the 5 -lead SOT - 23 package.

Key features

• Single supply with operation down to 1.8V
• Low - power CMOS technology: - 1 mA active current, typical - 1 μA standby current, typical (I - temp)
• Organized as 4 blocks of 256 bytes (4x256x8)
• 2 - wire serial interface bus, I²C™ compatible
• Schmitt Trigger inputs for noise suppression
• Output slope control to eliminate ground bounce
• 100 kHz (<2.5V) and 400 kHz (≥2.5V) compatibility
• Self - timed write cycle (including auto - erase)
• Page write buffer for up to 16 bytes
• 2 ms typical write cycle time for page write
• Hardware write - protect for entire memory
• Can be operated as a serial ROM
• Factory programming (QTP) available
• ESD protection >4,000V
• 1,000,000 erase/write cycles
• Data retention >200 years
• 8 - lead PDIP, SOIC, TSSOP, DFN and MSOP packages
• 5 - lead SOT - 23 package
• Standard and Pb - free finishes available
• Available for extended temperature ranges: - Industrial (I): - 40℃ to +85℃ - Automotive (E): - 40℃ to +125℃
