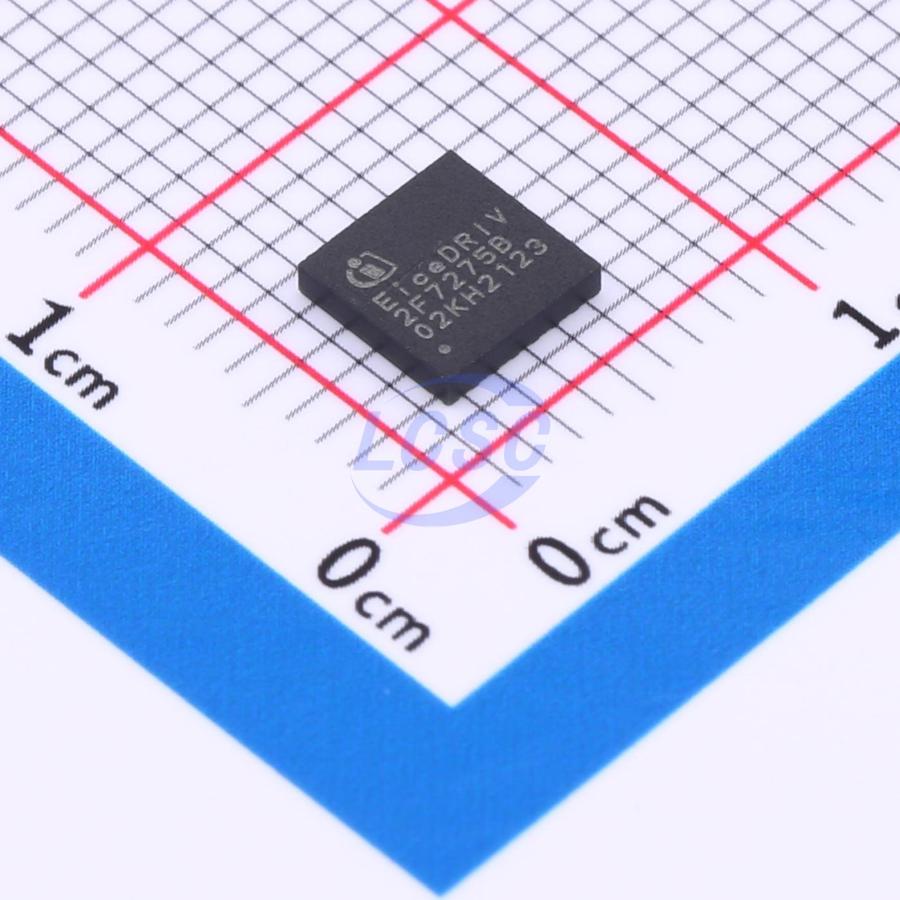

2EDF7275K
4V 8A 4A TFLGA-13 Gate Drivers RoHS
Fast, robust, dual-channel, functional and reinforced isolated Si and SiC MOSFET gate driver ICs with accurate and stable timing
- Manufacturer
- Infineon
- Manufacturer part #
- 2EDF7275K
- Store part #
- C2677063
- Package / case
- TFLGA-13
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,456 in stock
#C2677063
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹463.41 | ₹463.41 |
| 10+ | ₹388.67 | ₹3,886.70 |
| 30+ | ₹341.96 | ₹10,258.80 |
| 100+ | ₹294.17 | ₹29,417.00 |
| 500+ | ₹272.45 | ₹1,36,225.00 |
| 1,000+ | ₹263.09 | ₹2,63,090.00 |
1 × ₹463.41
₹463.41
excl. GST
₹546.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
2EDF7275K
₹463.41 for 1 + GST
Specifications
- Voltage - Supply
- 4V
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 8A
- Rise Time
- 6.5ns
- Fall Time
- 4.5ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.186 g
Overview
The dual-channel isolated EiceDRIVER™ product family is designed for the use in high-performance power conversion applications. Very strong 4 A/8 A source/sink dual-channel gate drivers increase efficiency in CoolMOS™, CoolSiC™ and OptiMOS™ MOSFET half-bridges. The low propagation delay of 37 ns, combined with highly accurate and stable timing overtemperature and production, enables further efficiency gains within and across galvanically isolated power stages or in multi-phase/multi-level topologies. The availability of functional and reinforced isolated drivers in different packages makes these a perfect fit for both primary side and (safe) secondary side control. Gate driver outputs come with a high 5 A reverse current capability and 150 V/ns CMTI robustness for high dv/dt power loops. For slower switching or driving smaller MOSFETs, 1 A/2 A peak current product variants are available as well.
