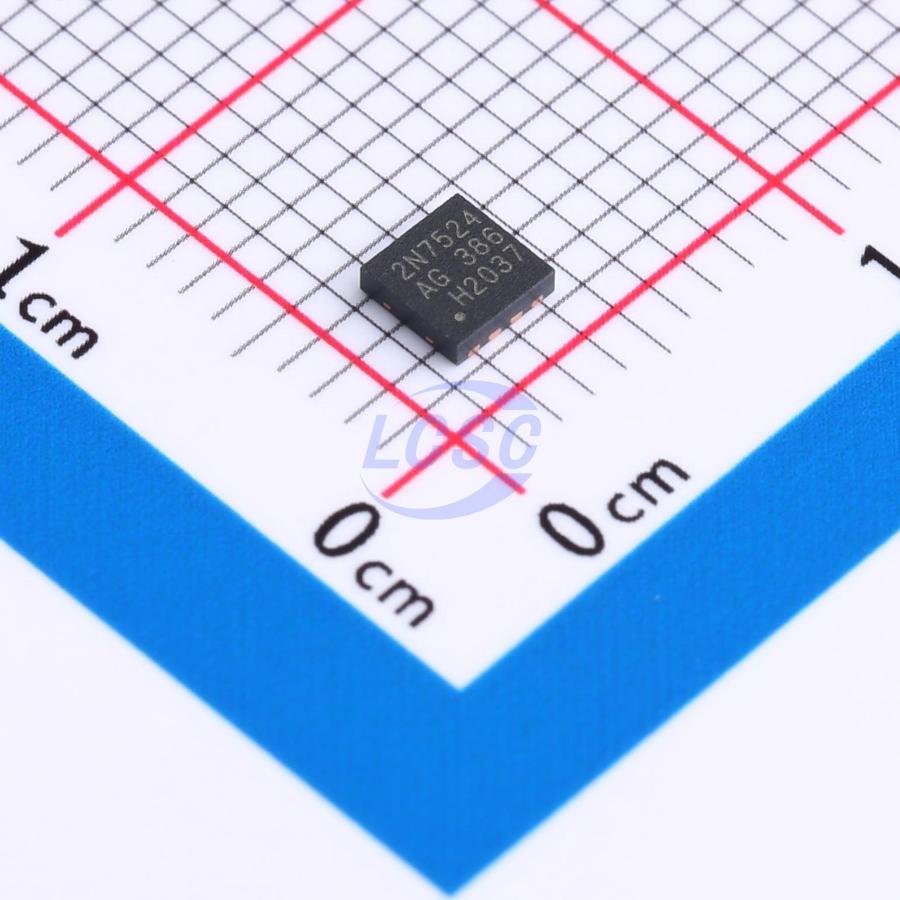

2EDN7524G

The 2EDN752x/2EDN852x is an advanced dual-channel driver. It is suited to drive logic and normal level MOSFETs and supports OptiMOS, CoolMOS, Standard Level MOSFETs, Superjunction MOSFETs, as well as IGBTs and GaN Power devices.

Applications

• Server SMPS
• TeleCom SMPS
• DC-to-DC Converter
• Bricks
• Power Tools
• Industrial SMPS
• Motor Control
• Solar SMPS

Key features

• Fast, precise, strong and compatible
• Highly efficient SMPS enabled by 5 ns fast slew rates and 17 ns propagation delay precision for fast MOSFET and GaN switching
• 1 ns channel-to-channel propagation delay accuracy enables safe use of two channels in parallel
• Two independent 5 A channels enable numerous deployment options
• Industry standard packages and pinout ease system-design upgrades
• 4.2 V and 8 V UVLO (Under Voltage Lock Out) options ensure instant MOSFET protection under abnormal conditions
• -10 V control and enable input robustness delivers crucial safety margin when driving pulse-transformers or driving MOSFETs in through hole packaging
• 5 A reverse current robustness eliminates the need for output protection circuitry
• The control and enable inputs are LV-TTL compatible (CMOS 3.3 V) with an input voltage range from -5 V to +20 V
• -10 V input pin robustness protects the driver against latch-up or electrical overstress which can be induced by parasitic ground inductances
• Each of the two outputs is able to sink and source 5 A currents utilizing a true rail-to-rail stage
• This ensures very low on resistance of 0.7 Ω up to the positive and 0.55 Ω down to the negative rail respectively
• Very tight channel to channel delay matching, typ. 1 ns, permits parallel use of two channels, leading to a source and sink capability of 10 A
• Industry leading reverse current robustness eliminates the need for Schottky diodes at the outputs and reduces the bill-of-material
• The pinout of the 2EDN family is compatible with the industry standard
• Two different control input options, direct and inverted, offer high flexibility
• Three package variants, DSO 8-pin, TSSOP 8-pin, WSON 8-pin, allow optimization of PCB board space usage and thermal characteristics
