InfineonDatasheet (PDF)

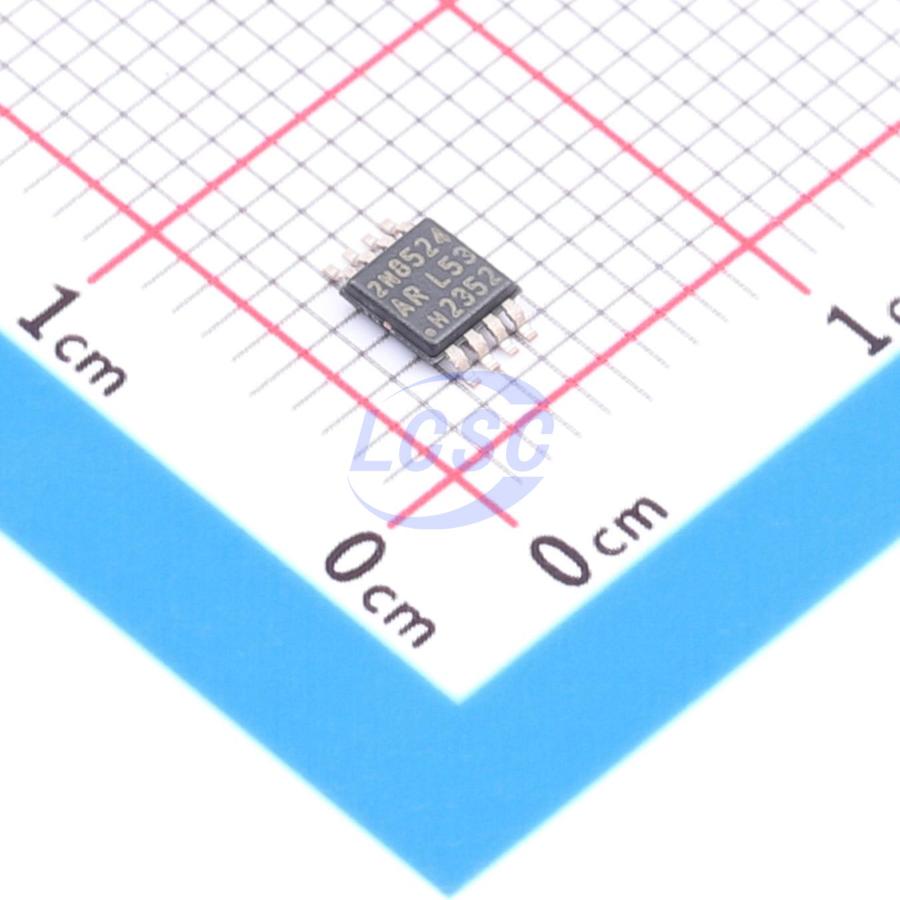

2EDN8524R
4.5V~20V 5A 5A TSSOP-8-EP-3.0mm Gate Drivers RoHS
TSSOP-8-EP-3.0mmROHS3 CompliantActive
Dual-Channel Driver
- Manufacturer
- Infineon
- Manufacturer part #
- 2EDN8524R
- Store part #
- C533089
- Package / case
- TSSOP-8-EP-3.0mm
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,112 in stock
#C533089
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.56 | ₹151.56 |
| 10+ | ₹124.68 | ₹1,246.80 |
| 30+ | ₹109.72 | ₹3,291.60 |
| 100+ | ₹93.02 | ₹9,302.00 |
| 500+ | ₹85.65 | ₹42,825.00 |
| 1,000+ | ₹82.18 | ₹82,180.00 |
1 × ₹151.56
₹151.56
excl. GST
₹178.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
2EDN8524R
₹151.56 for 1 + GST
Specifications
- Input Logic Level - Low
- 950mV~1.1V
- Input Logic Level - High
- 1.98V~2.2V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 5A
- Rise Time
- 5.3ns
- Fall Time
- 4.5ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
The 2EDN752x/2EDN852x is an advanced dual-channel driver. It is suited to drive logic and normal level MOSFETs and supports OptiMOS, CoolMOS, Standard Level MOSFETs, Superjunction MOSFETs, as well as IGBTs and GaN Power devices.
Applications
- Server SMPS
- TeleCom SMPS
- DC-to-DC Converter
- Bricks
- Power Tools
- Industrial SMPS
- Motor Control
- Solar SMPS
Key features
- Fast, precise, strong and compatible
- Highly efficient SMPS enabled by 5 ns fast slew rates and 17 ns propagation delay precision for fast MOSFET and GaN switching
- 1 ns channel-to-channel propagation delay accuracy enables safe use of two channels in parallel
- Two independent 5 A channels enable numerous deployment options
- Industry standard packages and pinout ease system-design upgrades
- 4.2 V and 8 V UVLO (Under Voltage Lock Out) options ensure instant MOSFET protection under abnormal conditions
- -10 V control and enable input robustness delivers crucial safety margin when driving pulse-transformers or driving MOSFETs in through hole packaging
- 5 A reverse current robustness eliminates the need for output protection circuitry
- The control and enable inputs are LV-TTL compatible (CMOS 3.3 V) with an input voltage range from -5 V to +20 V
- -10 V input pin robustness protects the driver against latch-up or electrical overstress which can be induced by parasitic ground inductances
- Each of the two outputs is able to sink and source 5 A currents utilizing a true rail-to-rail stage
- This ensures very low on resistance of 0.7 Ω up to the positive and 0.55 Ω down to the negative rail respectively
- Very tight channel to channel delay matching, typ. 1 ns, permits parallel use of two channels, leading to a source and sink capability of 10 A
- Industry leading reverse current robustness eliminates the need for Schottky diodes at the outputs and reduces the bill-of-material
- The pinout of the 2EDN family is compatible with the industry standard
- Two different control input options, direct and inverted, offer high flexibility
- Three package variants, DSO 8-pin, TSSOP 8-pin, WSON 8-pin, allow optimization of PCB board space usage and thermal characteristics
