VBsemi ElecDatasheet (PDF)

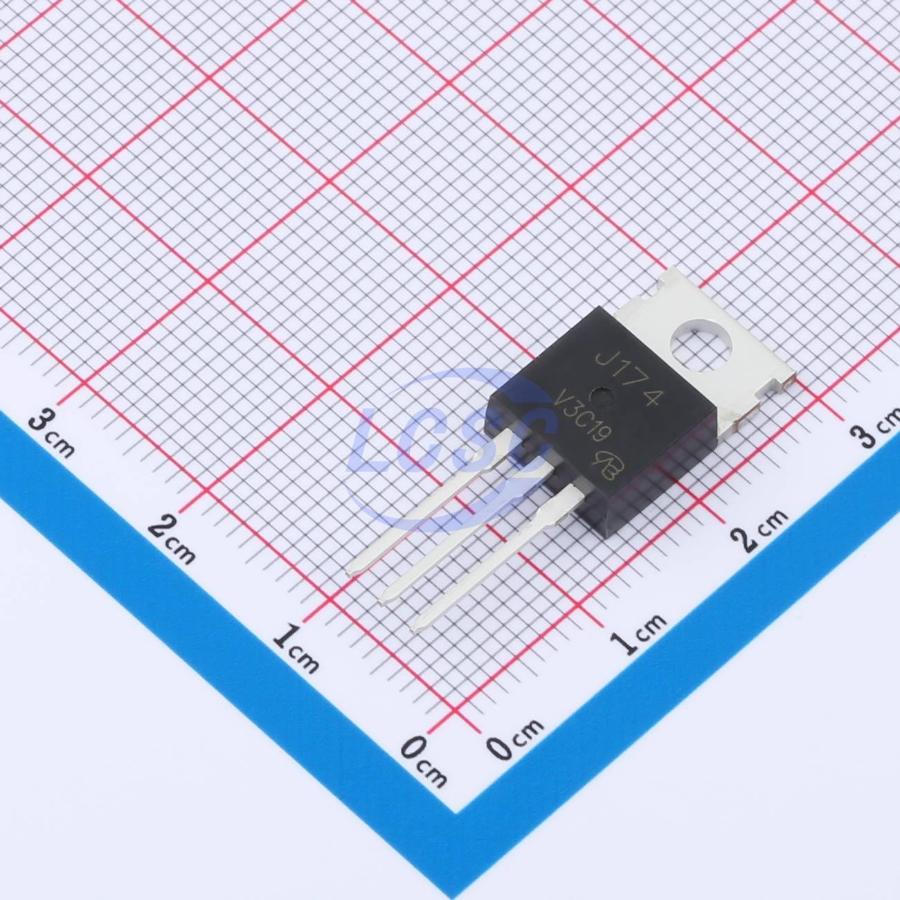

2SJ174-VB
P-Channel 60V 45A 41.7W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 45A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ174-VB
- Store part #
- C19190122
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
21 in stock
#C19190122
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.69 | ₹126.69 |
| 10+ | ₹106.05 | ₹1,060.50 |
| 50+ | ₹78.89 | ₹3,944.50 |
| 100+ | ₹68.45 | ₹6,845.00 |
| 500+ | ₹62.37 | ₹31,185.00 |
| 1,000+ | ₹59.11 | ₹59,110.00 |
1 × ₹126.69
₹126.69
excl. GST
₹149.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SJ174-VB
₹126.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.065nF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 48mΩ@10V;56mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.875 g
Overview
Applications
- Power Switch - Load Switch for High-Current Applications - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with RoHS Directive 2002/95/EC
