VBsemi ElecDatasheet (PDF)

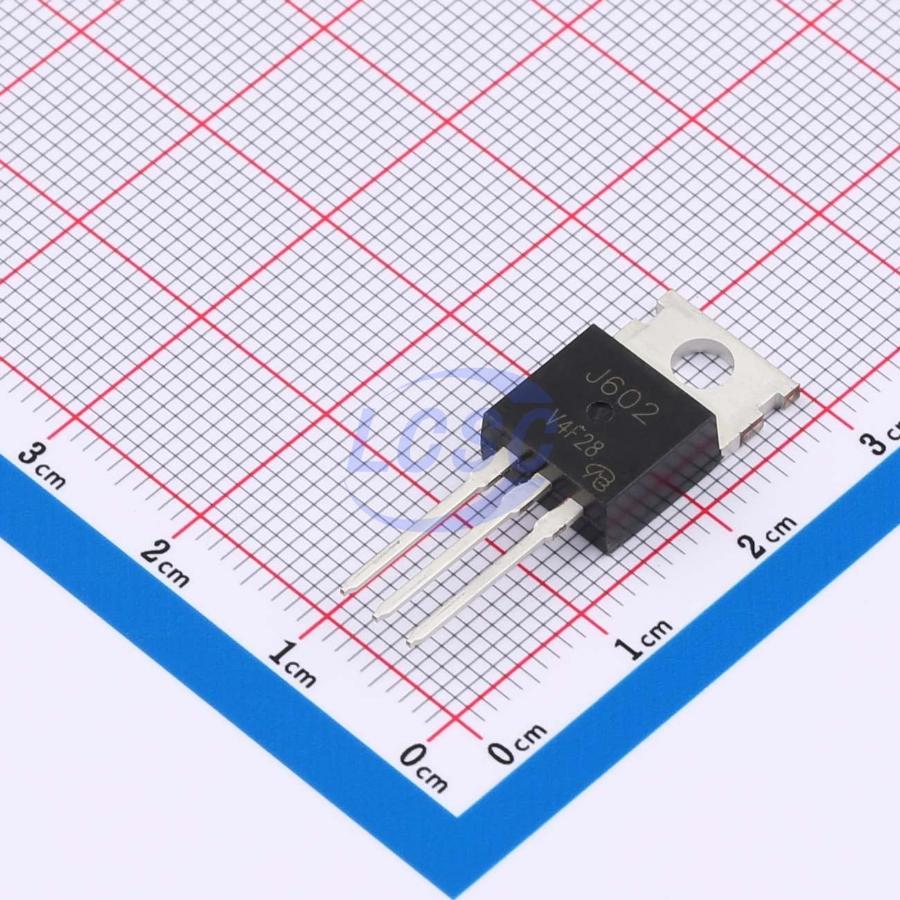

2SJ602-VB
P-Channel 60V 45A 41.7W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 45A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ602-VB
- Store part #
- C22389884
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389884
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.93 | ₹102.93 |
| 10+ | ₹82.98 | ₹829.80 |
| 50+ | ₹72.90 | ₹3,645.00 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.93
₹102.93
excl. GST
₹121.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SJ602-VB
₹102.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 2.065nF
- Pd - Power Dissipation
- 41.7W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 45A
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 48mΩ@10V;56mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.3 g
Overview
Applications
- Power switch
- Load switch for high-current applications
- DC/DC converter
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
