VBsemi ElecDatasheet (PDF)

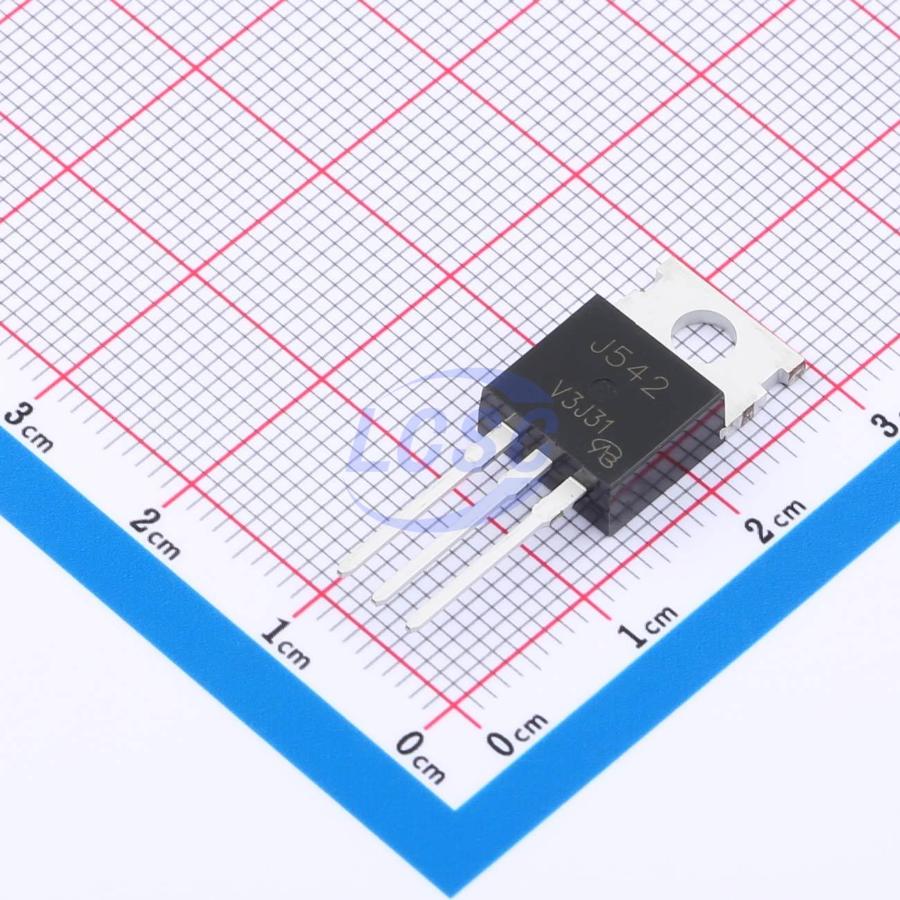

2SJ542-VB
P-Channel 60V 45A 41.7W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET P-CH 60V 45A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ542-VB
- Store part #
- C19711205
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C19711205
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.38 | ₹108.38 |
| 10+ | ₹88.19 | ₹881.90 |
| 50+ | ₹77.99 | ₹3,899.50 |
| 100+ | ₹68.02 | ₹6,802.00 |
| 500+ | ₹61.85 | ₹30,925.00 |
| 1,000+ | ₹58.87 | ₹58,870.00 |
1 × ₹108.38
₹108.38
excl. GST
₹127.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SJ542-VB
₹108.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 330pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.065nF
- Pd - Power Dissipation
- 41.7W
- Reverse Transfer Capacitance (Crss)
- 280pF
- RDS(on)
- 48mΩ@10V;56mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 67nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.08 g
Overview
Applications
- Power Switches
- Load Switches for High-Current Applications
- DC/DC Converters
Key features
- Halogen-free compliant per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
