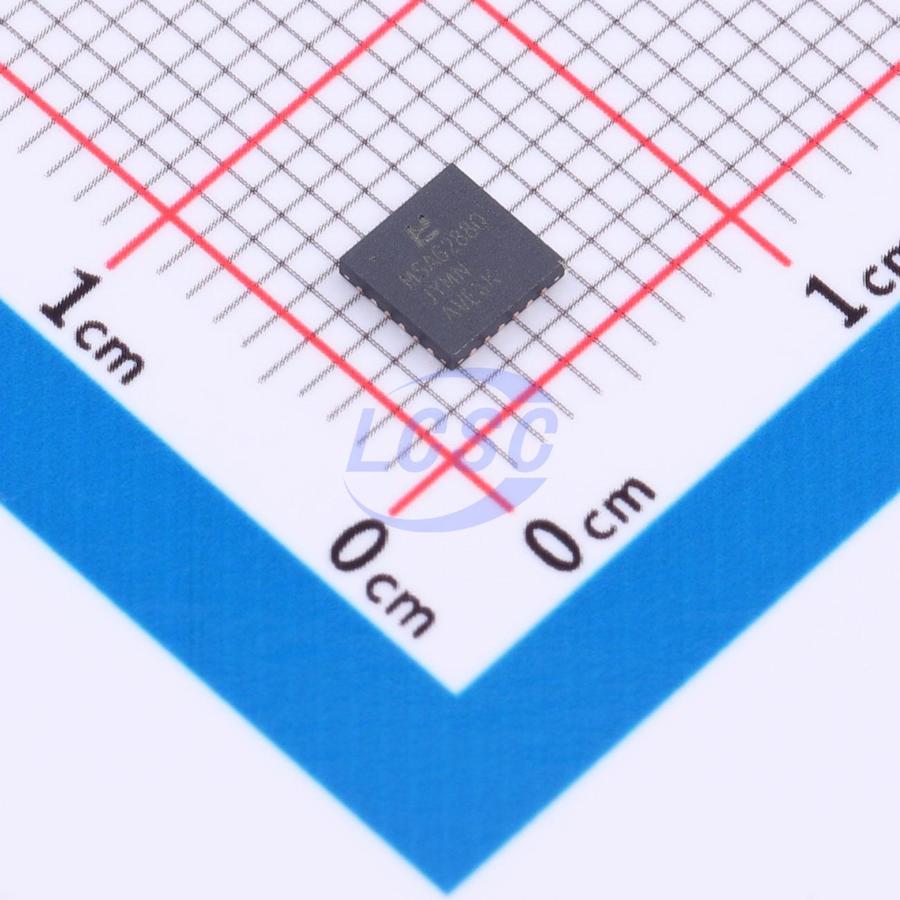

6288Q-MNS
5V~18V 1.3A 1A QFN-24(4x4) Gate Drivers
QFN-24(4x4)RoHSActive
- Manufacturer
- Minos
- Manufacturer part #
- 6288Q-MNS
- Store part #
- C49424413
- Package / case
- QFN-24(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,320 in stock
#C49424413
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.84 | ₹229.20 |
| 50+ | ₹36.53 | ₹1,826.50 |
| 150+ | ₹32.55 | ₹4,882.50 |
| 500+ | ₹27.57 | ₹13,785.00 |
| 2,500+ | ₹25.35 | ₹63,375.00 |
| 5,000+ | ₹24.01 | ₹1,20,050.00 |
5 × ₹45.84
₹229.20
excl. GST
₹270.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
6288Q-MNS
₹229.20 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 90uA
- Voltage - Supply
- 5V~18V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase;Half-Bridge
- Current - Output Low(IOL)
- 1.3A
- Rise Time
- 35ns
- Fall Time
- 15ns
- Features
- Dead-time control;Built-in bootstrap diode
- Current - Output High(IOH)
- 1A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The 6288Q-MNS is a cost-effective gate driver IC featuring a three-phase half-bridge architecture, designed for gate driving of high-power MOSFETs and IGBTs. This IC integrates logic signal processing, dead-time control, undervoltage protection, level shifting, pulse filtering, and output drive circuits, specifically optimized for drive circuits in brushless motor controllers.
Applications
- Three-phase brushless DC motor driver
- Electric vehicle controller
Key features
- High-side floating bootstrap power supply design, 150V voltage rating
- Compatible with 5V and 3.3V input logic levels
- Maximum operating frequency up to 500kHz
- Built-in dead-time control circuit
- Integrated UVLO protection for both high-side and low-side, with turn-on and shutdown thresholds of 4.4V and 4.1V respectively
- Integrated bootstrap charging diode with low on-resistance
- Output source and sink current capability of +1.0A and -1.3A respectively
- HIN active-high input for high-side HO output control
- LIN active-high input for low-side LO output control
