JSMSEMIDatasheet (PDF)

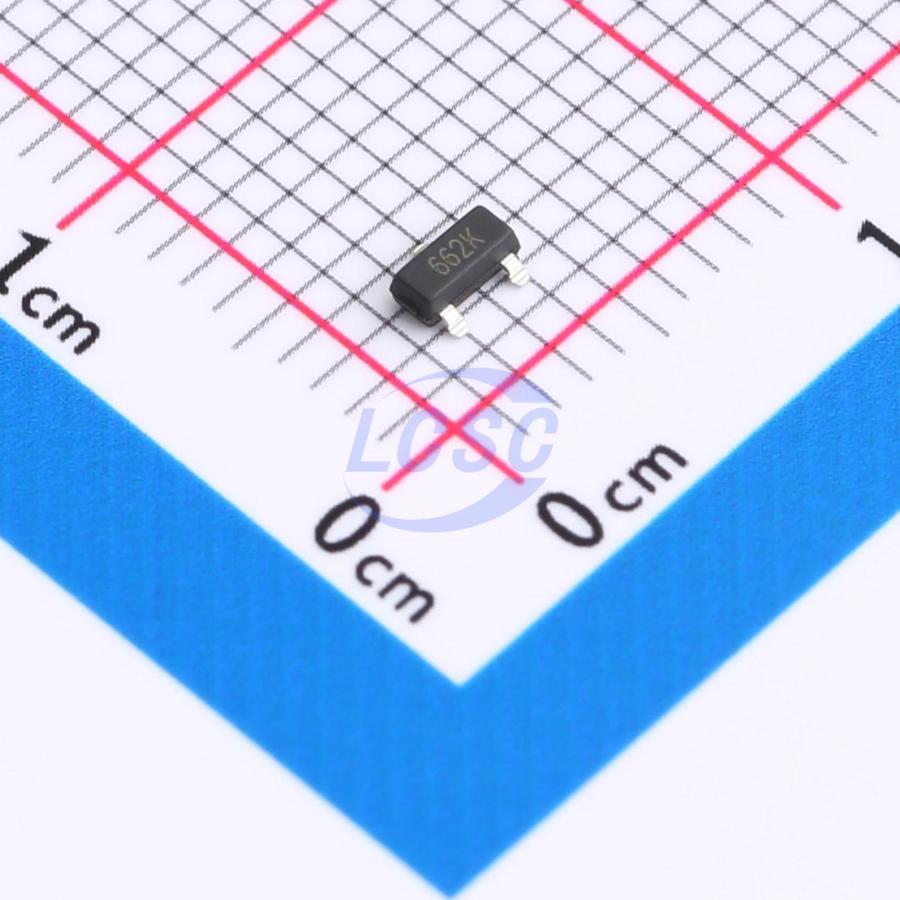

662K-JSM
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23ROHS CompliantActive
Low Dropout Linear Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 662K-JSM
- Store part #
- C41411479
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C41411479
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.32 | ₹116.00 |
| 500+ | ₹1.81 | ₹905.00 |
| 3,000+ | ₹1.52 | ₹4,560.00 |
| 6,000+ | ₹1.35 | ₹8,100.00 |
| 24,000+ | ₹1.20 | ₹28,800.00 |
| 51,000+ | ₹1.12 | ₹57,120.00 |
50 × ₹2.32
₹116.00
excl. GST
₹136.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K-JSM
₹116.00 for 50 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃@(Ta)
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 8V
- Features
- Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
The 662K-JSM is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, low dropout voltage, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.) and can deliver 250mA output current with minimal input-to-output voltage differential while maintaining good regulation. Due to the low dropout voltage and low quiescent current, these devices are particularly well-suited for battery-powered applications where extended battery life is desired, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Voltage reference sources
Key features
- High precision output voltage: ±2.5%
- Output voltage: 1.5V~5.0V (step 0.1V)
- Ultra-low quiescent current (Typ. = 6.0μA)
- Low temperature coefficient
- Maximum input voltage up to 6.5V
- Strong load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Usable as both regulator and voltage reference
- Excellent line regulation: Typ. 0.03%/V
- Package: SOT23-3
