MSKSEMIDatasheet (PDF)

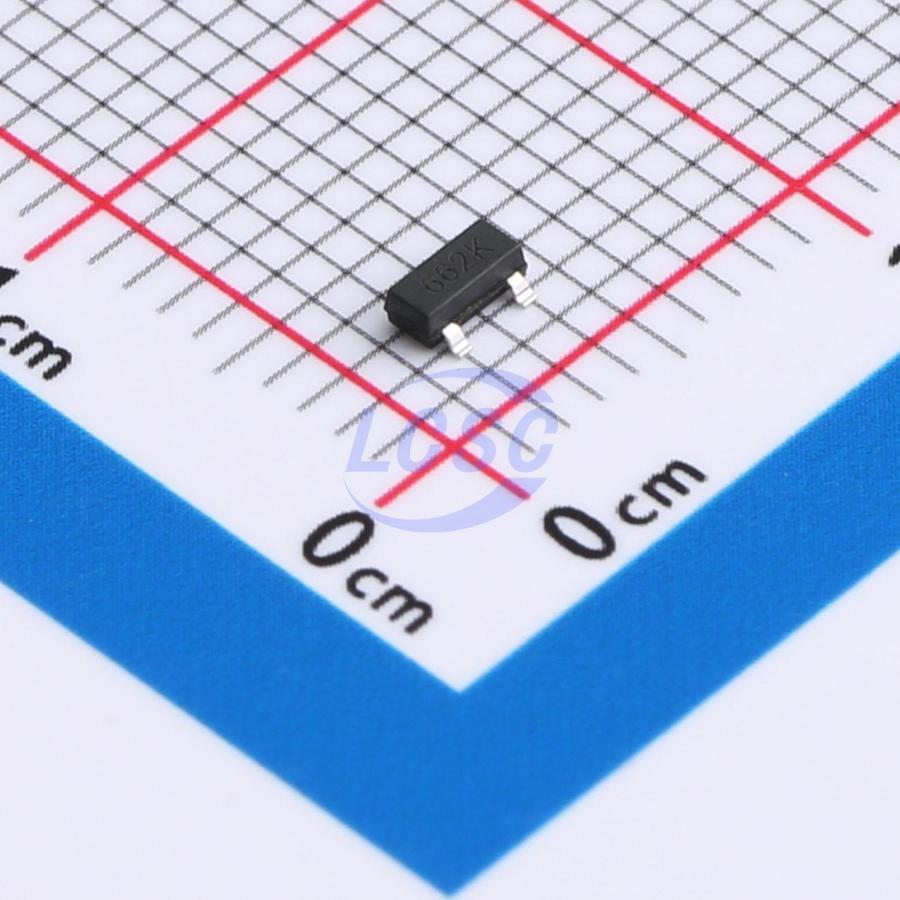

662K-MS
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-23
SOT-23RoHSActive
CMOS step-down voltage regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- 662K-MS
- Store part #
- C22459241
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C22459241
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.50 | ₹125.00 |
| 500+ | ₹1.97 | ₹985.00 |
| 3,000+ | ₹1.56 | ₹4,680.00 |
| 6,000+ | ₹1.39 | ₹8,340.00 |
| 24,000+ | ₹1.23 | ₹29,520.00 |
| 51,000+ | ₹1.15 | ₹58,650.00 |
50 × ₹2.50
₹125.00
excl. GST
₹147.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K-MS
₹125.00 for 50 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+80℃
- Supply Current (Iq)
- 7uA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 8V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.036 g
Overview
The 662K is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, low dropout, and overcurrent/short-circuit protection. These devices offer a very low quiescent current (6.0μA Typ.), capable of delivering 250mA output current at minimal input-to-output voltage differentials while maintaining excellent regulation. The combination of low dropout voltage and ultra-low quiescent current makes these devices ideal for battery-powered applications requiring extended battery life, such as computers, consumer products, and industrial equipment.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Automotive electronics
- Voltage references
Key features
- Maximum input voltage up to 8V
- High load capability: Iout = 250mA at Vin = 4.3V and Vout = 3.3V
- Usable as both regulator and voltage reference
- Good line regulation: Typ. 0.03%/V
- High accuracy output voltage: ±2.5%, output voltage: 3.3V (step 0.1V)
- Ultra-low quiescent current (Typ. = 6.0μA)
- Low temperature coefficient
- Package: SOT-23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HT7333-A-MS#C7434427MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 210 | ₹9.13 · 210 in stock | View |
 | HT7333-1-MS#C7434222MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 2,900 | ₹10.60 · 2,900 in stock | View |
 | HT7533-1#C5379078MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 21,340 | ₹5.24 · 21,340 in stock | View |
 | MHT7133S#C42403111MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 580 | ₹4.72 · 580 in stock | View |
 | TLV76033DBZR-MS#C45360155MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 3,025 | ₹11.87 · 3,025 in stock | View |
