TECH PUBLICDatasheet (PDF)

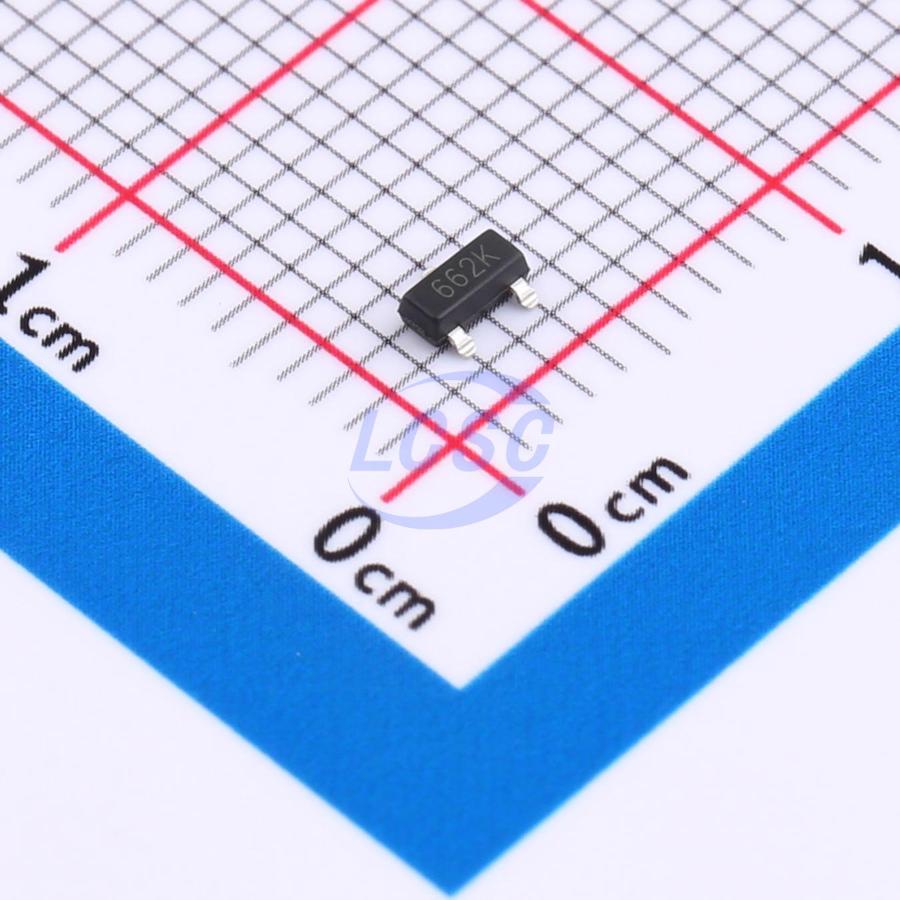

662K-TP
Linear Voltage Regulator IC Positive Fixed 1 Output SOT-23
SOT-23RoHSActive
250mA Low Dropout (LDO) Voltage Regulator IC
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 662K-TP
- Store part #
- C48639050
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C48639050
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.21 | ₹110.50 |
| 500+ | ₹1.73 | ₹865.00 |
| 3,000+ | ₹1.47 | ₹4,410.00 |
| 6,000+ | ₹1.31 | ₹7,860.00 |
| 24,000+ | ₹1.16 | ₹27,840.00 |
| 51,000+ | ₹1.10 | ₹56,100.00 |
50 × ₹2.21
₹110.50
excl. GST
₹130.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
662K-TP
₹110.50 for 50 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.034 g
Overview
The 662K-TP is a CMOS step-down voltage regulator featuring high ripple rejection, low power consumption, and low dropout characteristics, with integrated overcurrent and short-circuit protection. Its typical quiescent current is as low as 8uA, capable of delivering up to 250mA output current under minimal input-to-output voltage differential while maintaining good load regulation. Thanks to its ultra-low dropout voltage and quiescent current, this device is ideal for portable applications requiring extended battery life.
Applications
- Battery-powered systems
- Cordless telephone equipment
- Electronic devices
- Wireless control systems
- Automotive electronics
Key features
- High-precision output voltage: ±3%
- Maximum operating voltage: 6.0V
- Output voltage range: 1.5V ~ 5.0V (step 0.1V)
- Ultra-low typical quiescent current: 8uA
- High load capability: output current up to 250mA at Vin=4.3V and Vout=3.3V
- Ultra-low dropout voltage: 0.2V (at 90mA output) and 0.40V (at 150mA output)
- Excellent line regulation: typical 0.03% V
- Low temperature coefficient
- Suitable for use as voltage regulator and voltage reference
- Package: SOT23
