DIODES

74AHC00S14-13

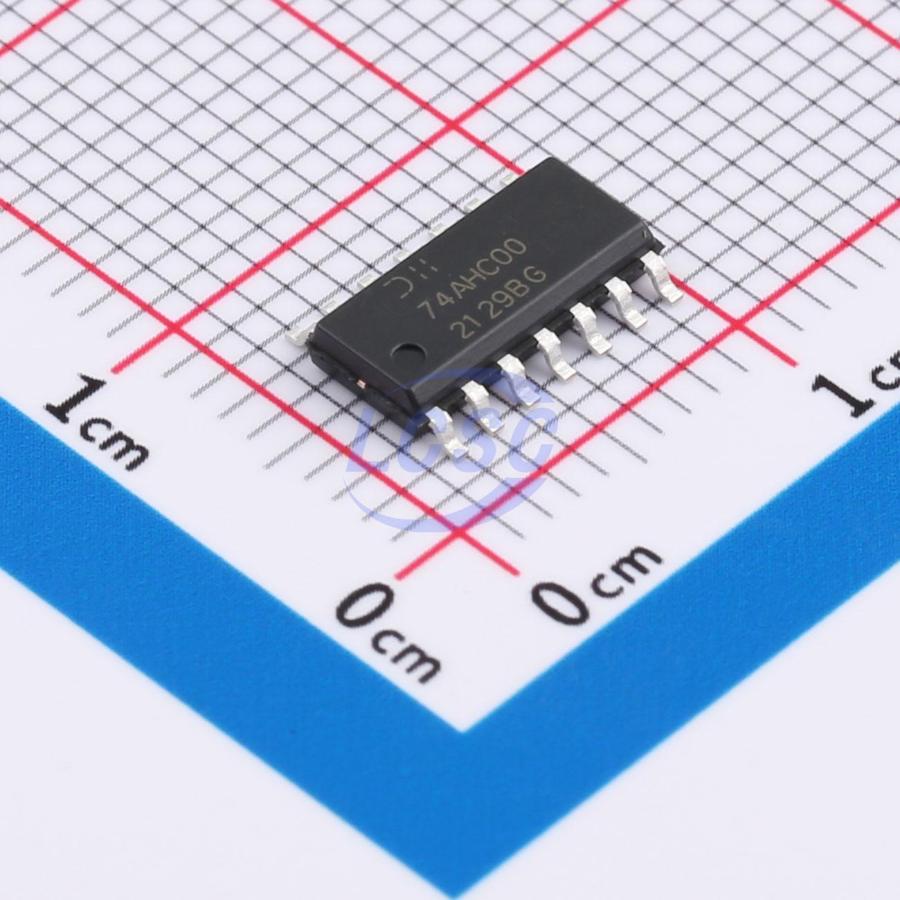

Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 20uA SO-14 Gates and Inverters RoHS

SO-14ROHS3 CompliantActive

QUADRUPLE 2-INPUT NAND GATES

Manufacturer: DIODES
Manufacturer part #: 74AHC00S14-13
Store part #: C176912
Package / case: SO-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,750 in stock

#C176912

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹25.52	₹127.60
50+	₹20.28	₹1,014.00
150+	₹18.03	₹2,704.50
500+	₹15.24	₹7,620.00
2,500+	₹14.00	₹35,000.00
5,000+	₹13.24	₹66,200.00

Quantity (min 5, multiples of 5)

5 × ₹25.52

₹127.60

excl. GST

₹150.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74AHC00S14-13

₹127.60 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 440mV~550mV
Propagation Delay: 7.5ns@5V,50pF
Features: Overvoltage-tolerant input
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.7V~3.8V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 8mA
Number of Channels: 4;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.357 g

Overview

The 74AHC00 provides provides four independent 2-input NAND gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment.

Applications

General Purpose Logic
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box

Key features

Wide Supply Voltage Range from 2.0V to 5.5V
Outputs Sink or Source 8 mA at VCC = 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs Inputs can be driven by 3.3V or 5.5V allowing for voltage translation applications.
ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II
Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
