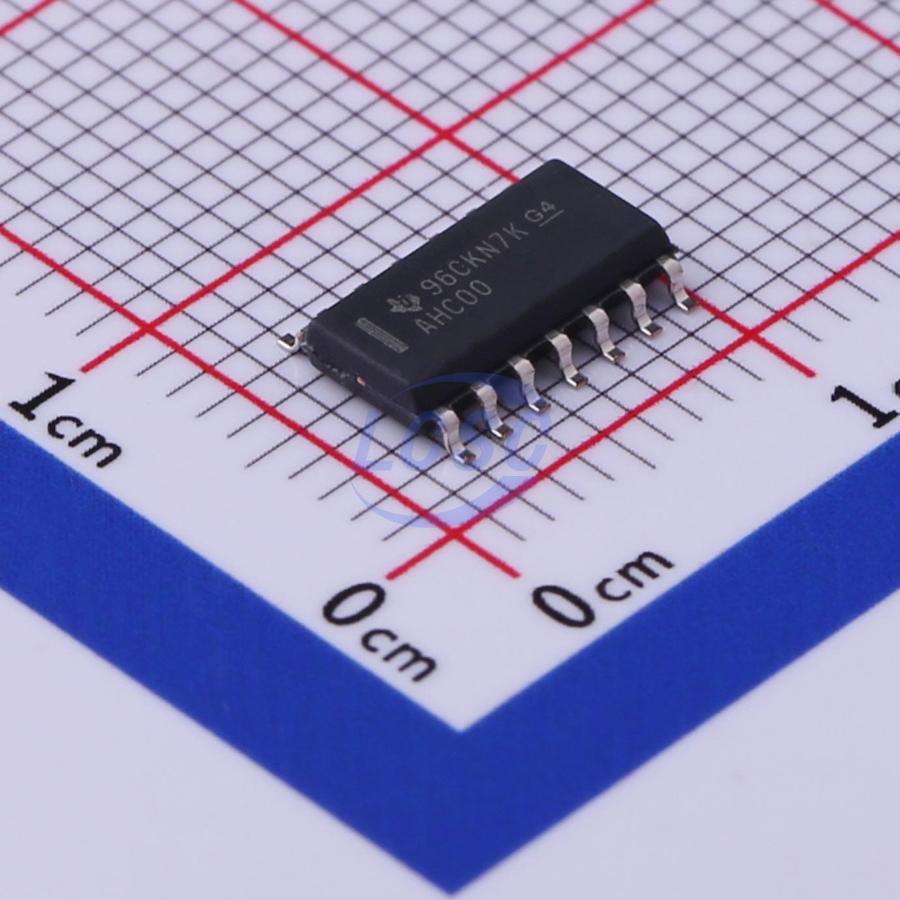

SN74AHC00DR
2V~5.5V 7.5ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC00DR
- Store part #
- C484738
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,676 in stock
#C484738
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.76 | ₹54.76 |
| 10+ | ₹43.04 | ₹430.40 |
| 30+ | ₹38.04 | ₹1,141.20 |
| 100+ | ₹31.73 | ₹3,173.00 |
| 500+ | ₹28.91 | ₹14,455.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹54.76
₹54.76
excl. GST
₹64.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHC00DR
₹54.76 for 1 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;500mV
- Propagation Delay
- 7.5ns@5V,50pF
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
ices perform the Boolean function Y = A·B(overline) or Y = A(overline) + B(overline) in posit
Key features
- Operating Range 2-V to 5.5-V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
