NexperiaDatasheet (PDF)

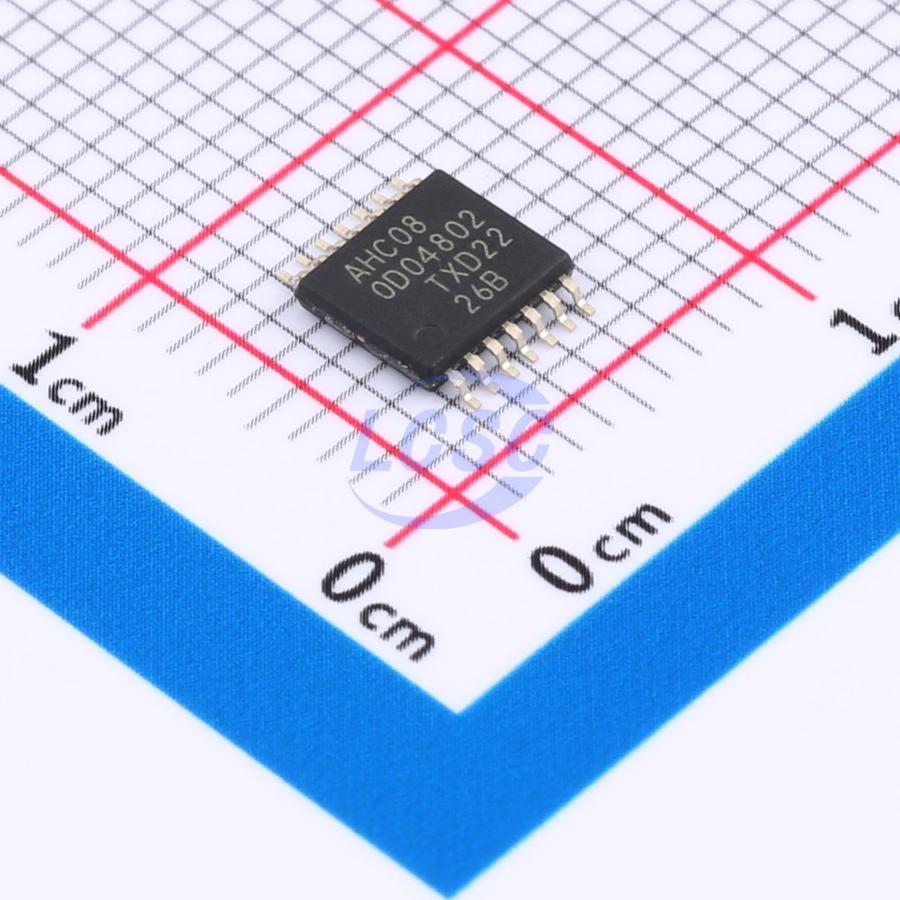

74AHC08PW-Q100J
Schmitt trigger 2V~5.5V 7.9ns@5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC08PW-Q100J
- Store part #
- C554210
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,660 in stock
#C554210
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.87 | ₹159.35 |
| 50+ | ₹25.41 | ₹1,270.50 |
| 150+ | ₹22.65 | ₹3,397.50 |
| 500+ | ₹19.20 | ₹9,600.00 |
| 2,500+ | ₹17.66 | ₹44,150.00 |
| 5,000+ | ₹16.74 | ₹83,700.00 |
5 × ₹31.87
₹159.35
excl. GST
₹188.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHC08PW-Q100J
₹159.35 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74VHC08PW-Q100J#C549108Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 100 | ₹83.61 · 100 in stock | View | |
 | SN74AHC08QPWRQ1#C2865952TI · TSSOP-14 | TI | TSSOP-14 | 150 | ₹73.77 · 150 in stock | View |
 | 74AHC08T14-13#C842279DIODES · TSSOP-14 | DIODES | TSSOP-14 | 100 | ₹22.19 · 100 in stock | View |
 | 74VHC08FT(BE)#C4153813TOSHIBA · TSSOP-14 | TOSHIBA | TSSOP-14 | 54 | ₹57.29 · 54 in stock | View |
 | 74VHC08FT(BJ)#C5379816TOSHIBA · TSSOP14B | TOSHIBA | TSSOP14B | 7,115 | ₹18.26 · 7,115 in stock | View |
