NexperiaDatasheet (PDF)

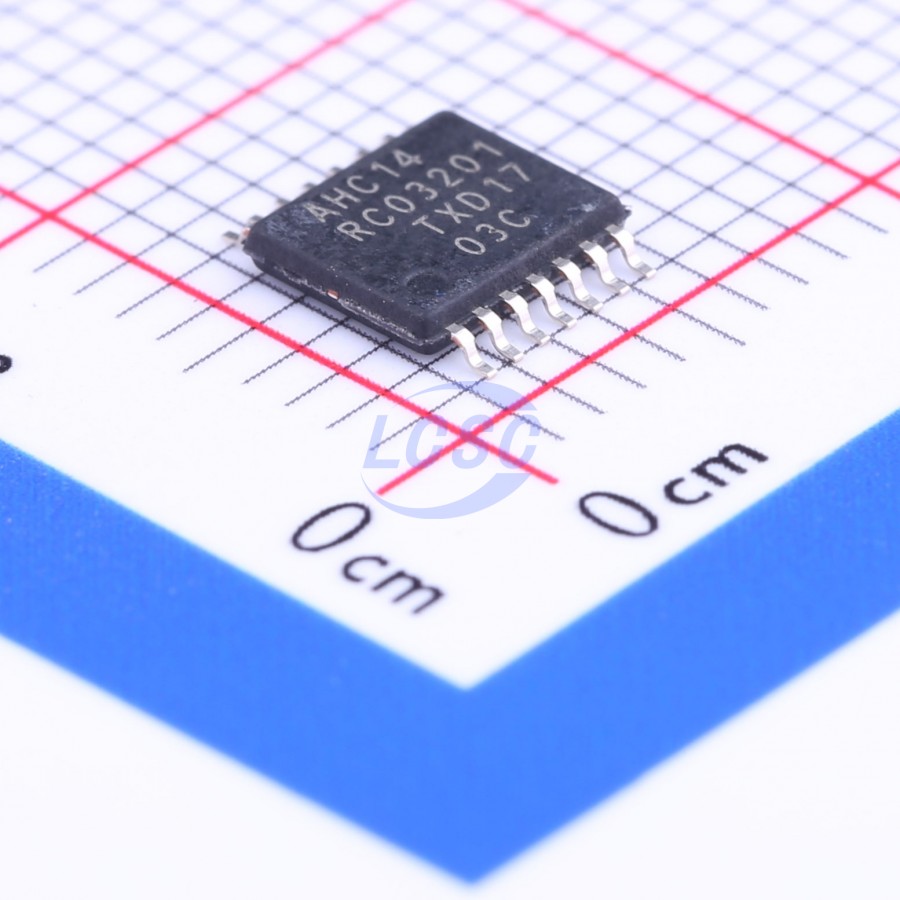

74AHC14PW,118
Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 2uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Hex inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC14PW,118
- Store part #
- C138310
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,070 in stock
#C138310
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.21 | ₹58.21 |
| 10+ | ₹44.31 | ₹443.10 |
| 30+ | ₹38.45 | ₹1,153.50 |
| 100+ | ₹31.06 | ₹3,106.00 |
| 500+ | ₹27.81 | ₹13,905.00 |
| 1,000+ | ₹25.85 | ₹25,850.00 |
1 × ₹58.21
₹58.21
excl. GST
₹68.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHC14PW,118
₹58.21 for 1 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 10.6ns@5V,50pF
- Features
- Noise suppression function
- Input Logic Level - Low
- 900mV~1.65V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2.2V~3.85V
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
The 74AHC14; 74AHCT14 is a hex inverter with Schmitt-trigger inputs. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level shifter for mixed-voltage environments
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Input levels: For 74AHC14: CMOS level; For 74AHCT14: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC14MPWREP#C2865091TI · TSSOP-14 | TI | TSSOP-14 | 32 | ₹883.91 · 32 in stock | View |
| SN74AHC14DGVR#C2869639TI · TFSOP-14-175mil | TI | TFSOP-14-175mil | 1 | ₹49.44 · 1 in stock | View | |
 | SN74AHC14PWR#C7460TI · TSSOP-14 | TI | TSSOP-14 | 3,285 | ₹46.00 · 3,285 in stock | View |
 | SN74AHC14QPWRQ1#C2867683TI · TSSOP-14 | TI | TSSOP-14 | 15 | ₹281.94 · 15 in stock | View |
 | 74VHC14MTCX#C6145onsemi · TSSOP-14 | onsemi | TSSOP-14 | 6,625 | ₹40.22 · 6,625 in stock | View |
