JSMSEMI

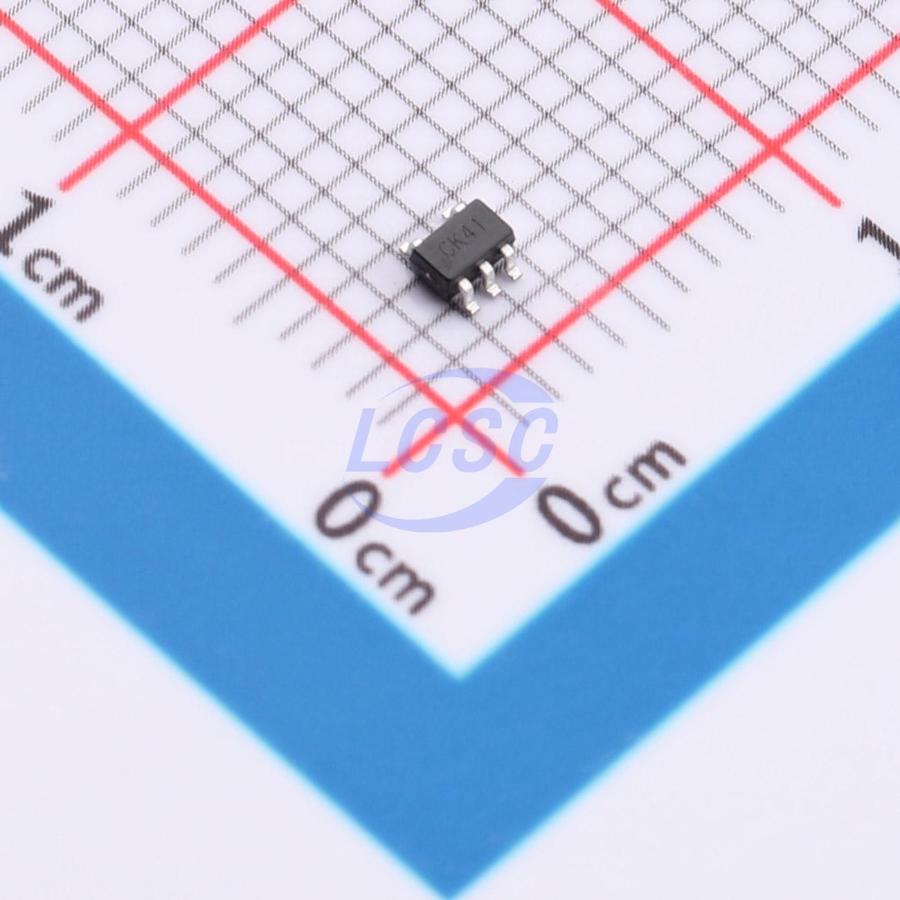

74AHC1G00GW,125-JSM

2V~5.5V 1uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G00GW,125-JSM
Store part #: C53114372
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,980 in stock

#C53114372

Stock & price checked 42 h ago

Quantity	Unit price	Pack price
5+	₹12.21	₹61.05
50+	₹9.71	₹485.50
150+	₹8.47	₹1,270.50
500+	₹7.53	₹3,765.00
3,000+	₹6.79	₹20,370.00
6,000+	₹6.40	₹38,400.00

Quantity (min 5, multiples of 5)

5 × ₹12.21

₹61.05

excl. GST

₹72.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G00GW,125-JSM

₹61.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV
Propagation Delay: 11.4ns@3.3V,50pF;7.5ns@5V,50pF
Input Logic Level - High: 1.5V;2.1V;3.85V
Input Logic Level - Low: 500mV;900mV;1.65V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;2.58V;3.94V
Quiescent Current(Iq): 1uA
Number of Channels: 1;2

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

The 74AHC1G00 and 74AHCT1G00 are high-speed silicon-gate CMOS devices providing a 2-input NAND gate function. The 74AHC1G00 features CMOS input switching levels with a supply voltage range of 2V to 5.5V. The 74AHCT1G00 features TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
