MDD(Microdiode Semiconductor)

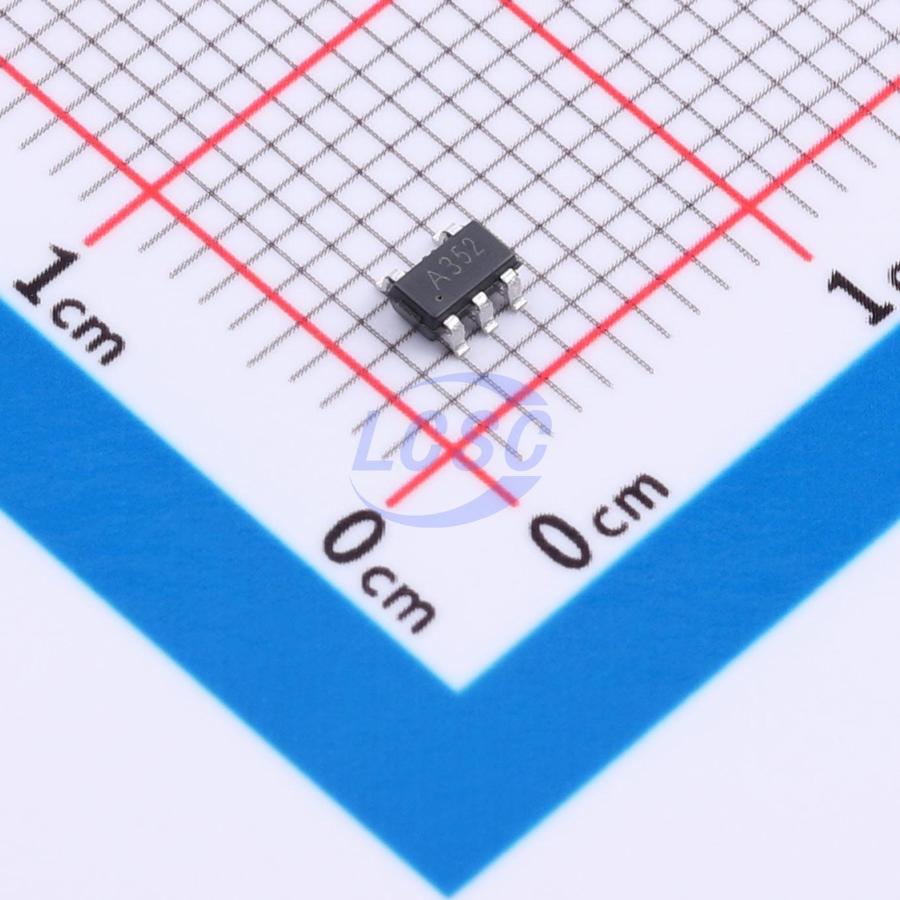

74AHC1G04GV

Schmitt trigger 2V~5.5V 3.1ns@5V,15pF 10uA 1 SOT-23-5L Gates and Inverters

SOT-23-5LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74AHC1G04GV
Store part #: C52140422
Package / case: SOT-23-5L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,407 in stock

#C52140422

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹13.88	₹13.88
10+	₹10.94	₹109.40
30+	₹9.47	₹284.10
100+	₹8.37	₹837.00
500+	₹7.49	₹3,745.00
1,000+	₹7.05	₹7,050.00

Quantity (min 1)

1 × ₹13.88

₹13.88

excl. GST

₹16.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G04GV

₹13.88 for 1 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Propagation Delay: 3.1ns@5V,15pF
Output Logic Level - Low: 550mV;100mV
Features: Noise suppression function
Input Logic Level - High: 1.5V~3.85V
Input Logic Level - Low: 500mV~1.65V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 4.4V;2.9V;1.9V
Quiescent Current(Iq): 10uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.081 g

Overview

The 74AHC1G04 and 74AHCT1G04 are single inverters. Their inputs feature overvoltage tolerance, enabling these devices to be used as level translators in mixed-voltage environments. AHC devices have CMOS input switching levels with a supply voltage range of 2.0V to 5.5V. AHCT devices have TTL input switching levels with a supply voltage range of 4.5V to 5.5V.

Key features

Wide supply voltage range: 2.0V to 5.5V
Input overvoltage tolerance up to 5.5V
High noise immunity
Low-power CMOS
Latch-up performance exceeds 200 mA
Symmetrical output impedance
Balanced propagation delay
Input levels: CMOS for 74AHC1G04; TTL for 74AHCT1G04
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
