JSMSEMI

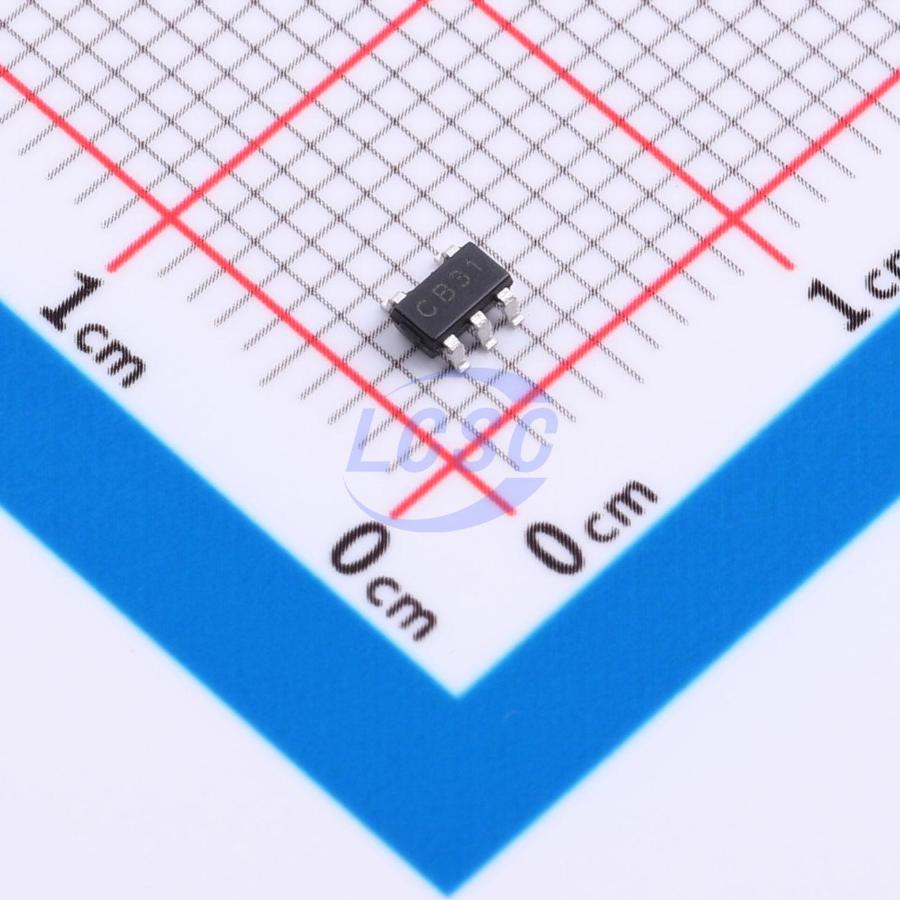

74AHC1G04GW-JSM

2V~5.5V 4.5ns@5V,50pF 40uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G04GW-JSM
Store part #: C53114436
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,880 in stock

#C53114436

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
10+	₹8.98	₹89.80
100+	₹7.14	₹714.00
300+	₹6.23	₹1,869.00
3,000+	₹5.54	₹16,620.00
6,000+	₹4.99	₹29,940.00
9,000+	₹4.71	₹42,390.00

Quantity (min 10, multiples of 10)

10 × ₹8.98

₹89.80

excl. GST

₹105.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G04GW-JSM

₹89.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Propagation Delay: 4.5ns@5V,50pF
Input Logic Level - Low: 500mV;900mV;1.65V
Input Logic Level - High: 1.5V;2.1V;3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 40uA
Number of Channels: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

The 74AHC1G04 and 74AHCT1G04 are high-speed silicon gate CMOS devices providing inverting buffer function. The 74AHC1G04 features CMOS input switching levels with a supply voltage range of 2V to 5.5V. The 74AHCT1G04 features TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
