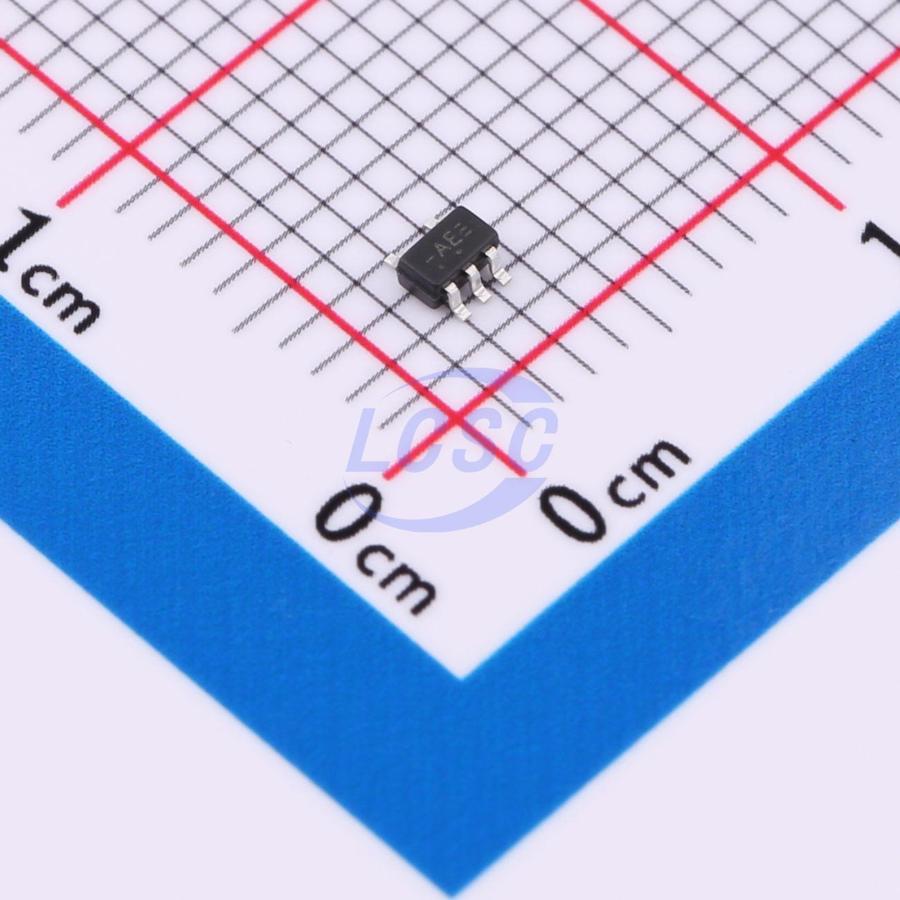

74AHC1G08GW
1uA 2V~5.5V 5.8ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G08GW
- Store part #
- C19829642
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,810 in stock
#C19829642
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.41 | ₹54.10 |
| 100+ | ₹4.29 | ₹429.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.95 | ₹17,700.00 |
| 9,000+ | ₹2.78 | ₹25,020.00 |
10 × ₹5.41
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G08GW
₹54.10 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Propagation Delay
- 5.8ns@5V,50pF
- Output Logic Level - Low
- 100mV;360mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 2~5.5V
- Low Power Current: ICC = 10μA(Max)
- High speed: tPD = 4.3ns(Typ) @ VCC = 5V
- ESD Protection Exceeds JESD22 - 2000-V Human-Body Model (A114-A), 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G08DCKR#C19829636TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 140 | ₹7.53 · 140 in stock | View |
 | 74AHC1G08SE-TP#C52098180TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
 | MC74VHC1G08DFT1G-TP#C53100502TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,900 | ₹6.28 · 2,900 in stock | View |
 | TP74AHC1G08C5#C52205187TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
 | MC74HC1G08DFT1G-TP#C52205171TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,440 | ₹5.72 · 1,440 in stock | View |
