JSMSEMI

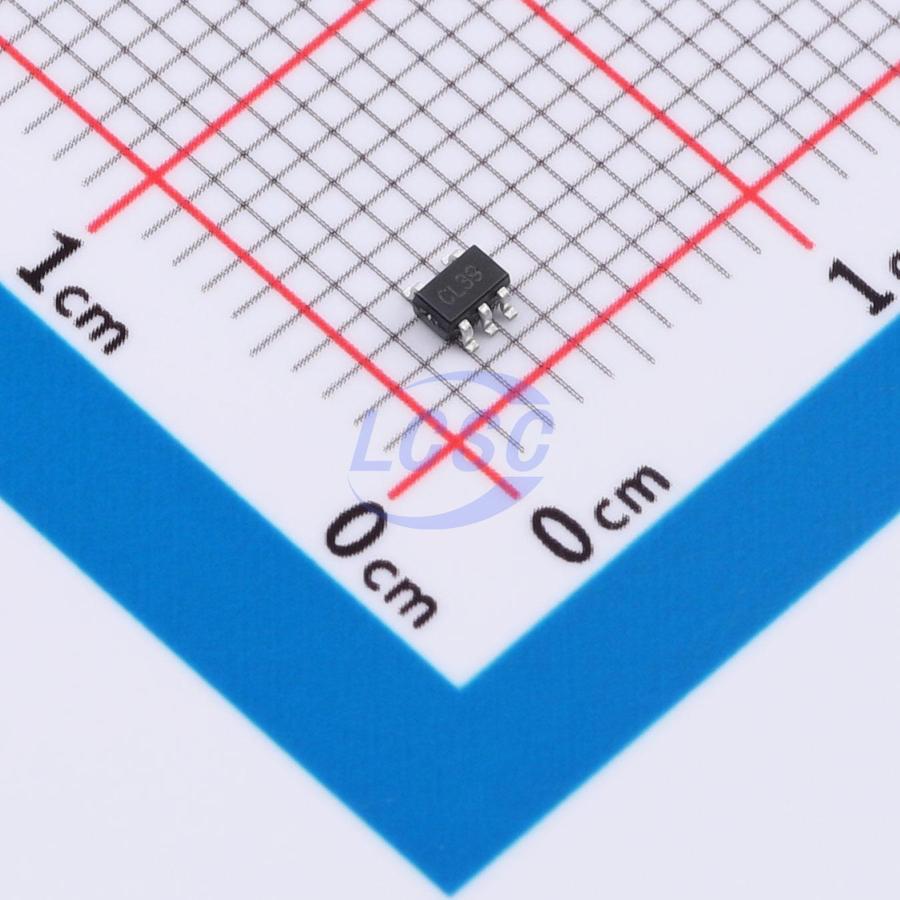

74AHC1G08GW-JSM

StandardCMOS 2V~5.5V 7.9ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G08GW-JSM
Store part #: C53114350
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,350 in stock

#C53114350

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
10+	₹8.59	₹85.90
100+	₹6.84	₹684.00
300+	₹5.95	₹1,785.00
3,000+	₹5.31	₹15,930.00
6,000+	₹4.78	₹28,680.00
9,000+	₹4.51	₹40,590.00

Quantity (min 10, multiples of 10)

10 × ₹8.59

₹85.90

excl. GST

₹101.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G08GW-JSM

₹85.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: StandardCMOS
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV
Propagation Delay: 7.9ns@5V,50pF
Input Logic Level - High: 1.5V;2.1V;3.85V
Input Logic Level - Low: 500mV;900mV;1.65V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V;3.94V
Quiescent Current(Iq): 1uA
Number of Channels: 1;2

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

The 74AHC1G08 and 74AHCT1G08 are high-speed silicon-gate CMOS devices providing a 2-input AND gate function. The 74AHC1G08 features CMOS input switching levels with a supply voltage range of 2V to 5.5V. The 74AHCT1G08 features TTL input switching levels with a supply voltage range of 4.5V to 5.5V.
