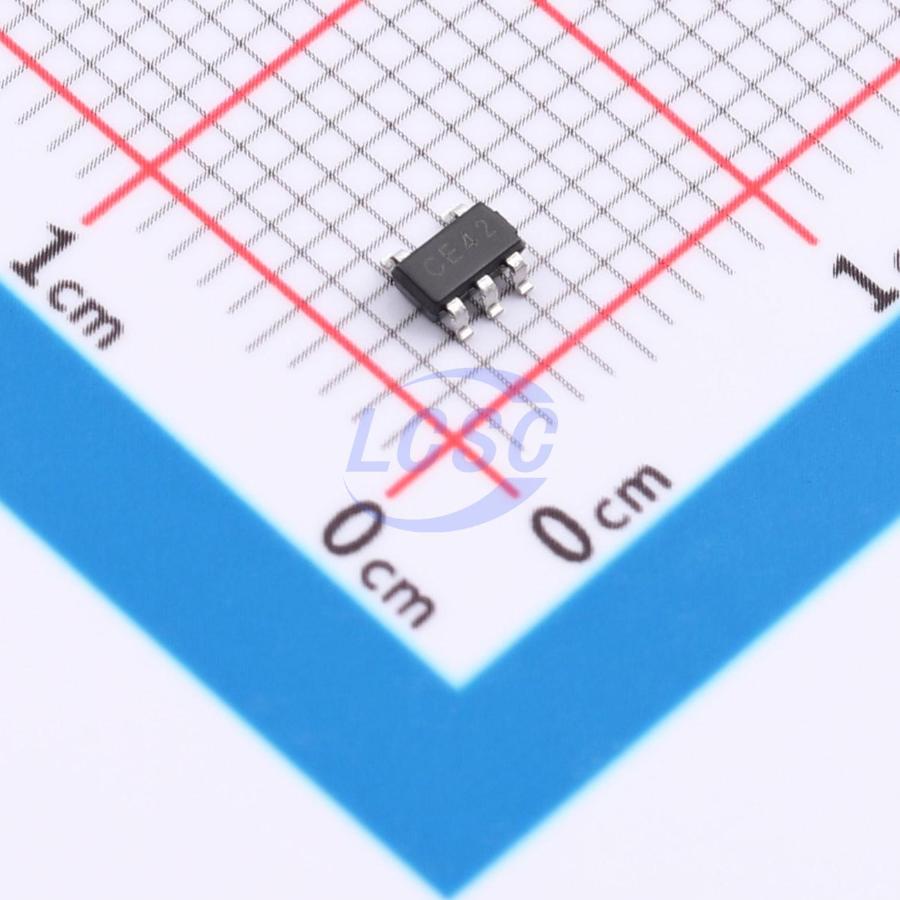

JSMSEMI

74AHC1G14GV,125-JSM

Schmitt trigger 2V~5.5V 40uA 1 SOT-23-5 Gates and Inverters RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G14GV,125-JSM
Store part #: C53114401
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,970 in stock

#C53114401

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
10+	₹7.33	₹73.30
100+	₹5.83	₹583.00
300+	₹5.08	₹1,524.00
3,000+	₹4.52	₹13,560.00
6,000+	₹4.07	₹24,420.00
9,000+	₹3.85	₹34,650.00

Quantity (min 10, multiples of 10)

10 × ₹7.33

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G14GV,125-JSM

₹73.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AHC
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 40uA
Number of Channels: 1

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

The 74AHC1G14 and 74AHCT1G14 are single Schmitt-trigger inverters with supply voltage ranges of 2~5.5V and 4.5~5.5V respectively, featuring low power consumption, an operating temperature range of -40℃ ~ +125℃, and available in SOT23-5 and SOT353 packages.
