MDD(Microdiode Semiconductor)Datasheet (PDF)

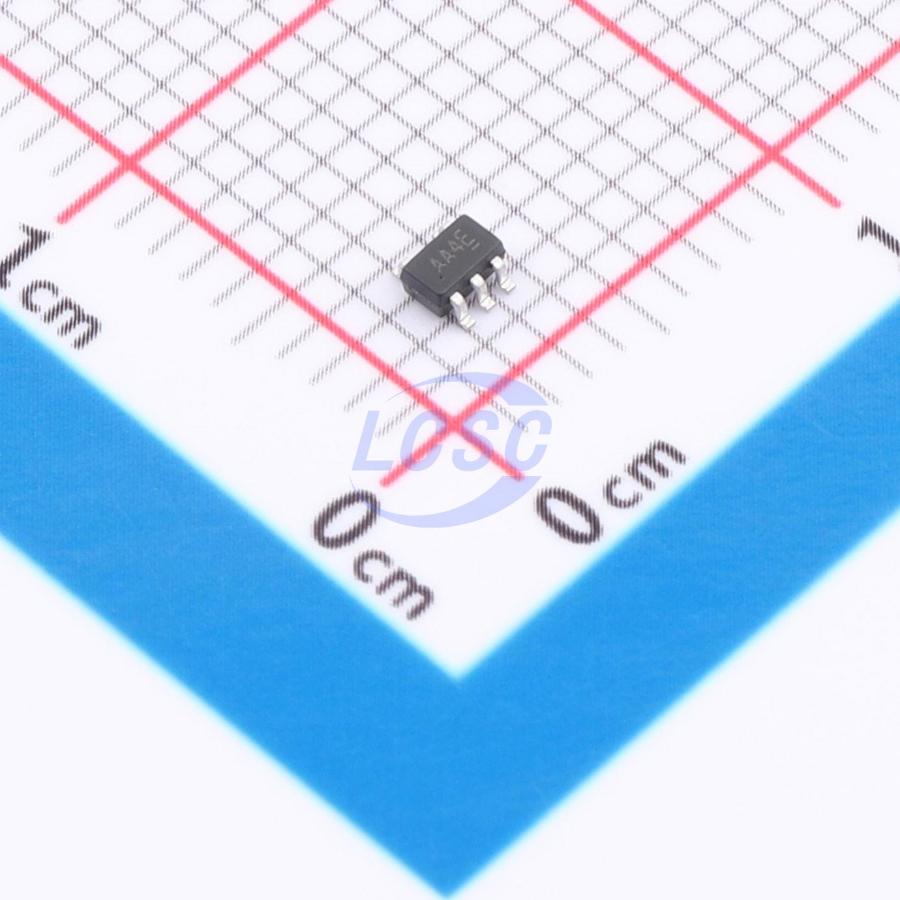

74AHC1G14GW
Schmitt trigger 10uA 2V~5.5V 1 3.9ns@5.5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHC1G14GW
- Store part #
- C53954313
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C53954313
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.46 | ₹52.30 |
| 50+ | ₹8.26 | ₹413.00 |
| 150+ | ₹7.14 | ₹1,071.00 |
| 500+ | ₹6.31 | ₹3,155.00 |
| 3,000+ | ₹5.65 | ₹16,950.00 |
| 6,000+ | ₹5.32 | ₹31,920.00 |
5 × ₹10.46
₹52.30
excl. GST
₹61.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G14GW
₹52.30 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74AHC
- Output Logic Level - High
- 2V;3V;4.5V;2.93V;4.39V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1
- Propagation Delay
- 3.9ns@5.5V,15pF
- Output Logic Level - Low
- 0V;50mV;70mV
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G14 and 74AHCT1G14 are single inverters with Schmitt-trigger inputs. The inputs are overvoltage-tolerant, allowing these devices to be used as level translators in mixed-voltage environments. AHC devices feature CMOS input switching levels with a supply voltage range of 2 V to 5.5 V. AHCT devices feature TTL input switching levels with a supply voltage range of 4.5 V to 5.5 V.
Key features
- Wide supply voltage range: 2.0 V to 5.5 V
- Input overvoltage tolerance up to 5.5 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels: CMOS level for 74AHC1G14; TTL level for 74AHCT1G14
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000 V; CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
- Multiple package options
