TECH PUBLICDatasheet (PDF)

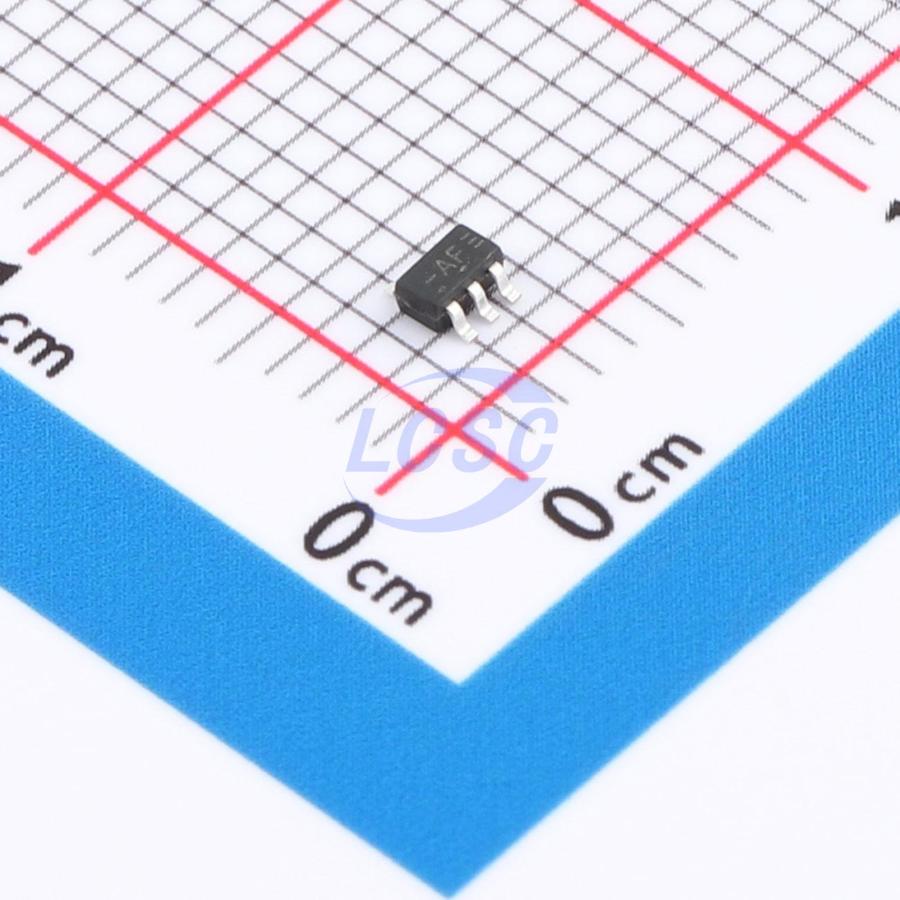

74AHC1G14SE-TP
Schmitt trigger 2V~5.5V 1uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G14SE-TP
- Store part #
- C52098179
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C52098179
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.42 | ₹64.20 |
| 100+ | ₹5.05 | ₹505.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.42
₹64.20
excl. GST
₹75.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G14SE-TP
₹64.20 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
This device contains a Schmitt-trigger inverter with the function Y = Ā. It provides inverting buffer functionality with Schmitt-trigger action. The device is capable of transforming slowly changing input signals into clean, well-defined, bounce-free output signals.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Consumer electronics and computer peripherals
Key features
- Operating voltage range: 2V~5.5V
- Low power consumption, I_CC = 1μA (max) at 5.5V
- ±8mA output drive capability at 5V
- ESD protection exceeding JESD 22 standard
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
