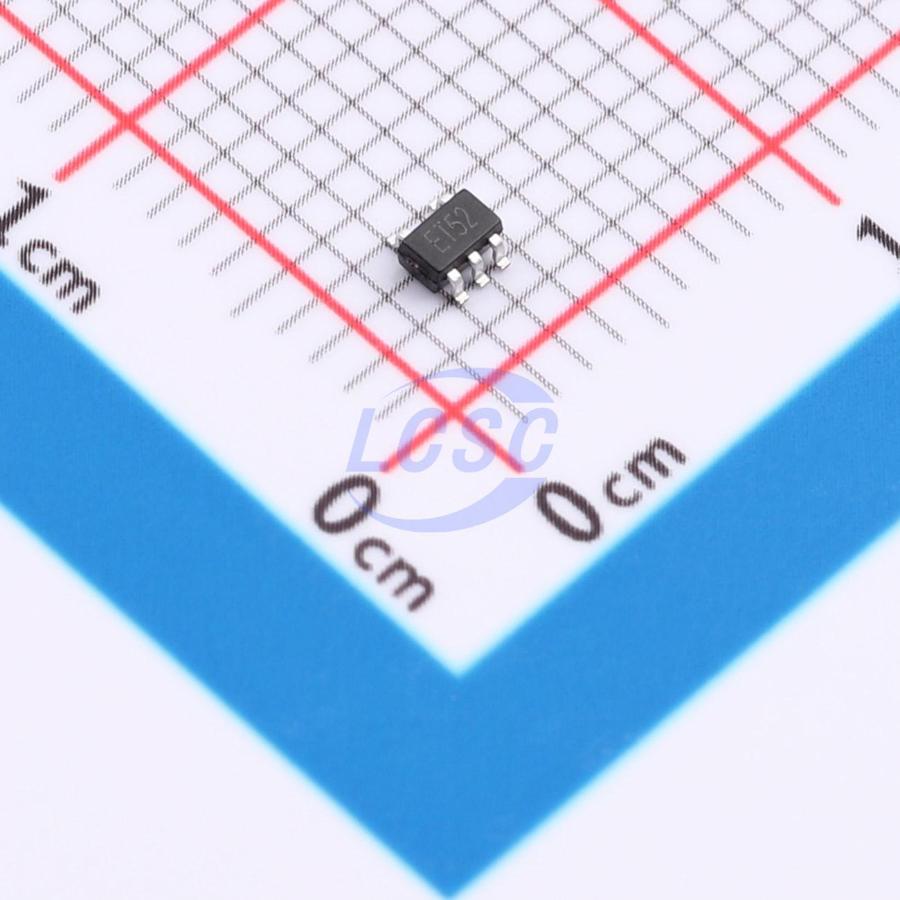

74AHC1G32GW-JSM
2V~5.5V 13ns@3.3V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74AHC1G32GW-JSM
- Store part #
- C53114439
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C53114439
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.70 | ₹63.50 |
| 50+ | ₹10.09 | ₹504.50 |
| 150+ | ₹8.80 | ₹1,320.00 |
| 500+ | ₹7.83 | ₹3,915.00 |
| 3,000+ | ₹7.05 | ₹21,150.00 |
| 6,000+ | ₹6.65 | ₹39,900.00 |
5 × ₹12.70
₹63.50
excl. GST
₹74.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G32GW-JSM
₹63.50 for 5 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 13ns@3.3V,50pF
- Output Logic Level - Low
- 100mV;440mV
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.48V;3.8V
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
74AHC1G32 and 74AHCT1G32 are single 2-input OR gate ICs.
Key features
- Supply voltage range: 74AHC1G32: 2~5.5V; 74AHCT1G32: 4.5~5.5V
- Low power consumption
- Operating temperature range: -40℃~+125℃
- Package: SOT23-5/SOT353
